良久没有写过新东西了,实在是年关在即,太忙了,抽不出身来写。

眼看着马上就要春节了,还是挤出点时间写一个和即将到来的新春有关的作用。

这个作用创意来源于立刻的新春活动,立刻在新春推出了一个将个人主页“含糊化”,仿照起雾的窗户,其他人能够在他人的“窗户”上自在涂鸦,像极了幼年冬日咱们用手指在窗户上涂涂画画的感觉,我愿称之为赛博窗花。

恰逢新春,不如咱们也完成一个这种作用的 Compose 组件,然后,为自己画上一条龙吧。

首要咱们来看下作用对比:

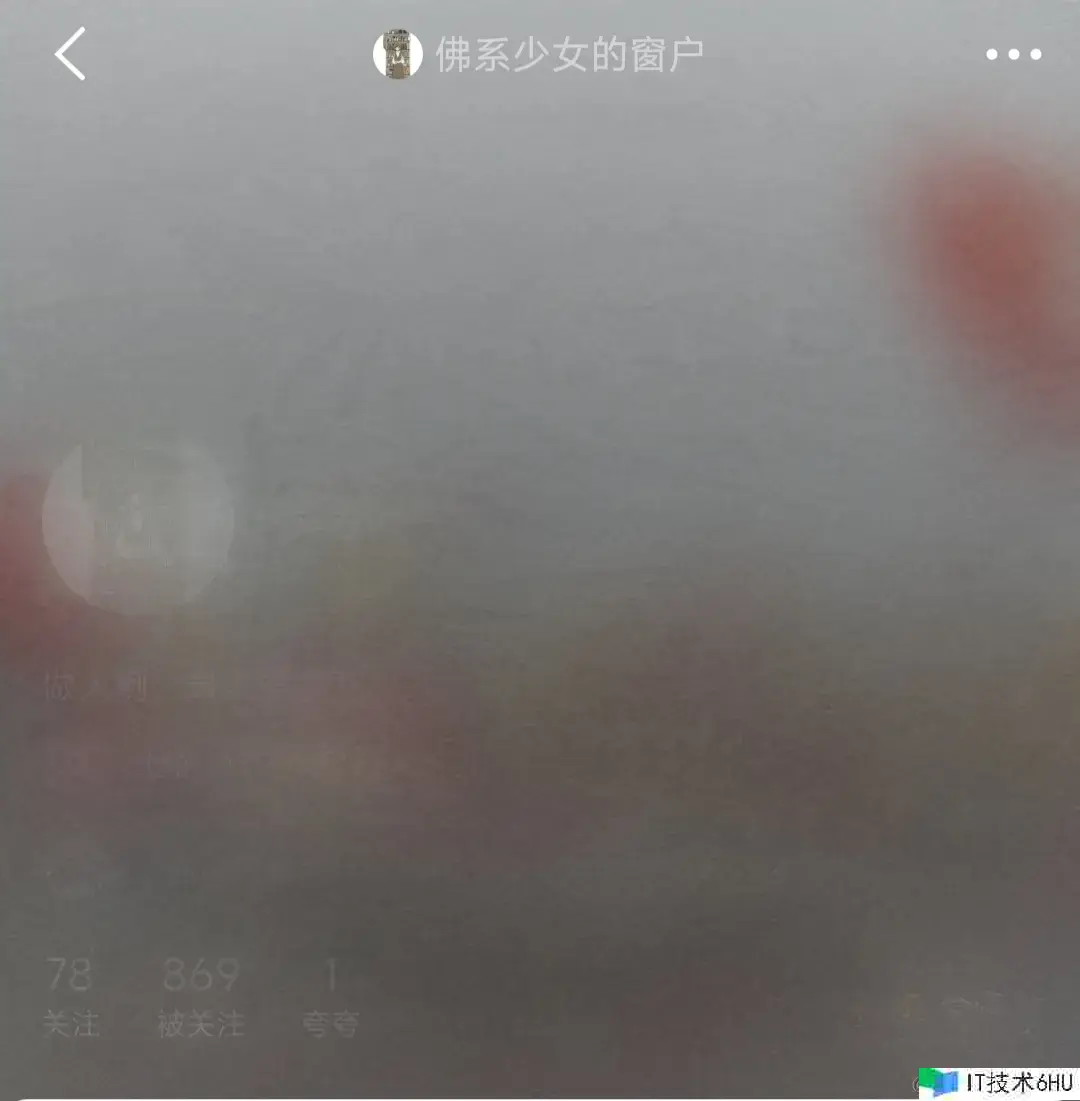

  1. 这是立刻的原窗户和我随便涂了几笔的作用:
原图 涂鸦后
快春节了,用手指在你的窗户上画一只龙做窗花吧(Compose运用自定义制作完成含糊布景以及自在绘图)
快春节了,用手指在你的窗户上画一只龙做窗花吧(Compose运用自定义制作完成含糊布景以及自在绘图)
  1. 这是我仿的作用:
画个龙宝宝 自在涂鸦
快春节了,用手指在你的窗户上画一只龙做窗花吧(Compose运用自定义制作完成含糊布景以及自在绘图)
快春节了,用手指在你的窗户上画一只龙做窗花吧(Compose运用自定义制作完成含糊布景以及自在绘图)

哈哈哈,上面画的龙宝宝或许看起来不太明显,可是我画的其实是这样的萌萌哒的龙宝宝:

快春节了,用手指在你的窗户上画一只龙做窗花吧(Compose运用自定义制作完成含糊布景以及自在绘图)

尽管我画图技术事实不太行,可是不影响咱们的作用嘛,下面咱们就来看看这个作用是怎样完成的。

叠加含糊布景

首要,咱们定义一个 Composable 组件 BlurView

@Composable
fun BlurView(
    paintWidth: Dp = 15.dp, blurRadius: Dp = 10.dp, content: @Composable () -> Unit,
) { }

该组件承受一个名为 content 的 Composable 函数,即需求叠加上含糊作用以及支撑涂鸦的内容,而 paintWidth blurRadius 则分别是涂鸦时的画笔宽度以及含糊内容半径。

咱们首要需求完成含糊传入的 content ,这个其实非常好完成,因为 Compose 官方自己就支撑一个名为 blur 的润饰符,所以咱们直接调用就行。

可是有一点需求留意,这个润饰符仅在 Android 12 及其以上的 Android 版本才支撑,如果有需求兼容旧版本安卓的话,需求自行完成含糊作用,这儿咱们就不做兼容了,感兴趣的能够试一下。别的引荐一个含糊作用兼容库,可是它是基于原生 View 完成的,不过能够学习一下它的原理思想: BlurView

综上所述,咱们容易想到,直接这样写:

fun BlurView(
    paintWidth: Dp = 15.dp, blurRadius: Dp = 10.dp, content: @Composable () -> Unit,
) {
        Column(
            modifier = Modifier
                .fillMaxSize()
                .blur(blurRadius)
        ) {
            content()
        }
}

接下来随便写一个页面来看下作用:

    BlurView {
        Box(
            modifier = Modifier
                .fillMaxSize()
                .background(
                    color = Color.LightGray
                )
        ) {
            Image(painter = painterResource(id = R.drawable.screen_2), contentDescription = "")
            Text(
                text = "龙年行大运,祥瑞照门庭。岁月悠悠,友情漫长,感恩有您相伴。愿您在新的一年里,如龙腾飞,事业兴旺;如龙入海,生活美满。祝您龙年吉祥如意!龙年威仪照世间,岁月悠长福寿全。愿君如龙舞九霄,事业有成步步高。春风得意马蹄疾,新年吉祥如意来。祝您龙年大吉大利,万事顺称心欢畅。龙年到来,祥瑞满天。愿您如龙般强健,事业腾飞;如龙鳞闪耀,生活美满。祝您龙年大吉,万事如意!龙年到来,祝福满满。愿你在新的一年里,如龙腾飞,事业有成;如龙出海,财路广进;如龙入云,身体康健。龙年高兴,阖家幸福!恭贺新禧,龙年吉祥!在这辞旧迎新的夸姣时间,愿您如龙腾飞,事业蒸蒸日上;如龙入海,财路滚滚而来。龙年行大运,万事如意!龙年威武,祥瑞满天。愿你在新的一年里,如龙腾飞,事业有成;如龙出海,财路广进;如龙行天下,步步高升。龙年高兴,万事如意!龙年行大运,吉祥如意伴你行。祝你在新的一年里事业有成,步步高升;财路广进,堆金积玉;身体康健,福寿双全。龙年大吉,万事胜意!亲爱的XXX,龙年到来之际,祝你如龙腾飞,事业有成;如龙般坚韧,无惧挑战;如龙般走运,步步高升。龙年高兴,万事胜意!",
                fontSize = 32.sp,
                color = Color(170, 56, 30)
            )
        }
    }

作用如下:

快春节了,用手指在你的窗户上画一只龙做窗花吧(Compose运用自定义制作完成含糊布景以及自在绘图)

能够看到,的确很好的含糊掉了咱们的显现内容,可是事实上,咱们不仅是需求简略的含糊掉内容,而是需求叠加一层含糊作用,而且该作用应该支撑通过某种方法自在的裁切掉,“漏出”未被含糊的内容,然后完成咱们的在窗户上涂鸦的作用。

通过上面的描绘,咱们很容易想到,能够通过 Box 叠加一层含糊后的图层,再在底部显现未被含糊的内容:

Box{
    // 原内容放到底层
    Column {
        content()
    }
    // 含糊后的内容叠加上去
    Column(
        modifier = Modifier
            .fillMaxSize()
            .blur(blurRadius)
    ) {
        content()
    }
}

那么如安在叠加上的含糊图层中“抠出”一个洞来显现底部的原图层呢?

其实也不难完成,咱们这儿能够用到 Compose 的自定义制作功能,制作出想要抠出的形状后,通过特定的混合形式,完成“抠图”作用。

例如,咱们想抠出一个圆形,那么咱们能够首要这样在含糊图层制作一个圆形:

Box{
    // 原内容放到底层
    Column {
        content()
    }
    // 含糊后的内容叠加上去
    Column(
        modifier = Modifier
            .fillMaxSize()
            .blur(blurRadius)
            .drawWithContent {
                // 制作出原画布内容(即含糊后的图层)
                drawContent()
                // 制作一个圆形
                drawCircle(
                    Color.White,
                )
            }
    ) {
        content()
    }
}

上面涉及到了 Compose 制作中的几个概念,这儿不再赘述,不清楚的能够看我之前的文章,其间有具体解说:Compose 制作

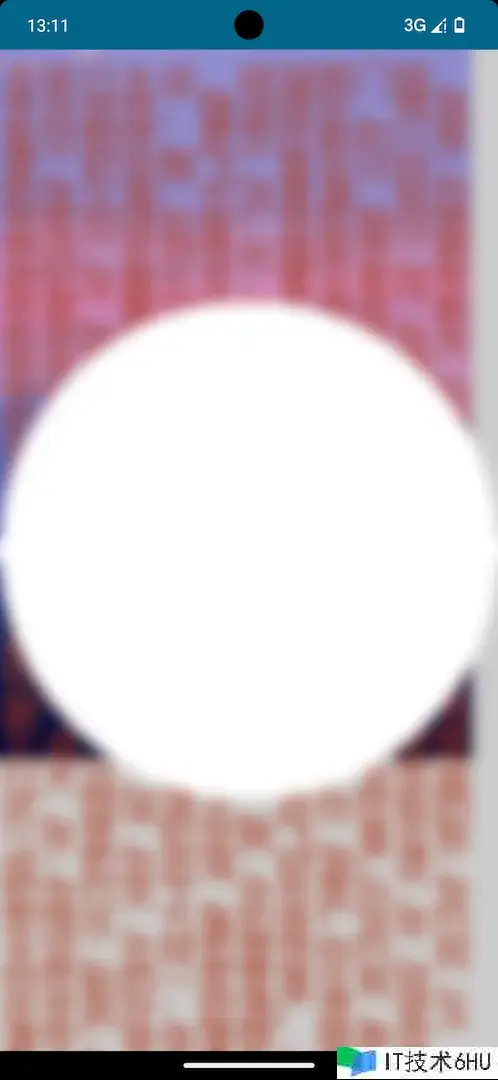

上述代码完成作用如下:

快春节了,用手指在你的窗户上画一只龙做窗花吧(Compose运用自定义制作完成含糊布景以及自在绘图)

能够看到,尽管圆形是画出来了,可是也被含糊了,且就算没被含糊也不是咱们想要的抠出图画的作用。

别急,此时只需求改一下混合形式即可:

// ……
// 制作一个圆形
drawCircle(
    Color.White,
    // 指定混合形式为 BlendMode.DstOut
    blendMode = BlendMode.DstOut
)
// ……

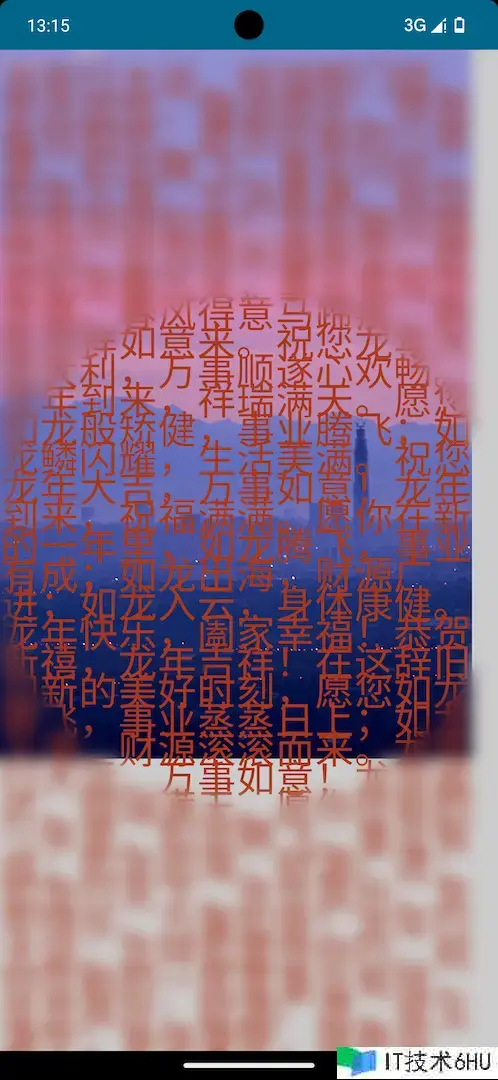

此时作用为:

快春节了,用手指在你的窗户上画一只龙做窗花吧(Compose运用自定义制作完成含糊布景以及自在绘图)

能够看到,现在现已达到了咱们的料想作用。

扩展: 简略解说一下为什么添加了这个混合形式就达到了咱们的作用,首要看官方对 DstOut 的解说:

Show the destination image, but only where the two images do not overlap. The source image is not rendered, it is treated merely as a mask. The color channels of the source are ignored, only the opacity has an effect.

To show the source image instead, consider SrcOut.

To reverse the semantic of the mask (only showing the destination where the source is present, rather than where it is absent), consider DstIn.

This corresponds to the “Destination out Source” Porter-Duff operator.

简略理解就是运用这个混合形式之后,将只显现叠加图画没有和源图画重合的部分,而且源图画不会被烘托,只烘托叠加图画

在这儿,咱们的叠加图画即为含糊后的图层,而源图画则为制作的圆形。

与之对应的是:

  • DstIn – 只显现叠加图画和源图画重合的部分,而且源图画不会被烘托,只烘托叠加图画
  • SrcIn – 只显现叠加图画和源图画重合的部分,而且叠加图画不会被烘托,只烘托源图画
  • SrcOut – 只显现叠加图画没有和源图画重合的部分,而且叠加图画不会被烘托,只烘托源图画

不同的叠加形式作用图:

  1. DstOut
    快春节了,用手指在你的窗户上画一只龙做窗花吧(Compose运用自定义制作完成含糊布景以及自在绘图)
  2. DstIn
    快春节了,用手指在你的窗户上画一只龙做窗花吧(Compose运用自定义制作完成含糊布景以及自在绘图)
  3. SrcOut
    快春节了,用手指在你的窗户上画一只龙做窗花吧(Compose运用自定义制作完成含糊布景以及自在绘图)
  4. SrcIn
    快春节了,用手指在你的窗户上画一只龙做窗花吧(Compose运用自定义制作完成含糊布景以及自在绘图)

原始输入的是这两个图片:

快春节了,用手指在你的窗户上画一只龙做窗花吧(Compose运用自定义制作完成含糊布景以及自在绘图)

在 Compose 制作中,支撑 29 种不同的混合形式,简直能够覆盖咱们的所有需求了,具体能够看官方文档:BlendMode

自在制作

通过上面的过程,咱们现已有了完成咱们预定作用的基础,下面就是需求完成用户自在制作后按照制作的内容“抠出”含糊图画。

首要,为了完成自在制作,必不可少的当然是需求监听手势操作,这儿咱们直接用一个其他大佬写好的东西类:

/**
 * @author SmartToolFactory
 *
 * from: https://github.com/SmartToolFactory/Compose-Drawing-App
 * */
suspend fun AwaitPointerEventScope.awaitDragMotionEvent(
    onTouchEvent: (MotionEvent, PointerInputChange) -> Unit
) {
    // Wait for at least one pointer to press down, and set first contact position
    val down: PointerInputChange = awaitFirstDown()
    onTouchEvent(MotionEvent.Down, down)
    var pointer = down
    //  Waits for drag threshold to be passed by pointer
    // or it returns null if up event is triggered
    val change: PointerInputChange? =
        awaitTouchSlopOrCancellation(down.id) { change: PointerInputChange, over: Offset ->
            //  If consumePositionChange() is not consumed drag does not
            // function properly.
            // Consuming position change causes change.positionChanged() to return false.
            change.consumePositionChange()
        }
    if (change != null) {
        //  Calls  awaitDragOrCancellation(pointer) in a while loop
        drag(change.id) { pointerInputChange: PointerInputChange ->
            pointer = pointerInputChange
            onTouchEvent(MotionEvent.Move, pointer)
        }
        // All of the pointers are up
        onTouchEvent(MotionEvent.Up, pointer)
    } else {
        // Drag threshold is not passed and last pointer is up
        onTouchEvent(MotionEvent.Up, pointer)
    }
}
fun Modifier.dragMotionEvent(onTouchEvent: (MotionEvent, PointerInputChange) -> Unit) = this.then(
    Modifier.pointerInput(Unit) {
        forEachGesture {
            awaitPointerEventScope {
                awaitDragMotionEvent(onTouchEvent)
            }
        }
    }
)
suspend fun AwaitPointerEventScope.awaitDragMotionEvent(
    onDragStart: (PointerInputChange) -> Unit = {},
    onDrag: (PointerInputChange) -> Unit = {},
    onDragEnd: (PointerInputChange) -> Unit = {}
) {
    // Wait for at least one pointer to press down, and set first contact position
    val down: PointerInputChange = awaitFirstDown()
    onDragStart(down)
    var pointer = down
    //  Waits for drag threshold to be passed by pointer
    // or it returns null if up event is triggered
    val change: PointerInputChange? =
        awaitTouchSlopOrCancellation(down.id) { change: PointerInputChange, over: Offset ->
            //  If consumePositionChange() is not consumed drag does not
            // function properly.
            // Consuming position change causes change.positionChanged() to return false.
            change.consumePositionChange()
        }
    if (change != null) {
        //  Calls  awaitDragOrCancellation(pointer) in a while loop
        drag(change.id) { pointerInputChange: PointerInputChange ->
            pointer = pointerInputChange
            onDrag(pointer)
        }
        // All of the pointers are up
        onDragEnd(pointer)
    } else {
        // Drag threshold is not passed and last pointer is up
        onDragEnd(pointer)
    }
}
fun Modifier.dragMotionEvent(
    onDragStart: (PointerInputChange) -> Unit = {},
    onDrag: (PointerInputChange) -> Unit = {},
    onDragEnd: (PointerInputChange) -> Unit = {}
) = this.then(
    Modifier.pointerInput(Unit) {
        forEachGesture {
            awaitPointerEventScope {
                awaitDragMotionEvent(onDragStart, onDrag, onDragEnd)
            }
        }
    }
)
enum class MotionEvent {
    Idle, Down, Move, Up
}

现在,咱们只需求为需求监听手势的 Composable 添加 dragMotionEvent 润饰即可监听手势:

var motionEvent by remember { mutableStateOf(MotionEvent.Idle) }
    var currentPosition by remember { mutableStateOf(Offset.Unspecified) }
    var previousPosition by remember { mutableStateOf(Offset.Unspecified) }
    Box(
        modifier = Modifier.dragMotionEvent(
            onDragStart = { pointerInputChange ->
                motionEvent = MotionEvent.Down
                currentPosition = pointerInputChange.position
                pointerInputChange.consumeDownChange()
            },
            onDrag = { pointerInputChange ->
                motionEvent = MotionEvent.Move
                currentPosition = pointerInputChange.position
                pointerInputChange.consumePositionChange()
            },
            onDragEnd = { pointerInputChange ->
                motionEvent = MotionEvent.Up
                pointerInputChange.consumeDownChange()
            },
        ),
    )

接下来,依据手势获取到的坐标信息,在制作时通过 Path 实时制作用户的手势轨道:

.drawWithCache {
                    val currentPath = Path()
                    onDrawWithContent {
                        with(drawContext.canvas.nativeCanvas) {
                            val checkPoint = saveLayer(null, null)
                            when (motionEvent) {
                                MotionEvent.Down -> {
                                    currentPath.moveTo(currentPosition.x, currentPosition.y)
                                    previousPosition = currentPosition
                                }
                                MotionEvent.Move -> {
                                    currentPath.quadraticBezierTo(
                                        previousPosition.x,
                                        previousPosition.y,
                                        (previousPosition.x + currentPosition.x) / 2,
                                        (previousPosition.y + currentPosition.y) / 2
                                    )
                                    previousPosition = currentPosition
                                }
                                MotionEvent.Up -> {
                                    currentPath.lineTo(currentPosition.x, currentPosition.y)
                                    currentPosition = Offset.Unspecified
                                    previousPosition = currentPosition
                                    motionEvent = MotionEvent.Idle
                                }
                                else -> Unit
                            }
                            drawContent()
                            drawPath(
                                currentPath, color = Color.White, alpha = 1f,
                                style = Stroke(
                                    width = paintWidth.toPx(),
                                ),
                                blendMode = BlendMode.DstOut,
                            )
                            restoreToCount(checkPoint)
                        }
                    }
                },

在上述代码中,咱们在手势移动时,通过二阶贝塞尔曲线 currentPath.quadraticBezierTo() 制作出用户的手势轨道,然后再通过 drawPath() 将这个轨道制作出来,而且将混合形式设置为 BlendMode.DstOut ,这样,就完成了自在制作含糊图层,而且制作的内容是抠除含糊图层,显现出底下的原始图层,作用如下:

快春节了,用手指在你的窗户上画一只龙做窗花吧(Compose运用自定义制作完成含糊布景以及自在绘图)

扩展与结语

完成了咱们想要的作用之后,当然需求画上咱们契合龙年主题的涂鸦了,这儿咱们就在网上找了一个龙宝宝的图片:

快春节了,用手指在你的窗户上画一只龙做窗花吧(Compose运用自定义制作完成含糊布景以及自在绘图)

然后,照着画上去?

不不不,就我这水平怎样或许画的出来这么美观的图画呢?咱们当然是选用直接导入的方法咯。

有两种导入方法,第一种比较简略也比较适合略微复杂点的图画,那就是直接把上面代码中的制作 Path 改成制作图画,然后叠加即可,可是需求留意,叠加的图画布景有必要是透明的:

// ……
val imageBitmap = ImageBitmap.imageResource(id = R.drawable.dragon_3)
// ……
drawImage(
    image = imageBitmap,
    blendMode = BlendMode.DstOut
)
// ……

第二种方法比较复杂,那就是能够将 SVG 图片转为转为制作的 Path:

首要以文本方法翻开 SVG 文件,就能看到图画的途径信息包含在 path 标签中,例如:

<?xml version="1.0" standalone="no"?><!DOCTYPE svg PUBLIC "-//W3C//DTD SVG 1.1//EN" "http://www.w3.org/Graphics/SVG/1.1/DTD/svg11.dtd"><svg t="1706427697349" class="icon" viewBox="0 0 1305 1024" version="1.1" xmlns="http://www.w3.org/2000/svg" p-id="2158" xmlns:xlink="http://www.w3.org/1999/xlink" width="254.8828125" ><path d="M567.374376 424.252912a26.5797 26.5797 0 0 0-34.076539 17.379035l-14.652912 45.321797a26.920466 26.920466 0 0 0 17.379035 34.076539 26.920466 26.920466 0 0 0 34.076539-17.379035l14.652912-45.321797a26.920466 26.920466 0 0 0-17.379035-34.076539zM808.636273 570.78203l14.652912-45.321797a26.920466 26.920466 0 0 0-17.379035-34.076539 27.261231 27.261231 0 0 0-34.076539 17.379035l-14.312147 45.321797a26.68193 26.68193 0 1 0 50.774043 16.356739zM396.991681 739.120133a19.082862 19.082862 0 0 0-13.289851 8.178369 25.216639 25.216639 0 0 0-3.066888 19.764393 9.882196 9.882196 0 0 0 11.926788 7.837604 10.222962 10.222962 0 0 0 8.17837-11.926789c0-2.385358 0-3.748419-1.703827-3.748419a46.003328 46.003328 0 0 1 29.646589 8.519135 21.46822 21.46822 0 0 1 6.133777 16.356739 9.882196 9.882196 0 0 0 10.222962 9.882196 10.222962 10.222962 0 0 0 10.222961-9.882196 40.891847 40.891847 0 0 0-12.608319-31.009651 65.426955 65.426955 0 0 0-45.662562-13.971381zM695.161398 824.652246a42.595674 42.595674 0 0 0-32.031947 9.882197 10.563727 10.563727 0 0 0 0 14.312146 9.882196 9.882196 0 0 0 14.312146 0 21.127454 21.127454 0 0 1 16.356739-5.452246 45.662562 45.662562 0 0 1 24.875874 16.356739l-3.407654 2.385357a10.222962 10.222962 0 0 0 4.770715 19.082862 10.904493 10.904493 0 0 0 4.770716 0 24.535108 24.535108 0 0 0 12.949085-14.652912 19.423627 19.423627 0 0 0-2.385358-16.356738 68.153078 68.153078 0 0 0-40.210316-25.557405z" p-id="2159"></path><path d="M1303.427621 748.320799a145.166057 145.166057 0 0 0-95.755075-55.203994 159.818968 159.818968 0 0 0-117.56406 10.563727 49.070216 49.070216 0 0 0-15.334443 20.105159 170.382696 170.382696 0 0 0-10.563727-18.060566 132.557737 132.557737 0 0 0 62.019301-63.723128c11.245258-34.076539-14.993677-68.153078-37.484193-89.621298a87.917471 87.917471 0 0 0 49.410982-53.500167c18.742097-56.22629-113.815641-125.742429-154.707488-145.506822a10.904493 10.904493 0 0 0-7.156073 0l-2.044592-3.407653 51.455574-56.22629 25.557404 23.172047a38.506489 38.506489 0 0 0 27.261232 7.837604 38.165724 38.165724 0 0 0 27.261231-12.60832 38.506489 38.506489 0 0 0 10.222962-27.942762 39.528785 39.528785 0 0 0-12.60832-27.261231l-24.875873-22.149751 47.707154-51.796339a34.076539 34.076539 0 0 0-2.385357-49.751747 34.076539 34.076539 0 0 0-49.410982 2.385358l-47.366389 52.818635-25.557405-23.172046a39.18802 39.18802 0 0 0-52.818635 57.248585l25.557404 23.512812-42.595674 44.640267a292.376705 292.376705 0 0 0-65.76772-49.751748 204.459235 204.459235 0 0 0-112.111814-26.238935v-31.00965h34.076539a39.18802 39.18802 0 1 0 0-78.37604h-34.076539V35.098835a35.098835 35.098835 0 1 0-70.197671 0v70.197671h-34.076539a39.18802 39.18802 0 0 0 0 78.37604h34.076539v43.277204a389.835607 389.835607 0 0 0-133.580033 74.968386 1462.905824 1462.905824 0 0 0-235.468885 244.328786c-2.726123-2.385358-4.770715-5.111481-7.496839-7.156073-30.668885-21.808985-76.672213-19.423627-153.344426 8.519134A88.939767 88.939767 0 0 1 68.153078 545.224626C25.216639 511.148087 30.668885 423.912146 30.668885 422.88985a14.652912 14.652912 0 0 0-13.971381-16.015973 14.312146 14.312146 0 0 0-10.904492 3.407654 16.015973 16.015973 0 0 0-5.452247 10.563727c0 4.42995-6.815308 105.978037 49.410982 148.57371a115.519468 115.519468 0 0 0 114.497171 6.815308c65.08619-23.853577 102.229617-27.601997 124.720134-12.267554a34.076539 34.076539 0 0 1 7.837604 7.837604 317.593344 317.593344 0 0 0-65.08619 189.806323 158.455907 158.455907 0 0 0 88.258236 125.401664c116.882529 68.153078 291.013644 136.306156 430.045924 136.306156a283.17604 283.17604 0 0 0 98.140432-16.015973h4.089185a245.351082 245.351082 0 0 0 128.468552-78.37604l22.149751-4.089185c94.732779-23.172047 94.732779-96.09584 94.732778-144.484526 0-23.512812 0-45.662562 9.882197-52.818635a132.557737 132.557737 0 0 1 92.688186-5.452246 123.697837 123.697837 0 0 1 75.649917 40.210316 15.675208 15.675208 0 0 0 20.786689 6.133777 14.993677 14.993677 0 0 0 7.156073-9.200666 17.03827 17.03827 0 0 0-0.340765-10.904492zM951.757737 314.526456l55.203993-60.315474a15.334443 15.334443 0 0 0 0-21.46822l-36.461896-34.076539a8.519135 8.519135 0 0 1 0-11.926789 9.200666 9.200666 0 0 1 12.267554 0l36.461897 34.076539a15.334443 15.334443 0 0 0 21.468219 0l57.930117-63.041597a4.770715 4.770715 0 0 1 6.474542 0 5.111481 5.111481 0 0 1 0 6.815308l-60.65624 60.656239a16.015973 16.015973 0 0 0 0 21.808985l36.461897 34.07654a8.8599 8.8599 0 0 1 0 12.267554 10.222962 10.222962 0 0 1-6.133777 2.726123 11.586023 11.586023 0 0 1-6.133777-2.385358l-36.461897-34.076539a15.675208 15.675208 0 0 0-10.904492-4.089185 15.334443 15.334443 0 0 0-10.563727 4.770716l-56.22629 61.33777-5.793011-7.156073z m-252.84792-160.159734h-49.751747a8.519135 8.519135 0 0 1 0-17.038269h49.751747a15.334443 15.334443 0 0 0 15.334443-17.03827v-85.191348a4.42995 4.42995 0 0 1 4.42995-4.42995 4.42995 4.42995 0 0 1 4.770715 4.42995v85.191348a15.334443 15.334443 0 0 0 15.334443 15.334443h49.410981a8.519135 8.519135 0 0 1 0 17.038269h-50.433277a15.334443 15.334443 0 0 0-15.334443 15.334443v49.410981l-9.200666 1.703827V168.338103a15.334443 15.334443 0 0 0-14.312146-13.971381zM334.972379 860.432612a128.809318 128.809318 0 0 1-72.923793-102.229617 270.56772 270.56772 0 0 1 49.410981-153.685191 529.549418 529.549418 0 0 1 6.815308 124.720133 15.334443 15.334443 0 0 0 4.089185 10.904492 15.334443 15.334443 0 0 0 10.904492 4.770716 15.334443 15.334443 0 0 0 15.334443-14.652912 387.109484 387.109484 0 0 0-16.356739-158.115141 1349.430948 1349.430948 0 0 1 238.535774-247.395674 303.962729 303.962729 0 0 1 191.51015-80.761398 165.952745 165.952745 0 0 1 89.280532 22.831281c204.459235 113.474875 131.535441 389.835607 77.694509 591.909484l-7.496838 28.283528c0 4.089185-3.066889 7.496839-4.42995 11.245258a138.009983 138.009983 0 0 1-90.302829-52.137105 17.379035 17.379035 0 0 0-9.541431-6.815308 17.03827 17.03827 0 0 0-11.586023 2.044592 15.334443 15.334443 0 0 0-4.770716 21.127455 170.382696 170.382696 0 0 0 102.229618 64.404659 126.42396 126.42396 0 0 1-59.293178 50.092512c-120.630948 51.114809-342.469218-21.808985-509.103495-116.541764z m601.11015 71.901498z m60.315474-89.621298a16.015973 16.015973 0 0 0-5.793011 6.815308v2.726123a141.758403 141.758403 0 0 1-24.194343 48.729451h-17.379035a39.18802 39.18802 0 0 1 2.044592-5.793012l7.496839-28.283527c37.484193-140.054576 87.917471-329.520133 37.143428-473.663894 62.700832 34.076539 120.290183 78.035275 114.497171 95.755075a60.997005 60.997005 0 0 1-47.707155 40.210316h-5.793011a14.993677 14.993677 0 0 0-13.289851 10.904493 15.334443 15.334443 0 0 0 5.452247 16.356739c22.490516 17.379035 55.885524 52.818636 48.388685 74.286855-11.586023 34.076539-62.360067 54.181697-63.041597 54.522462a6.133777 6.133777 0 0 0-2.385358 1.703827h-2.726123v2.044593a8.178369 8.178369 0 0 0-2.044592 2.726123V697.546755a6.474542 6.474542 0 0 0 0 2.726124 5.111481 5.111481 0 0 0 0 2.385357 19.423627 19.423627 0 0 0 3.748419 5.452247 80.761398 80.761398 0 0 1 24.194343 58.952412 104.27421 104.27421 0 0 1-58.611648 75.649917z m9.541431 49.751747a147.210649 147.210649 0 0 0 11.586024-27.601997 170.382696 170.382696 0 0 0 48.72945-44.640266 77.012978 77.012978 0 0 1-60.315474 72.242263z" p-id="2160"></path></svg>

其间的相似 M567.374376 424.252912a26.5797 26.5797 0 0 0 …… 数据就是咱们需求的途径数据。

咱们复制出来这个途径数据,然后在代码中将其转为 Path 数据:

	val pathData = "M567.374376 424.252912a26.5797 26.5797 0 0 0 …… " // 改成完好的 path 数据
	val path = PathParser().parsePathString(pathData).toPath()

最后,正常制作这个 path 即可:

drawPath(
    path,
    color = Color.White,
    style = Stroke(
        width = paintWidth.toPx(),
    ),
    blendMode = BlendMode.DstOut,
)

这是我运用方法 1 生成的龙宝宝图画:

快春节了,用手指在你的窗户上画一只龙做窗花吧(Compose运用自定义制作完成含糊布景以及自在绘图)

看起来如同不是太明显,哈哈哈。

自此,所有代码就现已完毕了。

这个作用的代码其实并不复杂,可是我却琢磨了两天才琢磨出来,还是因为一开始把简略的问题想复杂了,分明几行代码就能搞定的事,却因为我自己想偏了,愣是写了良久的算法去完成,然后发现不管怎样算,都总是有问题,好在及时发现似乎自己走向了一条过错的道路,赶紧回头,从头梳理了一遍,才发现,原来这么简略。

完好代码见 gist : 完好代码
