Android 开发中心总是绕不过那几个模块，与 Android 的相关面试就离不开这个话题，什么，你又要开端讲述 Binder 的界说跟根底了？不不不，今天咱们从 Activity 的发动来剖析一波其间的代码原理和 ActivityTaskManagerService 进程间的通讯进程。
本章所有源码版别依据 android-30
在 Android 10.0 Q（api-29）之前，都是由 ActivityManagerService 这个服务来掌管 Activity 的中心工作，但是在 api-29 之后，便是由 ActivityTaskManagerService 接替 ActivityManagerService 来独自担任管理 activities 和 activity 相关容器（task，stacks，display）
在 app 运转进程中，不管是 Activity 之前的跳转，还是在手机桌面使用中点击一个 icon 发动这个app，终究都是去经过 startActivity 去翻开某一个 Activity 页面。咱们知道 Android 中的一个 App 就相当于一个进程，所以 startActivity 操作中还需求判别，方针 Activity 的进程是否现已创立，假如没有，则在显现 Activity 之前还需求将进程 Process 提早创立出来。

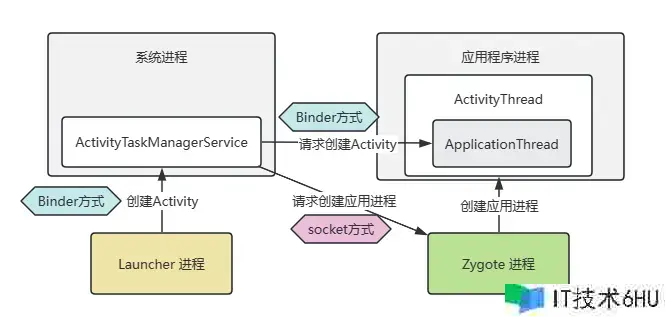

所以整个 startActivity 的流程分为 4 大部分，也触及 4 个进程之间的交互：
- 使用进程（Launcher）调用 ActivityTaskManagerService 来创立 Activity
- ActivityTaskManagerService 到 ApplicationThread 的调用进程
- ActivityTaskManagerService 向 Zygote 发送启用使用进程
- ActivityThread 发动 Activity 的进程
1. 使用进程（Launcher）调用 ActivityTaskManagerService 阶段
这一进程并不复杂，看下源码中做了哪些操作。
Activity 的 startActivity
终究调用了 startActivityForResult 办法，传入的 -1 表示不需求获取 startActivity 的成果。
@Override
public void startActivity(Intent intent) {
this.startActivity(intent, null);
}
@Override
public void startActivity(Intent intent, @Nullable Bundle options) {
if (options != null) {
// 终究调用
startActivityForResult(intent, -1, options);
} else {
// Note we want to go through this call for compatibility with
// applications that may have overridden the method.
startActivityForResult(intent, -1);
}
}
Activity 的 startActivityForResult
详细代码如下所示：
public void startActivityForResult(@RequiresPermission Intent intent, int requestCode,
@Nullable Bundle options) {
if (mParent == null) {
options = transferSpringboardActivityOptions(options);
// mMainThread.getApplicationThread()获取当时Activity的进程。
Instrumentation.ActivityResult ar =
mInstrumentation.execStartActivity(
this, mMainThread.getApplicationThread(), mToken, this,
intent, requestCode, options);
if (ar != null) {
mMainThread.sendActivityResult(
mToken, mEmbeddedID, requestCode, ar.getResultCode(),
ar.getResultData());
}
if (requestCode >= 0) {
mStartedActivity = true;
}
cancelInputsAndStartExitTransition(options);
} else {
...
}
}
startActivityForResult 也很简单，调用 Instrumentation.execStartActivity 办法。剩余的交给 Instrumentation 类去处理。
解释说明：
- Instrumentation 类首要用来监控使用程序与体系交互。
- mMainThread.getApplicationThread()，这个便是用来完结进程间通讯的，详细来说便是 AMS 所在体系进程告诉使用程序进程进行的一系列操作。
Instrumentation 的 execStartActivity
办法如下：
@UnsupportedAppUsage
public ActivityResult execStartActivity(
Context who, IBinder contextThread, IBinder token, Activity target,
Intent intent, int requestCode, Bundle options) {
// 前置处理
try {
intent.migrateExtraStreamToClipData(who);
intent.prepareToLeaveProcess(who);
// ActivityTaskManager.getService() 获取 ActivityTaskManagerService 的实例
int result = ActivityTaskManager.getService().startActivity(whoThread,
who.getBasePackageName(), who.getAttributionTag(), intent,
intent.resolveTypeIfNeeded(who.getContentResolver()), token,
target != null ? target.mEmbeddedID : null, requestCode, 0, null, options);
checkStartActivityResult(result, intent);
} catch (RemoteException e) {
throw new RuntimeException("Failure from system", e);
}
return null;
}
ActivityTaskManager.getService() 获取 ActivityTaskManagerService 的实例，是使用 ActivityTaskManagerService 来调用其 startActivity 办法。
public static IActivityTaskManager getService() {
return IActivityTaskManagerSingleton.get();
}
@UnsupportedAppUsage(trackingBug = 129726065)
private static final Singleton<IActivityTaskManager> IActivityTaskManagerSingleton =
new Singleton<IActivityTaskManager>() {
@Override
protected IActivityTaskManager create() {
// "activity_task"
final IBinder b = ServiceManager.getService(Context.ACTIVITY_TASK_SERVICE);
return IActivityTaskManager.Stub.asInterface(b);
}
};
咱们来看 getService 办法调用了 IActivityTaskManagerSingleton 的 get 办法，而它是一个 Singleton 类，在重写的 create 办法中获取 Context.ACTIVITY_TASK_SERVICE 的 IBinder 引用，然后转换成 IActivityTaskManager 类型的方针。典型的AIDL的写法，IActivityTaskManager 类是 AIDL 工具在编译时主动生成，要完结进程间通讯，服务端也便是 ActivityTaskManagerService 只需求承继 IActivityTaskManager.Stub 类并完结相应的办法就能够了。
经过 AIDL 来调用 ActivityTaskManagerService 的 startActivity 办法，至此，startActivity 的工作重心成功地从进程 Activity 搬运到了体系进程 ActivityTaskManagerService 中。
2. ActivityTaskManagerService 到 ApplicationThread 的调用进程
接下来就看下在 ActivityTaskManagerService 中是怎么一步一步履行到方针 Activity 进程的。
- 综合处理 launchMode 和 Intent 中的 Flag 标志位，并依据处理成果生成一个方针 Activity 的方针（ActivityRecord）。
- 判别是否需求为方针 Activity 创立一个新的进程（ProcessRecord）、新的使命栈（TaskRecord）。
接下来就从 ActivityTaskManagerService 的 startActivity 办法开端看起：
ActivityTaskManagerService 的 startActivity
@Override
public final int startActivity(IApplicationThread caller, String callingPackage,
String callingFeatureId, Intent intent, String resolvedType, IBinder resultTo,
String resultWho, int requestCode, int startFlags, ProfilerInfo profilerInfo,
Bundle bOptions) {
return startActivityAsUser(caller, callingPackage, callingFeatureId, intent, resolvedType,
resultTo, resultWho, requestCode, startFlags, profilerInfo, bOptions,
UserHandle.getCallingUserId());
}
private int startActivityAsUser(IApplicationThread caller, String callingPackage,
@Nullable String callingFeatureId, Intent intent, String resolvedType,
IBinder resultTo, String resultWho, int requestCode, int startFlags,
ProfilerInfo profilerInfo, Bundle bOptions, int userId, boolean validateIncomingUser) {
assertPackageMatchesCallingUid(callingPackage);
// 判别调用者进程是否被阻隔,假如 isIsolated 则抛出 SecurityException 异常
enforceNotIsolatedCaller("startActivityAsUser");
// 查看调用者权限
userId = getActivityStartController().checkTargetUser(userId, validateIncomingUser,
Binder.getCallingPid(), Binder.getCallingUid(), "startActivityAsUser");
// TODO: Switch to user app stacks here.
return getActivityStartController().obtainStarter(intent, "startActivityAsUser")
.setCaller(caller)
.setCallingPackage(callingPackage)
.setCallingFeatureId(callingFeatureId)
.setResolvedType(resolvedType)
.setResultTo(resultTo)
.setResultWho(resultWho)
.setRequestCode(requestCode)
.setStartFlags(startFlags)
.setProfilerInfo(profilerInfo)
.setActivityOptions(bOptions)
.setUserId(userId)
.execute();
}
startActivity 和 startActivityAsUser 的首要区别仅在于办法多了一个参数 UserHandle.getCallingUserId()，该办法会获取调用者的 UserId， ActivityTaskManagerService 能够依据这个 UserId 来确定调用者的权限。
终究经过 getActivityStartController().obtainStarter(intent, “startActivityAsUser”) 来获取 ActivityStarter 方针，调用 ActivityStarter 的 execute() 办法继续履行发动流程。
int execute() {
try {
...
int res;
synchronized (mService.mGlobalLock) {
...
res = executeRequest(mRequest);
Binder.restoreCallingIdentity(origId);
...
}
} finally {
onExecutionComplete();
}
}
在 execute() 中，会再次调用其内部的 executeRequest 办法。
ActivityStarter 的 executeRequest
ActivityStarter 是 Android7.0 中新增的类, 它是用来加载Activity的控制类，看名字也想得到它是专门担任一个 Activity 的发动操作。它的首要作用包括解析 Intent、创立 ActivityRecord、假如有或许还要创立 TaskRecord。
executeRequest 是 ActivityStarter 的中心办法，部分完结如下：
private int executeRequest(Request request) {
...
WindowProcessController callerApp = null;
if (caller != null) {
// 得到调用进程的信息
callerApp = mService.getProcessController(caller);
if (callerApp != null) {
callingPid = callerApp.getPid();
callingUid = callerApp.mInfo.uid;
} else {
Slog.w(TAG, "Unable to find app for caller " + caller + " (pid=" + callingPid
+ ") when starting: " + intent.toString());
err = ActivityManager.START_PERMISSION_DENIED;
}
}
...
//各种过错查看
...
// 查看 intent 防火墙是否屏蔽了该 intent
boolean abort = !mSupervisor.checkStartAnyActivityPermission(intent, aInfo, resultWho,
requestCode, callingPid, callingUid, callingPackage, callingFeatureId,
request.ignoreTargetSecurity, inTask != null, callerApp, resultRecord, resultStack);
abort |= !mService.mIntentFirewall.checkStartActivity(intent, callingUid,
callingPid, resolvedType, aInfo.applicationInfo);
abort |= !mService.getPermissionPolicyInternal().checkStartActivity(intent, callingUid,
callingPackage);
... ...
// If permissions need a review before any of the app components can run, we
// launch the review activity and pass a pending intent to start the activity
// we are to launching now after the review is completed.
if (aInfo != null) {
if (mService.getPackageManagerInternalLocked().isPermissionsReviewRequired(
aInfo.packageName, userId)) {
...
// 经过 ActivityStackSupervisor 获取 ResolveInfo 信息
rInfo = mSupervisor.resolveIntent(intent, resolvedType, userId, 0,
computeResolveFilterUid(
callingUid, realCallingUid, request.filterCallingUid));
// 经过 ActivityStackSupervisor 获取方针 Activity 信息
aInfo = mSupervisor.resolveActivity(intent, rInfo, startFlags,
null /*profilerInfo*/);
...
}
}
if (rInfo != null && rInfo.auxiliaryInfo != null) {
...
// 经过 ActivityStackSupervisor 获取方针 Activity 信息
aInfo = mSupervisor.resolveActivity(intent, rInfo, startFlags, null /*profilerInfo*/);
}
// 创立 ActivityRecord 方针
final ActivityRecord r = new ActivityRecord(mService, callerApp, callingPid, callingUid,
callingPackage, callingFeatureId, intent, resolvedType, aInfo,
mService.getGlobalConfiguration(), resultRecord, resultWho, requestCode,
request.componentSpecified, voiceSession != null, mSupervisor, checkedOptions,
sourceRecord);
mLastStartActivityRecord = r;
...
mLastStartActivityResult = startActivityUnchecked(r, sourceRecord, voiceSession,
request.voiceInteractor, startFlags, true /* doResume */, checkedOptions, inTask,
restrictedBgActivity, intentGrants);
return mLastStartActivityResult;
}
能够看出获取方针 Activity 信息的操作由 ActivityStackSupervisor 来完结，首要是担任 Activity 所在栈的管理类。
ActivityStackSupervisor 中的 resolveIntent 中实际上是调用体系 PackageManagerService 来获取最佳 Activity。有时候咱们经过隐式 Intent 发动 Activity 时，体系中或许存在多个 Activity 能够处理 Intent，此刻会弹出一个挑选框让用户挑选详细需求翻开哪一个 Activity 界面，便是此处的逻辑处理成果。
在 executeRequest 办法的终究会调用 startActivityUnchecked 办法来获取发动 Activity 的成果。startActivityUnchecked 办法中采用 startActivityInner 来处理方针 Activity 的信息。
ActivityStarter 的 startActivityInner
@VisibleForTesting
int startActivityInner(final ActivityRecord r, ActivityRecord sourceRecord,
IVoiceInteractionSession voiceSession, IVoiceInteractor voiceInteractor,
int startFlags, boolean doResume, ActivityOptions options, Task inTask,
boolean restrictedBgActivity, NeededUriGrants intentGrants) {
setInitialState(r, options, inTask, doResume, startFlags, sourceRecord, voiceSession,
voiceInteractor, restrictedBgActivity);
// 1. 核算发动 Activity 的 Flag 值
computeLaunchingTaskFlags();
... ...
// 2. 处理 Task 和 Activity 的进栈操作
mTargetStack.startActivityLocked(mStartActivity, topStack.getTopNonFinishingActivity(),
newTask, mKeepCurTransition, mOptions);
// 3. 发动栈中顶部的 Activity
if (mDoResume) {
final ActivityRecord topTaskActivity =
mStartActivity.getTask().topRunningActivityLocked();
if (!mTargetStack.isTopActivityFocusable()
|| (topTaskActivity != null && topTaskActivity.isTaskOverlay()
&& mStartActivity != topTaskActivity)) {
...
mTargetStack.ensureActivitiesVisible(null /* starting */,
0 /* configChanges */, !PRESERVE_WINDOWS);
mTargetStack.getDisplay().mDisplayContent.executeAppTransition();
} else {
...
mRootWindowContainer.resumeFocusedStacksTopActivities(
mTargetStack, mStartActivity, mOptions);
}
}
mRootWindowContainer.updateUserStack(mStartActivity.mUserId, mTargetStack);
return START_SUCCESS;
}
当时办法首要处理了发动 Activity 的 Flag 值、Task 和 Activity 的进栈操作以及发动栈中顶部的 Activity的相应操作，咱们详细一步一步剖析。
computeLaunchingTaskFlags 办法详细如下：
private void computeLaunchingTaskFlags() {
... 前置处理 Task 和 Intent 的信息
if (mInTask == null) {
if (mSourceRecord == null) {
// 使用 Context 或许 Application 发动 Activity 时，mSourceRecord 为空
if ((mLaunchFlags & FLAG_ACTIVITY_NEW_TASK) == 0 && mInTask == null) {
Slog.w(TAG, "startActivity called from non-Activity context; forcing " +
"Intent.FLAG_ACTIVITY_NEW_TASK for: " + mIntent);
mLaunchFlags |= FLAG_ACTIVITY_NEW_TASK;
}
} else if (mSourceRecord.launchMode == LAUNCH_SINGLE_INSTANCE) {
// 初始 Activity 假如是在 SingleInstance 栈中的 Activity，这种需求添加 NEW_TASK 的标识。
// 由于 SingleInstance 栈只能允许保存一个 Activity。
mLaunchFlags |= FLAG_ACTIVITY_NEW_TASK;
} else if (isLaunchModeOneOf(LAUNCH_SINGLE_INSTANCE, LAUNCH_SINGLE_TASK)) {
// 假如 Launch Mode 设置了 singleTask 或 singleInstance，则也要创立一个新栈。
mLaunchFlags |= FLAG_ACTIVITY_NEW_TASK;
}
}
}
这个办法的前置部分处理完 Task 和 Intent 的信息，依据 Task 和 ActivityRecord 的类型来判别怎么给方针 Activity 增加相应的发动 Flag。不同的 Flag 决定了发动 Activity 终究会被放置到哪一个 Task 调集中。
ActivityStackSupervisor 的 startActivityLocked
void startActivityLocked(ActivityRecord r, ActivityRecord focusedTopActivity,
boolean newTask, boolean keepCurTransition, ActivityOptions options) {
Task rTask = r.getTask();
final boolean allowMoveToFront = options == null || !options.getAvoidMoveToFront();
final boolean isOrhasTask = rTask == this || hasChild(rTask);
// mLaunchTaskBehind tasks get placed at the back of the task stack.
if (!r.mLaunchTaskBehind && allowMoveToFront && (!isOrhasTask || newTask)) {
// Last activity in task had been removed or ActivityManagerService is reusing task.
// Insert or replace.
// Might not even be in.
positionChildAtTop(rTask);
}
...
}
办法中会调用 positionChildAtTop 办法测验将 Task 和 Activity 入栈。假如 Activity 是以 newTask 的模式发动或许 TASK 堆栈中不存在该 Task id，则 Task 会重新入栈，而且放在栈的顶部。需求注意的是：Task 先入栈，之后才是 Activity 入栈，它们是包括关系。
RootWindowContainer 的 resumeFocusedStacksTopActivities 和 updateUserStack
在 RootWindowContainer 的 resumeTopActivityUncheckedLocked 办法中经过一系列调用，期间经过ActivityStack 处理、终究代码到了 ActivityStackSupervisor 中的 startSpecificActivity 办法。
ActivityStackSupervisor 的 startSpecificActivity
void startSpecificActivity(ActivityRecord r, boolean andResume, boolean checkConfig) {
// 依据进程名称和 Application 的 uid 来判别方针进程是否现已创立，假如没有则代表进程未创立。
final WindowProcessController wpc =
mService.getProcessController(r.processName, r.info.applicationInfo.uid);
boolean knownToBeDead = false;
if (wpc != null && wpc.hasThread()) {
try {
// 履行发动 Activity 的操作
realStartActivityLocked(r, wpc, andResume, checkConfig);
return;
} catch (RemoteException e) {
Slog.w(TAG, "Exception when starting activity "
+ r.intent.getComponent().flattenToShortString(), e);
}
// If a dead object exception was thrown -- fall through to
// restart the application.
knownToBeDead = true;
}
r.notifyUnknownVisibilityLaunchedForKeyguardTransition();
final boolean isTop = andResume && r.isTopRunningActivity();
// 调用 ActivityTaskManagerService 创立 Activity 所在进程。
mService.startProcessAsync(r, knownToBeDead, isTop, isTop ? "top-activity" : "activity");
}
依据源码咱们发现不管是方针进程是否为新建，终究都会调用 realStartActivityLocked 办法来履行发动 Activity 的操作。
ActivityStackSupervisor 的 realStartActivityLocked
boolean realStartActivityLocked(ActivityRecord r, WindowProcessController proc,
boolean andResume, boolean checkConfig) throws RemoteException {
...
try {
...
try {
...
// Activity 的发动交给了业务（Transaction）来完结
// Create activity launch transaction.
final ClientTransaction clientTransaction = ClientTransaction.obtain(
proc.getThread(), r.appToken);
final DisplayContent dc = r.getDisplay().mDisplayContent;
clientTransaction.addCallback(LaunchActivityItem.obtain(new Intent(r.intent),
System.identityHashCode(r), r.info,
// TODO: Have this take the merged configuration instead of separate global
// and override configs.
mergedConfiguration.getGlobalConfiguration(),
mergedConfiguration.getOverrideConfiguration(), r.compat,
r.launchedFromPackage, task.voiceInteractor, proc.getReportedProcState(),
r.getSavedState(), r.getPersistentSavedState(), results, newIntents,
dc.isNextTransitionForward(), proc.createProfilerInfoIfNeeded(),
r.assistToken, r.createFixedRotationAdjustmentsIfNeeded()));
// Set desired final state.
final ActivityLifecycleItem lifecycleItem;
if (andResume) {
lifecycleItem = ResumeActivityItem.obtain(dc.isNextTransitionForward());
} else {
lifecycleItem = PauseActivityItem.obtain();
}
clientTransaction.setLifecycleStateRequest(lifecycleItem);
// Schedule transaction.
mService.getLifecycleManager().scheduleTransaction(clientTransaction);
...
} catch (RemoteException e) {
throw e;
}
} finally {
endDeferResume();
}
...
return true;
}
能够看到 Activity 的发动交给了业务（ClientTransaction）来完结。由 ClientTransaction 来创立 Activity 发动业务，并传入 app.thread 参数，并在之后调用 scheduleTransaction 办法来履行 Activity 发动业务。
Activity 发动业务的履行是由 ClientLifecycleManager 来完结的，详细代码如下：
void scheduleTransaction(ClientTransaction transaction) throws RemoteException {
final IApplicationThread client = transaction.getClient();
transaction.schedule();
if (!(client instanceof Binder)) {
// If client is not an instance of Binder - it's a remote call and at this point it is
// safe to recycle the object. All objects used for local calls will be recycled after
// the transaction is executed on client in ActivityThread.
transaction.recycle();
}
}
能够看出实际上是调用了发动业务 ClientTransaction 的 schedule 办法，而这个 transaction 实际上是在创立 ClientTransaction 时传入的 app.thread 方针，也便是 ApplicationThread。如下所示：
/** Obtain an instance initialized with provided params. */
public static ClientTransaction obtain(IApplicationThread client, IBinder activityToken) {
ClientTransaction instance = ObjectPool.obtain(ClientTransaction.class);
if (instance == null) {
instance = new ClientTransaction();
}
instance.mClient = client;
instance.mActivityToken = activityToken;
return instance;
}
传入的 app.thread 会赋值给 ClientTransaction 的成员变量 mClient，所以 mClient 变量便是 IApplicationThread 方针即 ActivityThread 的内部类 ApplicationThread，其间 ApplicationThread 承继了 IApplicationThread.Stub。 所以业务终究是调用 app.thread 的 scheduleTransaction 履行。这儿经过 IApplicationThread 来与使用进程进行 Binder 通讯。所以代码回到了 ApplicationThread.ActivityThread 上。
到这为止 startActivity 操作就成功地从 ActivityTaskManagerService 搬运到了方针 Activity 中的 ApplicationThread 中，剩余的便是 ActivityTaskManagerService 经过进程间通讯机制告诉 ApplicationThread 履行 Activity 的生命周期办法。
3. ActivityTaskManagerService 向 Zygote 发送启用使用进程
在之前 ActivityStackSupervisor 的 startSpecificActivity 办法中，咱们看到由 ActivityTaskManagerService 的 startProcessAsync 办法来恳求发动新的使用进程。细心查看其间首要是调用了 ActivityManagerService 的 startProcess 办法
ActivityManagerService 的 startProcess
// ActivityManagerInternal 类
/** Starts a given process. */
public abstract void startProcess(String processName, ApplicationInfo info,
boolean knownToBeDead, boolean isTop, String hostingType, ComponentName hostingName);
// ActivityManagerService 类
@Override
public void startProcess(String processName, ApplicationInfo info, boolean knownToBeDead,
boolean isTop, String hostingType, ComponentName hostingName) {
try {
if (Trace.isTagEnabled(Trace.TRACE_TAG_ACTIVITY_MANAGER)) {
Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "startProcess:"
+ processName);
}
synchronized (ActivityManagerService.this) {
// If the process is known as top app, set a hint so when the process is
// started, the top priority can be applied immediately to avoid cpu being
// preempted by other processes before attaching the process of top app.
startProcessLocked(processName, info, knownToBeDead, 0 /* intentFlags */,
new HostingRecord(hostingType, hostingName, isTop),
ZYGOTE_POLICY_FLAG_LATENCY_SENSITIVE, false /* allowWhileBooting */,
false /* isolated */);
}
} finally {
Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
}
}
里边首要是 startProcessLocked 办法
@GuardedBy("this")
final ProcessRecord startProcessLocked(String processName,
ApplicationInfo info, boolean knownToBeDead, int intentFlags,
HostingRecord hostingRecord, int zygotePolicyFlags, boolean allowWhileBooting,
boolean isolated, boolean keepIfLarge) {
return mProcessList.startProcessLocked(processName, info, knownToBeDead, intentFlags,
hostingRecord, zygotePolicyFlags, allowWhileBooting, isolated, 0 /* isolatedUid */,
keepIfLarge, null /* ABI override */, null /* entryPoint */,
null /* entryPointArgs */, null /* crashHandler */);
}
依据一系列的调用，终究能够看到是由 ProcessList 中的 startProcess 办法处理，中心是进行到 Process 的 start 办法。
Process 的 start 办法
public static ProcessStartResult start(@NonNull final String processClass,
@Nullable final String niceName,
int uid, int gid, @Nullable int[] gids,
int runtimeFlags,
int mountExternal,
int targetSdkVersion,
@Nullable String seInfo,
@NonNull String abi,
@Nullable String instructionSet,
@Nullable String appDataDir,
@Nullable String invokeWith,
@Nullable String packageName,
int zygotePolicyFlags,
boolean isTopApp,
@Nullable long[] disabledCompatChanges,
@Nullable Map<String, Pair<String, Long>>
pkgDataInfoMap,
@Nullable Map<String, Pair<String, Long>>
whitelistedDataInfoMap,
boolean bindMountAppsData,
boolean bindMountAppStorageDirs,
@Nullable String[] zygoteArgs) {
return ZYGOTE_PROCESS.start(processClass, niceName, uid, gid, gids,
runtimeFlags, mountExternal, targetSdkVersion, seInfo,
abi, instructionSet, appDataDir, invokeWith, packageName,
zygotePolicyFlags, isTopApp, disabledCompatChanges,
pkgDataInfoMap, whitelistedDataInfoMap, bindMountAppsData,
bindMountAppStorageDirs, zygoteArgs);
}
不难发现 Process 的 start 办法只调用了 ZYGOTE_PROCESS 的 start 办法，ZYGOTE_PROCESS 类是用于坚持与 Zygote 进程的通讯状况。
ZygoteProcess 中的 start 办法中心是调用了 startViaZygote 办法，在这个办法终究咱们发现
synchronized(mLock) {
// The USAP pool can not be used if the application will not use the systems graphics
// driver. If that driver is requested use the Zygote application start path.
return zygoteSendArgsAndGetResult(openZygoteSocketIfNeeded(abi),
zygotePolicyFlags,
argsForZygote);
}
这儿面的第一个参数调用了openZygoteSocketIfNeeded办法，这儿会调用 ZygoteState 的 connect 办法与 Zygote 树立连接。
而 ZygoteProcess 的 zygoteSendArgsAndGetResult 办法首要是将传入的使用进程的发动参数 argsForZygote 写入到 ZygoteState 中。
到此就完结了 ActivityTaskManagerService 向 Zygote 发送启用使用进程。
4. ActivityThread 发动 Activity 的进程
在第三个章节咱们剖析了 ActivityTaskManagerService 将发动 Activity 的使命作为一个业务 ClientTransaction 去完结，在 ClientLifecycleManager 中会调用 ClientTransaction的schedule() 办法，而 mClient 是一个 IApplicationThread 接口类型，详细完结是 ActivityThread 的内部类 ApplicationThread。因而后续履行 Activity 生命周期的进程都是由 ApplicationThread 指导完结的，而调用 ActivityThread 的 scheduleTransaction 办法，而 ActivityThread 是承继自抽象类 ClientTransactionHandler，ActivityThread 没有重写该办法，所以这儿就会调用到 ClientTransactionHandler 的 scheduleTransaction 办法。详细如下：
public abstract class ClientTransactionHandler {
// Schedule phase related logic and handlers.
/** Prepare and schedule transaction for execution. */
void scheduleTransaction(ClientTransaction transaction) {
transaction.preExecute(this);
sendMessage(ActivityThread.H.EXECUTE_TRANSACTION, transaction);
}
}
调用 sendMessage 办法，向 Handler 中发送了一个 EXECUTE_TRANSACTION 的音讯，而且 Message 中的 obj 便是发动 Activity 的业务方针。而这个 Handler 的详细完结是 ActivityThread 中的 mH 方针。源码如下：
public final class ActivityThread extends ClientTransactionHandler
implements ActivityThreadInternal {
@UnsupportedAppUsage
final H mH = new H();
final Executor mExecutor = new HandlerExecutor(mH);
class H extends Handler {
public void handleMessage(Message msg) {
if (DEBUG_MESSAGES) Slog.v(TAG, ">>> handling: " + codeToString(msg.what));
switch (msg.what) {
case EXECUTE_TRANSACTION:
final ClientTransaction transaction = (ClientTransaction) msg.obj;
mTransactionExecutor.execute(transaction);
if (isSystem()) {
// Client transactions inside system process are recycled on the client side
// instead of ClientLifecycleManager to avoid being cleared before this
// message is handled.
transaction.recycle();
}
// TODO(lifecycler): Recycle locally scheduled transactions.
break;
}
}
}
}
能够看到这个音讯被 TransactionExecutor 处理了，履行了其间的 execute 办法
public void execute(ClientTransaction transaction) {
...
executeCallbacks(transaction);
executeLifecycleState(transaction);
mPendingActions.clear();
if (DEBUG_RESOLVER) Slog.d(TAG, tId(transaction) + "End resolving transaction");
}
内部是由 executeCallback 办法处理的
TransactionExecutor 的 executeCallback
@VisibleForTesting
public void executeCallbacks(ClientTransaction transaction) {
final List<ClientTransactionItem> callbacks = transaction.getCallbacks();
...
final int size = callbacks.size();
for (int i = 0; i < size; ++i) {
final ClientTransactionItem item = callbacks.get(i);
if (DEBUG_RESOLVER) Slog.d(TAG, tId(transaction) + "Resolving callback: " + item);
final int postExecutionState = item.getPostExecutionState();
final int closestPreExecutionState = mHelper.getClosestPreExecutionState(r,
item.getPostExecutionState());
if (closestPreExecutionState != UNDEFINED) {
cycleToPath(r, closestPreExecutionState, transaction);
}
item.execute(mTransactionHandler, token, mPendingActions);
item.postExecute(mTransactionHandler, token, mPendingActions);
if (r == null) {
// Launch activity request will create an activity record.
r = mTransactionHandler.getActivityClient(token);
}
if (postExecutionState != UNDEFINED && r != null) {
// Skip the very last transition and perform it by explicit state request instead.
final boolean shouldExcludeLastTransition =
i == lastCallbackRequestingState && finalState == postExecutionState;
cycleToPath(r, postExecutionState, shouldExcludeLastTransition, transaction);
}
}
}
这儿 callbacks 列表中寄存的是第二阶段中 ActivityStackSupervisor 的 realStartActivityLocked 办法
中创立业务时设置进去的。即 LaunchActivityItem 所以这儿是履行 LaunchActivityItem 方针的 execute 办法。
LaunchActivityItem 的 execute()
@Override
public void execute(ClientTransactionHandler client, IBinder token,
PendingTransactionActions pendingActions) {
Trace.traceBegin(TRACE_TAG_ACTIVITY_MANAGER, "activityStart");
ActivityClientRecord r = new ActivityClientRecord(token, mIntent, mIdent, mInfo,
mOverrideConfig, mCompatInfo, mReferrer, mVoiceInteractor, mState, mPersistentState,
mPendingResults, mPendingNewIntents, mIsForward,
mProfilerInfo, client, mAssistToken, mFixedRotationAdjustments);
client.handleLaunchActivity(r, pendingActions, null /* customIntent */);
Trace.traceEnd(TRACE_TAG_ACTIVITY_MANAGER);
}
其间的 handleLaunchActivity 是不是以及非常熟悉了，终于到了跟 Activity 生命周期相关的办法了，源码中 client 是 ClientTransationHandler 类型，实际完结类便是 ActivityThread。所以咱们能够看一下 ActivityThread 中的 handleLaunchActivity 办法了。
ActivityThread 的 handleLaunchActivity
这是一个比较重要的办法，Activity 的生命周期办法便是在这个办法中有序履行，详细如下：
@Override
public Activity handleLaunchActivity(ActivityClientRecord r,
PendingTransactionActions pendingActions, Intent customIntent) {
...
// 初始化 Activity 的 WindowManager
if (ThreadedRenderer.sRendererEnabled
&& (r.activityInfo.flags & ActivityInfo.FLAG_HARDWARE_ACCELERATED) != 0) {
HardwareRenderer.preload();
}
WindowManagerGlobal.initialize();
// Hint the GraphicsEnvironment that an activity is launching on the process.
GraphicsEnvironment.hintActivityLaunch();
// 调用 performLaunchActivity 创立并显现 Activity
final Activity a = performLaunchActivity(r, customIntent);
...
return a;
}
能够看到里边最中心的两个办法便是初始化 Activity 的 WindowManager，以及调用 performLaunchActivity 创立并显现 Activity。
ActivityThread 的 performLaunchActivity
/** Core implementation of activity launch. */
private Activity performLaunchActivity(ActivityClientRecord r, Intent customIntent) {
...
Activity activity = null;
try {
// 经过反射创立方针 Activity 方针
java.lang.ClassLoader cl = appContext.getClassLoader();
activity = mInstrumentation.newActivity(
cl, component.getClassName(), r.intent);
StrictMode.incrementExpectedActivityCount(activity.getClass());
...
} catch (Exception e) {
...
}
try {
if (activity != null) {
...
// 调用 attach 办法树立 Activity 与 Context 之间的联络，创立 PhoneWindow 方针，并与 Activity 进行相关操作
activity.attach(appContext, this, getInstrumentation(), r.token,
r.ident, app, r.intent, r.activityInfo, title, r.parent,
r.embeddedID, r.lastNonConfigurationInstances, config,
r.referrer, r.voiceInteractor, window, r.activityConfigCallback,
r.assistToken, r.shareableActivityToken);
...
// 经过 Instrumentation 终究调用 Activity 的 onCreate 办法
if (r.isPersistable()) {
mInstrumentation.callActivityOnCreate(activity, r.state, r.persistentState);
} else {
mInstrumentation.callActivityOnCreate(activity, r.state);
}
}
} catch (Exception e) {
...
}
return activity;
}
能够看到在 performLaunchActivity 办法中首要完结下面三件事：
- 经过反射创立方针 Activity 方针。
- 调用 attach 办法树立 Activity 与 Context 之间的联络，创立 PhoneWindow 方针，并与 Activity 进行相关操作。
- 经过 Instrumentation 终究调用 Activity 的 onCreate 办法。
Instrumentation 的 callActivityOnCreate
public void callActivityOnCreate(Activity activity, Bundle icicle) {
prePerformCreate(activity);
activity.performCreate(icicle);
postPerformCreate(activity);
}
performCreate 中会调用 Activity 的 onCreate。Activity 的发动就完结了。
至此，方针 Activity 现已被成功创立并履行生命周期办法。
总结
不得不说，Android 每一个版别之前源码都是有一些变动的，今天咱们剖析了依据 android-30 版别的Activity 的发动的完结流程。这一进程首要触及 4 个进程间的通讯进程：
- 首要 Launcher 进程经过 Binder 调用 ActivityTaskManagerService 的 startActivity 办法。
- 然后 ActivityTaskManagerService 经过一系列的核算结构方针 Intent，然后在 ActivityStack 与 ActivityStackSupervisor 中处理 Task 和 Activity 的入栈操作。
- ActivityTaskManagerService 经过 socket 调用向 Zygote 发送启用使用进程来达到创立使用进程的意图。
- 终究 ActivityTaskManagerService 经过 Binder 机制，调用方针进程中 ApplicationThread 的办法来创立并履行 Activity 生命周期办法，实际上 ApplicationThread 是 ActivityThread 的一个内部类，它的履行终究都调用到了 ActivityThread 中的相应办法。
