Spring Cloud Gateway + Nacos 灰度发布

前语

本文将会运用 SpringCloud Gateway 网关组件合作 Nacos 完成灰度发布（金丝雀发布）

环境搭建

创立子模块服务提供者provider，网关模块gateway

父项目

pom.xml 装备

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>com.example</groupId>
    <artifactId>spring-gateway-demo</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>pom</packaging>
    <name>spring-gateway-demo</name>
    <description>spring-gateway-demo</description>
    <properties>
        <java.version>11</java.version>
        <maven.compiler.source>11</maven.compiler.source>
        <maven.compiler.target>11</maven.compiler.target>
        <maven.compiler.plugin>3.8.1</maven.compiler.plugin>
        <spring-boot.version>2.3.7.RELEASE</spring-boot.version>
        <spring-cloud-alibaba.version>2.2.2.RELEASE</spring-cloud-alibaba.version>
        <spring-cloud.version>Hoxton.SR9</spring-cloud.version>
        <spring-cloud-starter-alibaba-nacos-config>2.2.0.RELEASE</spring-cloud-starter-alibaba-nacos-config>
    </properties>
    <modules>
        <module>provider</module>
        <module>gateway</module>
    </modules>
    <dependencies>
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>
    </dependencies>
    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring-cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-dependencies</artifactId>
                <version>${spring-boot.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-alibaba-dependencies</artifactId>
                <version>${spring-cloud-alibaba.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>
</project>

服务提供者 provider

这儿咱们方案引进nacos, 所以先创立一个 nacos 装备文件dataId为provider.properties, 这儿用默许的命名空间public, 默许分组DEFAULT_GROUP

version=2

provider 的 pom 装备依靠

<dependencies>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-test</artifactId>
        <scope>test</scope>
        <exclusions>
            <exclusion>
                <groupId>org.junit.vintage</groupId>
                <artifactId>junit-vintage-engine</artifactId>
            </exclusion>
        </exclusions>
    </dependency>
</dependencies>

application.yml

server:
  port: 9001
spring:
  application:
    name: provider
  cloud:
    nacos:
      config:
        server-addr: 127.0.0.1:8848
      discovery:
        server-addr: 127.0.0.1:8848

发动类上增加 @EnableDiscoveryClient 注解

@EnableDiscoveryClient
@SpringBootApplication
public class ProviderApplication {
    public static void main(String[] args) {
        SpringApplication.run(ProviderApplication.class, args);
    }
}

然后增加测验 controller

@RefreshScope
@RestController
@RequestMapping("/test")
public class TestController {
    @Autowired
    private Environment env;
    @Value("${version:0}")
    private String version;
    /**
     * http://localhost:9001/test/port
     * @return
     */
    @GetMapping("/port")
    public Object port() {
        return String.format("port=%s, version=%s", env.getProperty("local.server.port"), version);
    }
}

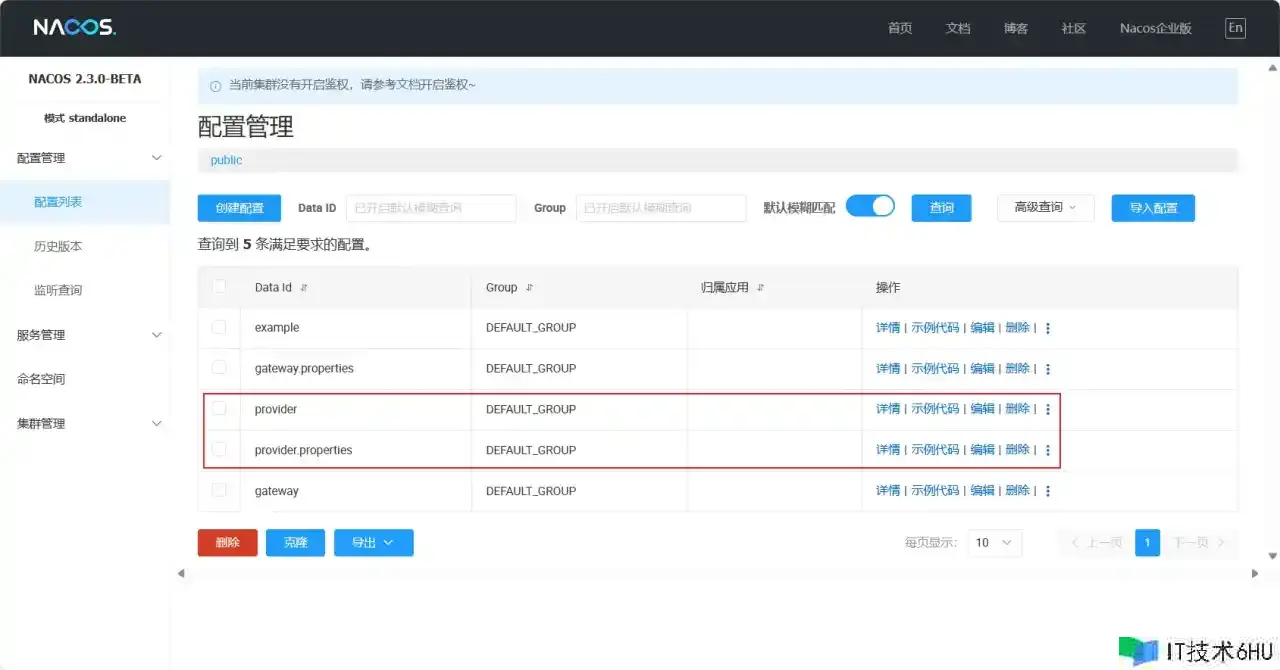

留意，这儿装备 nacos 的时分需求装备下面两个文件 provider.properties 和 provider，然后实践装备最终 nacos 是采用的 provider 文件，否则后端控制台就会持续输出 400 过错，可能是新版别问题，其他版别暂时不清楚（后边网关装备也是同理）

后端控制台输出，也能够看出需求两个

[fixed-localhost_8848] [subscribe] provider.properties DEFAULT_GROUP
[fixed-localhost_8848] [add-listener] ok, tenant=, dataId=provider.properties, group=DEFAULT_GROUP, cnt=1
[fixed-localhost_8848] [subscribe] provider DEFAULT_GROUP
[fixed-localhost_8848] [add-listener] ok, tenant=, dataId=provider, group=DEFAULT_GROUP, cnt=1

Nacos 版别：2.3.0-BETA

网关 gateway

gateway 服务的 pom 依靠装备如下:

    <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-gateway</artifactId>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
            <exclusions>
                <exclusion>
                    <groupId>org.junit.vintage</groupId>
                    <artifactId>junit-vintage-engine</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
    </dependencies>

application.yml

# 应用服务 WEB 拜访端口
server:
  port: 9000
# 应用名称
spring:
  application:
    name: gateway
  cloud:
    nacos:
      config:
        server-addr: 127.0.0.1:8848
      discovery:
        server-addr: 127.0.0.1:8848
    gateway:
      routes: # http://127.0.0.1:9000/actuator/gateway/routes
        - id: provider  # 路由 ID，保持仅有
          uri: lb://provider # uri指目标服务地址，lb代表从注册中心获取服务
          predicates:
            - Path=/provider/**  # http://127.0.0.1:9000/provider/port 会转发到 http://localhost:9001/provider/port, 和预期不符合, 需求StripPrefix来处理
          filters:
            - StripPrefix=1 # StripPrefix=1就代表截取途径的个数为1, 这样请求 http://127.0.0.1:9000/provider/test/port 会转发到 http://localhost:9001/test/port
management:
  endpoint:
    gateway:
      enabled: true
  endpoints:
    web:
      exposure:
        include: gateway

同样发动类上增加 @EnableDiscoveryClient 注解

检查所有路由：/actuator/gateway/routes 检查指定路由（GET）：/actuator/gateway/routes/{id} 检查大局过滤器：/actuator/gateway/globalfilters 检查路由过滤器：/actuator/gateway/routefilters POST 方法刷新路由缓存：/actuator/gateway/refresh

测验

curl http://127.0.0.1:9001/test/port
port=9001, version=2
curl http://127.0.0.1:9000/provider/test/port
port=9001, version=2

动态路由

完成动态路由有两种方法，一个是改写RouteDefinitionRepository（实测失利），一个是基于nacos的监听器给RouteDefinitionRepository动态更新值。完成逻辑大同小异

Spring Cloud Gateway 中加载路由信息分别由以下几个类负责 1、PropertiesRouteDefinitionLocator：从装备文件中读取路由信息 (如 YML、Properties 等) 2、RouteDefinitionRepository：从存储器中读取路由信息 (如内存、装备中心、Redis、MySQL 等) 3、DiscoveryClientRouteDefinitionLocator：从注册中心中读取路由信息(如 Nacos、Eurka、Zookeeper 等)

下面运用 RouteDefinitionRepository 装备动态路由

gateway-router.json

[{
    "id": "provider",
    "predicates": [{
        "name": "Path",
        "args": {
            "_genkey_0": "/provider/**"
        }
    }],
    "filters": [{
        "name": "StripPrefix",
        "args": {
            "_genkey_0": "1"
        }
    }],
    "uri": "lb://provider",
    "order": 0
}]

NacosRouteDefinitionRepository 装备类

@Component
public class NacosRouteDefinitionRepository implements RouteDefinitionRepository, ApplicationEventPublisherAware {
    private static final Logger log = LoggerFactory.getLogger(NacosRouteDefinitionRepository.class);
    @Autowired
    private NacosConfigManager nacosConfigManager;
    // 更新路由信息需求的
    private ApplicationEventPublisher applicationEventPublisher;
    private String dataId = "gateway-router.json";
    private String group = "DEFAULT_GROUP";
    @Value("${spring.cloud.nacos.config.server-addr}")
    private String serverAddr;
    private ObjectMapper objectMapper = new ObjectMapper();
    @PostConstruct
    public void dynamicRouteByNacosListener() {
        try {
            nacosConfigManager.getConfigService().addListener(dataId, group, new Listener() {
                public void receiveConfigInfo(String configInfo) {
                    log.info("自动更新装备...rn{}", configInfo);
                    applicationEventPublisher.publishEvent(new RefreshRoutesEvent(this));
                }
                public Executor getExecutor() {
                    return null;
                }
            });
        } catch (NacosException e) {
            e.printStackTrace();
        }
    }
    @Override
    public Flux<RouteDefinition> getRouteDefinitions() {
        try {
            String configInfo = nacosConfigManager.getConfigService().getConfig(dataId, group, 5000);
            List<RouteDefinition> gatewayRouteDefinitions = objectMapper.readValue(configInfo, new TypeReference<List<RouteDefinition>>() {
            });
            return Flux.fromIterable(gatewayRouteDefinitions);
        } catch (NacosException e) {
            e.printStackTrace();
        } catch (JsonMappingException e) {
            e.printStackTrace();
        } catch (JsonProcessingException e) {
            e.printStackTrace();
        }
        return Flux.fromIterable(Lists.newArrayList());
    }
    @Override
    public Mono<Void> save(Mono<RouteDefinition> route) {
        return null;
    }
    @Override
    public Mono<Void> delete(Mono<String> routeId) {
        return null;
    }
    @Override
    public void setApplicationEventPublisher(ApplicationEventPublisher applicationEventPublisher) {
        this.applicationEventPublisher = applicationEventPublisher;
    }
}

然后重启网关，拜访 http://127.0.0.1:9000/actuator/gateway/routes ，检查是否生效

[
    {
        "predicate": "Paths: [/provider/**], match trailing slash: true",
        "route_id": "provider",
        "filters": [
            "[[StripPrefix parts = 1], order = 1]"
        ],
        "uri": "lb://provider",
        "order": 0
    }
]

灰度发布

首要需求理解灰度的场景, 因为有不同版别的服务需求共存, 所以新的节点晋级的时分必然代码及装备会存在差别, 所以咱们依据这种差别来判断服务版别是新版别还是线上稳定版别。这儿咱们用prod和gray来标识 2 个版别。

完成的全体思路：

1. 编写带版别号的灰度路由(负载均衡战略)
2. 编写自定义 filter
3. nacos 服务装备需求灰度发布的服务的元数据信息以及权重(在服务 jar 中装备)

留意, 应该先修正 nacos 装备完成动态路由, 然后再晋级灰度节点. 本事例仅仅简略示例灰度原理。

下面进行网关装备

依靠装备

首要排除掉默许的 ribbon 依靠

        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
            <exclusions>
                <exclusion>
                    <groupId>org.springframework.cloud</groupId>
                    <artifactId>spring-cloud-starter-netflix-ribbon</artifactId>
                </exclusion>
            </exclusions>
        </dependency>

引进官方新的负载均衡包

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-loadbalancer</artifactId>
        </dependency>

负载均衡战略

public class VersionGrayLoadBalancer implements ReactorServiceInstanceLoadBalancer {
    private ObjectProvider<ServiceInstanceListSupplier> serviceInstanceListSupplierProvider;
    private String serviceId;
    private final AtomicInteger position;
    public VersionGrayLoadBalancer(ObjectProvider<ServiceInstanceListSupplier> serviceInstanceListSupplierProvider, String serviceId) {
        this(serviceInstanceListSupplierProvider, serviceId, new Random().nextInt(1000));
    }
    public VersionGrayLoadBalancer(ObjectProvider<ServiceInstanceListSupplier> serviceInstanceListSupplierProvider, String serviceId, int seedPosition) {
        this.serviceId = serviceId;
        this.serviceInstanceListSupplierProvider = serviceInstanceListSupplierProvider;
        this.position = new AtomicInteger(seedPosition);
    }
    @Override
    public Mono<Response<ServiceInstance>> choose(Request request) {
        HttpHeaders headers = (HttpHeaders) request.getContext();
        ServiceInstanceListSupplier supplier = this.serviceInstanceListSupplierProvider.getIfAvailable(NoopServiceInstanceListSupplier::new);
        return ((Flux) supplier.get()).next().map(list -> processInstanceResponse((List<ServiceInstance>) list, headers));
    }
    private Response<ServiceInstance> processInstanceResponse(List<ServiceInstance> instances, HttpHeaders headers) {
        if (instances.isEmpty()) {
            return new EmptyResponse();
        } else {
            String reqVersion = headers.getFirst("version");
            if (StringUtils.isEmpty(reqVersion)) {
                return processRibbonInstanceResponse(instances);
            }
            List<ServiceInstance> serviceInstances = instances.stream()
                    .filter(instance -> reqVersion.equals(instance.getMetadata().get("version")))
                    .collect(Collectors.toList());
            if (serviceInstances.size() > 0) {
                return processRibbonInstanceResponse(serviceInstances);
            } else {
                return processRibbonInstanceResponse(instances);
            }
        }
    }
    /**
     * 负载均衡器
     * 参阅 org.springframework.cloud.loadbalancer.core.RoundRobinLoadBalancer#getInstanceResponse
     *
     * @author javadaily
     */
    private Response<ServiceInstance> processRibbonInstanceResponse(List<ServiceInstance> instances) {
        int pos = Math.abs(this.position.incrementAndGet());
        ServiceInstance instance = instances.get(pos % instances.size());
        return new DefaultResponse(instance);
    }
}

过滤器加载负载均衡

public class GrayReactiveLoadBalancerClientFilter implements GlobalFilter, Ordered {
    private static final Log log = LogFactory.getLog(ReactiveLoadBalancerClientFilter.class);
    private static final int LOAD_BALANCER_CLIENT_FILTER_ORDER = 10150;
    private final LoadBalancerClientFactory clientFactory;
    private LoadBalancerProperties properties;
    public GrayReactiveLoadBalancerClientFilter(LoadBalancerClientFactory clientFactory, LoadBalancerProperties properties) {
        this.clientFactory = clientFactory;
        this.properties = properties;
    }
    @Override
    public int getOrder() {
        return LOAD_BALANCER_CLIENT_FILTER_ORDER;
    }
    @Override
    public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain) {
        URI url = exchange.getAttribute(ServerWebExchangeUtils.GATEWAY_REQUEST_URL_ATTR);
        String schemePrefix = exchange.getAttribute(ServerWebExchangeUtils.GATEWAY_SCHEME_PREFIX_ATTR);
        if (url != null && ("grayLb".equals(url.getScheme()) || "grayLb".equals(schemePrefix))) {
            ServerWebExchangeUtils.addOriginalRequestUrl(exchange, url);
            if (log.isTraceEnabled()) {
                log.trace(ReactiveLoadBalancerClientFilter.class.getSimpleName()   " url before: "   url);
            }
            return this.choose(exchange).doOnNext((response) -> {
                if (!response.hasServer()) {
                    throw NotFoundException.create(this.properties.isUse404(), "Unable to find instance for "   url.getHost());
                } else {
                    URI uri = exchange.getRequest().getURI();
                    String overrideScheme = null;
                    if (schemePrefix != null) {
                        overrideScheme = url.getScheme();
                    }
                    DelegatingServiceInstance serviceInstance = new DelegatingServiceInstance((ServiceInstance) response.getServer(), overrideScheme);
                    URI requestUrl = this.reconstructURI(serviceInstance, uri);
                    if (log.isTraceEnabled()) {
                        log.trace("LoadBalancerClientFilter url chosen: "   requestUrl);
                    }
                    exchange.getAttributes().put(ServerWebExchangeUtils.GATEWAY_REQUEST_URL_ATTR, requestUrl);
                }
            }).then(chain.filter(exchange));
        } else {
            return chain.filter(exchange);
        }
    }
    protected URI reconstructURI(ServiceInstance serviceInstance, URI original) {
        return LoadBalancerUriTools.reconstructURI(serviceInstance, original);
    }
    private Mono<Response<ServiceInstance>> choose(ServerWebExchange exchange) {
        URI uri = (URI) exchange.getAttribute(ServerWebExchangeUtils.GATEWAY_REQUEST_URL_ATTR);
        VersionGrayLoadBalancer loadBalancer = new VersionGrayLoadBalancer(clientFactory.getLazyProvider(uri.getHost(), ServiceInstanceListSupplier.class), uri.getHost());
        if (loadBalancer == null) {
            throw new NotFoundException("No loadbalancer available for "   uri.getHost());
        } else {
            return loadBalancer.choose(this.createRequest(exchange));
        }
    }
    private Request createRequest(ServerWebExchange exchange) {
        HttpHeaders headers = exchange.getRequest().getHeaders();
        Request<HttpHeaders> request = new DefaultRequest<>(headers);
        return request;
    }
}

注入过滤器

@Configuration
public class GrayGatewayReactiveLoadBalancerClientAutoConfiguration {
    @Bean
    @ConditionalOnMissingBean({GrayReactiveLoadBalancerClientFilter.class})
    public GrayReactiveLoadBalancerClientFilter grayReactiveLoadBalancerClientFilter(LoadBalancerClientFactory clientFactory, LoadBalancerProperties properties) {
        return new GrayReactiveLoadBalancerClientFilter(clientFactory, properties);
    }
}

发布灰度服务

生产环境装备文件 application-prod.yml

server:
  port: 9002
spring:
  application:
    name: provider
  cloud:
    nacos:
      config:
        server-addr: 127.0.0.1:8848
      discovery:
        metadata:
          version: prod
        server-addr: 127.0.0.1:8848

灰度环境装备文件 application-gray.yml

server:
  port: 9003
spring:
  application:
    name: provider
  cloud:
    nacos:
      config:
        server-addr: 127.0.0.1:8848
      discovery:
        metadata:
          version: gray
        server-addr: 127.0.0.1:8848

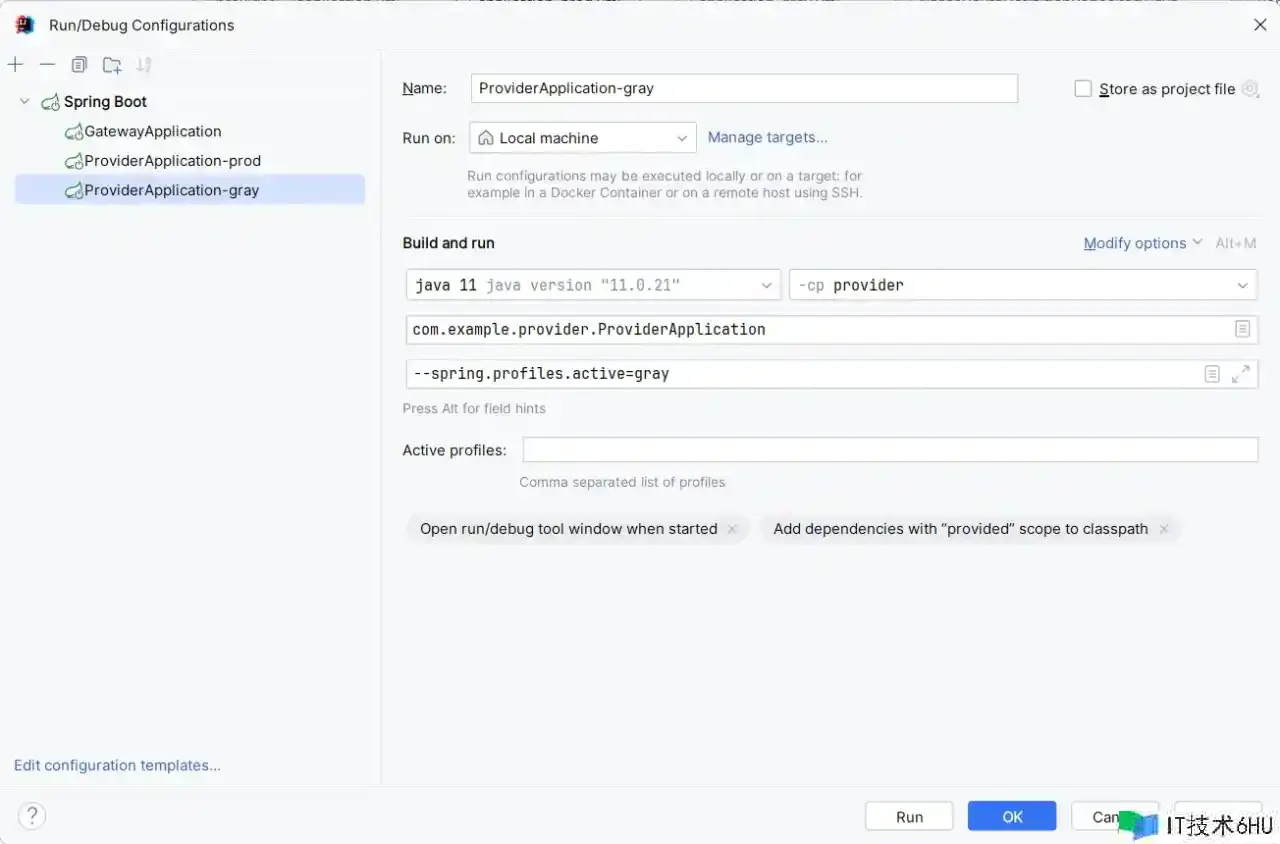

idea 发动参数指定装备文件

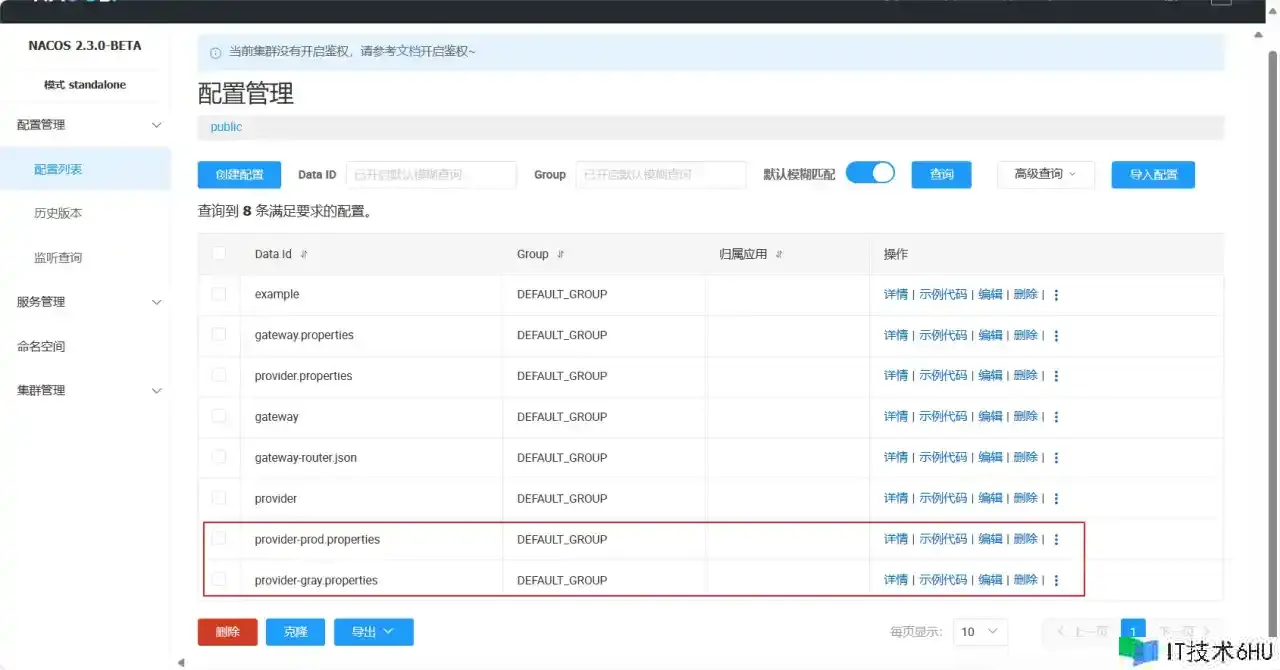

一起留意装备两个环境的 nacos 文件（prod version: 4，gray version: 5）

测验

然后分别发动三个服务：9000 端口网关 gateway 服务，9002 端口生产环境 provider-prod 服务，9003 端口灰度环境 provider-gray 服务

E:Nacosnacos>curl http://127.0.0.1:9000/provider/test/port
port=9003, version=5
E:Nacosnacos>curl -X GET -H "version:prod" http://127.0.0.1:9000/provider/test/port
port=9003, version=5
E:Nacosnacos>curl -X GET -H "version:gray" http://127.0.0.1:9000/provider/test/port
port=9002, version=4

库房地址

假如关于文章中代码有疑问，能够直接检查下方作者库房

库房地址：ReturnTmp/spring-gateway-demo: 网关装备 灰度发布 装备中心 示例库房 (github.com)

参阅链接

• Spring Cloud Gateway nacos灰度发布 – (juejin.cn)
• SpringCloud gateway Actuator – shigp1 – 博客园 (cnblogs.com)
• Spring Cloud Gateway监控 周立的博客
• 前端灰度发布落地方案-腾讯云开发者社区-腾讯云 (tencent.com)
• 后端 – 灰度发布架构设计！值得品鉴

本文由博客一文多发平台 OpenWrite 发布！
