使用UICollectionViewFlowLayout实现瀑布流

完结瀑布流的运用的关键类是 UICollectionViewFlowLayout,假如咱们不继承直接运用的话,体系已经帮咱们完结了一些作用,比方横向或许竖向滑动,然后装备一些特点或许遵循 UICollectionViewDelegateFlowLayout,来显现个性化的作用.可是有些布局需求咱们去完结,比方瀑布流的作用. UICollectionViewFlowLayout十分强壮,咱们基本上能够任何咱们想要的作用,在这儿只说一下瀑布流的完结,其他作用能够依据这个来进行不同的变形和修正.

下面临 UICollectionViewFlowLayout 类的必要办法做简略介绍

当第一次加载布局或许布局失效的时分,会调用该办法,咱们要在这儿完结详细的布局核算.
 func prepare()

父类需求依据回来的contentsize巨细,控制uicollectionview的显现
 override public var collectionViewContentSize: CGSize

核算每个item的布局特点,咱们将要调用该办法去核算每个item的布局,在添加,改写item的时分,该办法也会调用,假如咱们需求完结自定义的动画作用,需求在核算中做些调整,下面讲到改写和添加的时分会详细看一下办法的影响.
public override func layoutAttributesForItem(at indexPath: IndexPath) -> UICollectionViewLayoutAttributes?

假如咱们需求支持头视图和脚视图,那么需求重写该办法
public override func layoutAttributesForSupplementaryView(ofKind elementKind: String, at indexPath: IndexPath) -> UICollectionViewLayoutAttributes? {

装修视图的布局核算
public override func layoutAttributesForDecorationView(ofKind elementKind: String, at indexPath: IndexPath) -> UICollectionViewLayoutAttributes?

其实上面三个回来布局的办法原理一样,就是依据在UICollectionViewFlowLayout特点装备或许署理办法中回来的特点体系所做的最原始核算,咱们需求依据体系所核算的成果来修正成咱们想要的成果,假如不适用体系的成果,直接运用自己核算的也是能够的.

这个办法比较关键,咱们需求将核算法的UICollectionViewLayoutAttributes数组回来给显现的rect,体系会依据特点数组来核算cell的复用和布局的显现.
override public func layoutAttributesForElements(in rect: CGRect) -> [UICollectionViewLayoutAttributes]?

下面说一下布局方面详细的运用:

创建自定义类,继承自 UICollectionViewFlowLayout
@objc public class FlowLayout: UICollectionViewFlowLayout {
    // 分区的内容信息,用来做布局处理
    private lazy var sectionInfos: [Int: UsedCarSectionInfo] = [:]
}
//创建私有类,用于布局核算
private class UsedCarSectionInfo{
    typealias LayoutAttribute = UICollectionViewLayoutAttributes
    private var linesLastValue:[Int:CGRect] = [:]
    var headerAttribute:LayoutAttribute?
    var itemAttribute:[LayoutAttribute] = []
    var footerAttribute:LayoutAttribute?
    var decorAttribute:LayoutAttribute?
    let colum:Int
    let origin:CGPoint
    let itemWidth:CGFloat
    let minimumInteritemSpacing:CGFloat
    let celledgeInset:UIEdgeInsets
}

咱们的核算布局支持多分区,这儿用字典sectionInfos储存多分区的核算信息.

  /**
     当调集视图第一次显现其内容时，以及当因为视图的更改而显式或隐式地使布局失效时，就会发生布局更新。在每次布局更新期间，调集视图首要调用这个办法，让布局目标有机会为即将到来的布局操作做准备。
     这个办法的默许完结不做任何事情。子类能够覆盖它，并运用它来设置数据结构或履行后续履行布局所需的任何初始核算。
     */
override public func prepare() {
    super.prepare()
   sectionInfos.removeAll()
   let sectionNum = collectionView.numberOfSections
        /// 获取到分区
        for sectionIndex in 0 ..< sectionNum {
            let section = IndexPath(row: 0, section: sectionIndex)
            let cellEdge = delegate.collectionView(collectionView, layout: self, sectionInsetForItems: sectionIndex)
            ///获取section的列距离
            let lineSpace = delegate.collectionView(collectionView, layout: self, minimumLineSpacing: sectionIndex)
            /// 查看布局中存在几列
            let colum = delegate.collectionView(collectionView, layout: self, colum: sectionIndex)
            let sectionInfo = UsedCarSectionInfo(colum: colum, itemWidth: getItemWidth(for: sectionIndex), minimumInteritemSpacing: minimumInteritemSpacing, edgeInset: cellEdge)
            sectionInfos[sectionIndex] = sectionInfo
            /// 处理header数据
            if let att = layoutAttributesForSupplementaryView(ofKind: UICollectionView.elementKindSectionHeader, at: section)?.copy() as? LayoutAttribute {
                var maxY: CGFloat = 0
                if section.section > 0, let preInfo = sectionInfos[section.section - 1] { maxY = preInfo.maxY() }
                var frame = att.frame
                frame.origin = CGPoint(x: frame.origin.x, y: maxY)
                att.frame = frame
                sectionInfo.headerAttribute = att
            }
            /// 处理cell数据
            let cellNumForSection = collectionView.numberOfItems(inSection: sectionIndex)
            for index in 0 ..< cellNumForSection {
                let indexPath = IndexPath(row: index, section: sectionIndex)
                if let att = layoutAttributesForItem(at: indexPath)?.copy() as? LayoutAttribute {
                    var frame = att.frame
                    let height = delegate.collectionView(collectionView, layout: self, itemWidth: sectionInfo.itemWidth, caculateHeight: indexPath)
                    frame.size = .init(width: sectionInfo.itemWidth, height: height)
                    var newOrigin = CGPoint.zero
                    if indexPath.row == 0 {
                        newOrigin = .init(x: sectionInfo.origin.x, y: maxY() + sectionInfo.celledgeInset.top)
                        frame.origin = newOrigin
                        sectionInfo.initLinesLastValue(frame)
                    } else {
                        ///查找当时section中哪列最短
                        let tuple = sectionInfo.findExtremeValue(false)
                        let caluteMinimumLineSpacing = tuple.1.size.height < 0 ? 0 : lineSpace
                        newOrigin = CGPoint(x: tuple.1.minX, y: tuple.1.maxY + caluteMinimumLineSpacing)
                        frame.origin = newOrigin
                        sectionInfo.updateRect(colum: tuple.0, value: frame)
                    }
                    att.frame = frame
                    sectionInfo.itemAttribute.append(att)
                }
            }
            // 处理footer数据
            if let att = layoutAttributesForSupplementaryView(ofKind: UICollectionView.elementKindSectionFooter, at: section)?.copy() as? LayoutAttribute {
                var maxY: CGFloat = 0
                maxY = sectionInfo.maxY()
                var frame = att.frame
                frame.origin = CGPoint(x: frame.origin.x, y: maxY)
                att.frame = frame
                sectionInfo.footerAttribute = att
            }
            if section.section == 0{
                if let att = layoutAttributesForDecorationView(ofKind: "UCCateDecorationView", at: section)?.copy() as? LayoutAttribute{
                    let offsetX:CGFloat = 400
                    let newOrigin = CGPoint.init(x: collectionView.bounds.origin.x, y: sectionInfo.minY() - offsetX)
                    let newSize = CGSize.init(width: collectionView.bounds.width, height: sectionInfo.maxY() - sectionInfo.minY() + offsetX)
                    att.frame = CGRect.init(origin: newOrigin, size: newSize)
                    sectionInfo.decorAttribute = att
                }
            }
        }
}

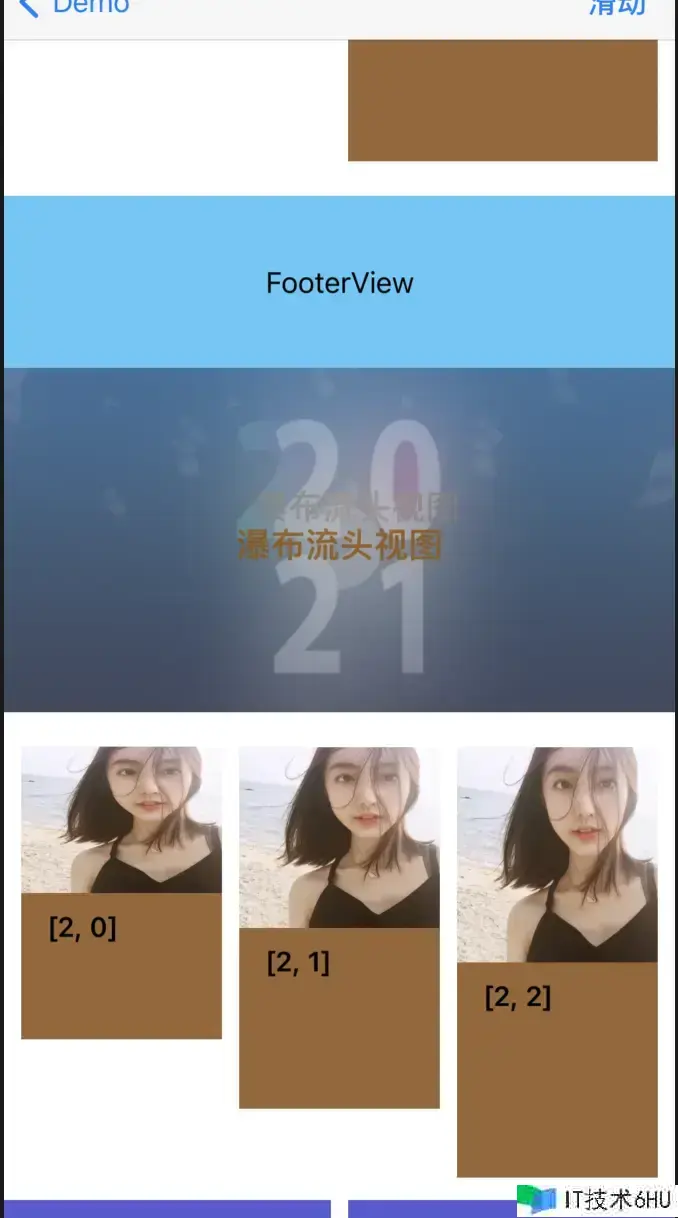

核算原理如下,咱们需求获取到存在几个分区,然后布局该分区内的每个item的信息
假如咱们从上自下顺次布局显现的话,那么应该是:
头视图->分区内每个item的信息->脚视图->然后装修视图
装修视图能够依据详细需求来核算,纷歧定在最后.在该作用中,我用绿色的背景来完结装修视图,因为覆盖当时的分区,所以需求知道footer的核算成果,因此装修视图的核算放在了最后,用来知道当时分区的Y轴最大值.

假如只需求完结这种布局,那么每个条目对应的体系能够就不能够不必重写.
在回来contentsize的办法中回来详细的巨细

 override public var collectionViewContentSize: CGSize {
        if let collectionView = self.collectionView {
            let contentSize = CGSize(width: collectionView.bounds.width, height: max(maxY(), collectionView.bounds.height))
            return contentSize
        }
        return .zero
    }

 /// 回来当时rect中包含的布局信息
    override public func layoutAttributesForElements(in rect: CGRect) -> [UICollectionViewLayoutAttributes]? {
        return sectionInfos.values.flatMap { (info) -> [LayoutAttribute] in
            var arr = [UICollectionViewLayoutAttributes]()
            if let header = info.headerAttribute, header.frame.intersects(rect) {
                arr.append(header)
            }
            arr.append(contentsOf: info.itemAttribute.filter { $0.frame.intersects(rect) })
            if let footer = info.footerAttribute, footer.frame.intersects(rect) {
                arr.append(footer)
            }
            if let att = info.decorAttribute,att.frame.intersects(rect){
                arr.append(att)
            }
            return arr
        }
    }

@objc public protocol UICollectionViewDelegateWaterFlowLayout: UICollectionViewDelegateFlowLayout {
    /**
     回来当时section中的列数
     */
    func collectionView(_ collectionView: UICollectionView, layout collectionViewLayout: UICollectionViewLayout, colum section: Int) -> Int
    /**
     回来当时section中cell的行距离
     */
    func collectionView(_ collectionView: UICollectionView, layout collectionViewLayout: UICollectionViewLayout, minimumLineSpacing section: Int) -> CGFloat
    /**
     回来当时section中cell的内距离
     */
    func collectionView(_ collectionView: UICollectionView, layout collectionViewLayout: UICollectionViewLayout, sectionInsetForItems section: Int) -> UIEdgeInsets
    /**
     回来当时indexpath的高度,能够依据宽度来核算
     */
    func collectionView(_ collectionView: UICollectionView, layout collectionViewLayout: UICollectionViewLayout, itemWidth: CGFloat, caculateHeight indexPath: IndexPath) -> CGFloat
}

让咱们的collectionview完结上面的署理办法,用来完结不同的布局装备,这样咱们就能够像体系的布局署理一样,便利调用.下面看一下控制器中的完结,完结不同的署理办法,用来装备不同分区的内容显现

extension MyCollectionViewController:UICollectionViewDelegate,UICollectionViewDataSource,UICollectionViewDelegateWaterFlowLayout{
    func collectionView(_ collectionView: UICollectionView, layout collectionViewLayout: UICollectionViewLayout, minimumLineSpacing section: Int) -> CGFloat {
        return 10
    }
    func collectionView(_ collectionView: UICollectionView, layout collectionViewLayout: UICollectionViewLayout, colum section: Int)
    -> Int {
        if section == 0 {
            return 1
        }
        if section == 1 {
            return 2
        }
        return 3
    }
    func collectionView(_ collectionView: UICollectionView, layout collectionViewLayout: UICollectionViewLayout, referenceSizeForHeaderInSection section: Int) -> CGSize {
        return CGSize.init(width: collectionView.bounds.width, height: 200)
    }
    func collectionView(_ collectionView: UICollectionView, layout collectionViewLayout: UICollectionViewLayout, referenceSizeForFooterInSection section: Int) -> CGSize {
        .init(width: collectionView.bounds.width, height: 100)
    }
    func collectionView(_ collectionView: UICollectionView, layout collectionViewLayout: UICollectionViewLayout, sectionInsetForItems section: Int) -> UIEdgeInsets{
        return UIEdgeInsets.init(top: 20, left: 10, bottom: 20, right: 10)
    }
    func collectionView(_ collectionView: UICollectionView, viewForSupplementaryElementOfKind kind: String, at indexPath: IndexPath) -> UICollectionReusableView {
        if kind == UICollectionView.elementKindSectionHeader {
            let view =   collectionView.dequeueReusableSupplementaryView(ofKind: UICollectionView.elementKindSectionHeader, withReuseIdentifier: "FlowCollectionReusableView", for: indexPath)
            return view
        }else{
            let view =   collectionView.dequeueReusableSupplementaryView(ofKind: UICollectionView.elementKindSectionFooter, withReuseIdentifier: "CollectionReusableFooterView", for: indexPath)
            return view
        }
    }
    func collectionView(_ collectionView: UICollectionView, layout collectionViewLayout: UICollectionViewLayout, itemWidth:CGFloat ,caculateHeight indexPath: IndexPath) -> CGFloat{
        return CGFloat(indexPath.row * 40 + 170)
    }
    func numberOfSections(in collectionView: UICollectionView) -> Int {
        return 3
    }
    func collectionView(_ collectionView: UICollectionView, numberOfItemsInSection section: Int) -> Int {
        if section == 1 {
            return dataCount
        }
        return self.otherDataCount
    }
    func collectionView(_ collectionView: UICollectionView, cellForItemAt indexPath: IndexPath) -> UICollectionViewCell {
        let cell = collectionView.dequeueReusableCell(withReuseIdentifier: "cell", for: indexPath) as! FlowlayoutCell
        cell.textLab.text = "(indexPath)"
        return cell
    }
}

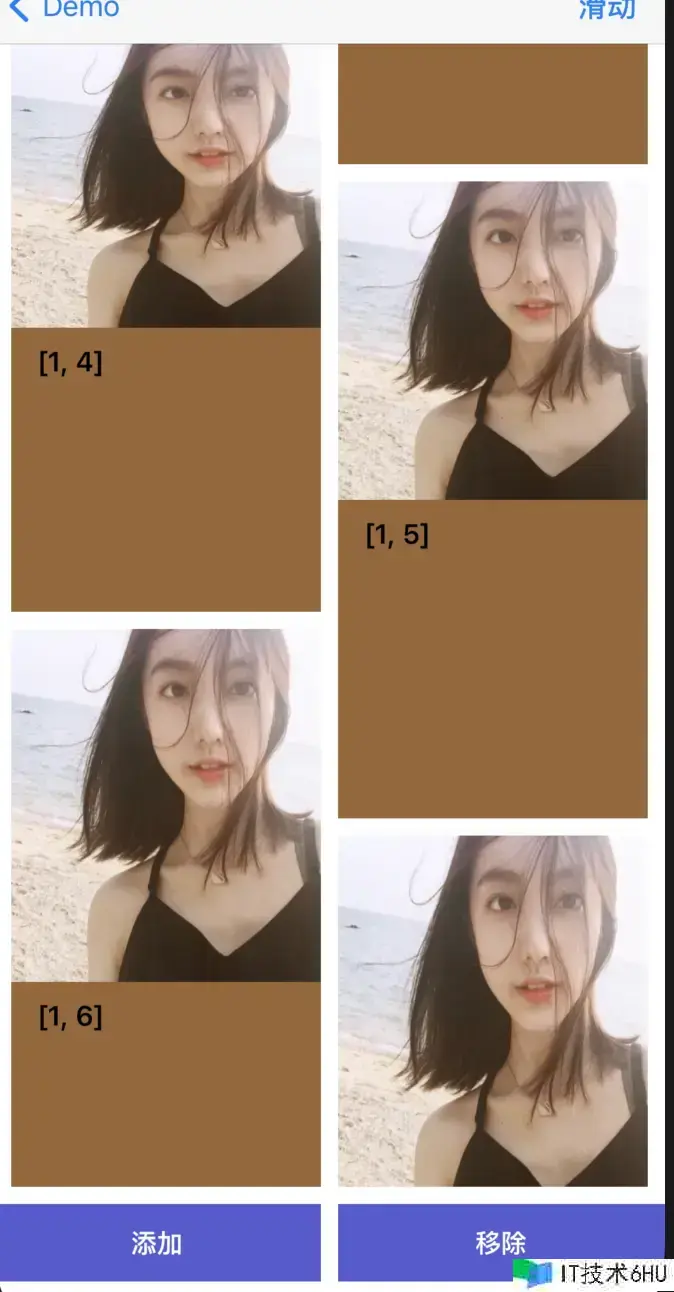

完结上面的办法,那么瀑布流的作用已经能够完结了.

下面说一下如何滑动到详细的分区,或许item方位.

/// 滑动署理事情
extension FlowLayout {
   //滑动到分区的头视图,传入分区信息
    @objc public func scrollToHeader(with section: Int) {
        let indexPath = IndexPath(row: 0, section: section)
        scrollWith(indexPath, isHeader: true, isFooter: false)
    }
    //滑动到分区的脚视图,传入分区信息
    @objc public func scrollToFooter(with section: Int) {
        let indexPath = IndexPath(row: 0, section: section)
        scrollWith(indexPath, isHeader: false, isFooter: true)
    }
   // 滑动到详细的indexpath
    @objc public func scrolllToIndex(index: IndexPath) {
        scrollWith(index, isHeader: false, isFooter: false)
    }
    private func scrollWith(_ indexPath: IndexPath, isHeader: Bool, isFooter: Bool) {
        let sectionInfo = sectionInfos[indexPath.section]
        if isHeader, let att = sectionInfo?.headerAttribute {
            collectionView?.setContentOffset(CGPoint(x: 0, y: att.frame.origin.y), animated: true)
            return
        }
        if isHeader, let att = sectionInfo?.footerAttribute {
            collectionView?.setContentOffset(CGPoint(x: 0, y: att.frame.origin.y), animated: true)
            return
        }
        if let att = sectionInfo?.itemAttribute[indexPath.row] {
            collectionView?.setContentOffset(CGPoint(x: 0, y: att.frame.origin.y), animated: true)
        }
    }
}

完结上面的办法,咱们能够灵敏的滑动到任何元素的方位.
在控制器中调用,这儿咱们写死的第二个分区的第4个条目,便利测试

    @objc func scrollAction(){
        if let layout = collectionView.collectionViewLayout as? FlowLayout{
            if dataCount > 4 {
                layout.scrolllToIndex(index: IndexPath.init(row: 4, section: 1))
            }
        }
    }

能够看到这儿很准确的滑动到输入的方位.

下面说一下咱们优化添加,删去和改写作用

添加三个数组,用来完结不同的操作,体系有四种不同的操作事情.

 public enum Action : Int {
        case insert = 0
        case delete = 1
        case reload = 2
        case move = 3
        case none = 4
    }

    // 刺进的条目 --- 操作数组 ---
    private lazy var insertingIndexPaths = [IndexPath]()
    // 改写的条目
    private lazy var reloadIndexPaths    = [IndexPath]()
    // 删去的条目
    private lazy var deletingIndexPaths  = [IndexPath]()
    // --- 操作数组 ---

/// 监听视图内容item改变操作,假如item有改变操作会履行该办法
override public func prepare(forCollectionViewUpdates updateItems: [UICollectionViewUpdateItem]) {
}
  /// item将要显现的时分调用,处理相关动画
    override public func initialLayoutAttributesForAppearingItem(at itemIndexPath: IndexPath) -> UICollectionViewLayoutAttributes? {
}
  /// 删去item会履行此署理办法,处理删去相关的动画
    override public func finalLayoutAttributesForDisappearingItem(at itemIndexPath: IndexPath) -> UICollectionViewLayoutAttributes? {
}
 /// 视图改变完结调用
    override public func finalizeCollectionViewUpdates() {
}

下面看一下详细的完结:

   /// 监听视图内容item改变操作
    override public func prepare(forCollectionViewUpdates updateItems: [UICollectionViewUpdateItem]) {
        super.prepare(forCollectionViewUpdates: updateItems)
        for update in updateItems {
            if let indexPath = update.indexPathAfterUpdate,update.updateAction == .insert {
                insertingIndexPaths.append(indexPath)
            }
            if let indexPath = update.indexPathAfterUpdate, update.updateAction == .reload {
                reloadIndexPaths.append(indexPath)
            }
            if let indexPath = update.indexPathBeforeUpdate, update.updateAction == .delete {
                deletingIndexPaths.append(indexPath)
            }
        }
    /// item将要显现的时分调用,处理相关动画
    override public func initialLayoutAttributesForAppearingItem(at itemIndexPath: IndexPath) -> UICollectionViewLayoutAttributes? {
        let attributes = super.initialLayoutAttributesForAppearingItem(at: itemIndexPath)
        if insertingIndexPaths.contains(itemIndexPath), let copyModel = attributes?.copy() as? LayoutAttribute {
            if let sectionInfo = sectionInfos[itemIndexPath.section], sectionInfo.itemAttribute.count > itemIndexPath.row {
                let att = sectionInfo.itemAttribute[itemIndexPath.row]
                copyModel.alpha = 0
                copyModel.frame = att.frame
                copyModel.transform = CGAffineTransform(scaleX: 0.3, y: 0.3)
            }
            return copyModel
        }
        if reloadIndexPaths.contains(itemIndexPath), let copyModel = attributes?.copy() as? LayoutAttribute {
            if let sectionInfo = sectionInfos[itemIndexPath.section], sectionInfo.itemAttribute.count > itemIndexPath.row {
                let att = sectionInfo.itemAttribute[itemIndexPath.row]
                copyModel.alpha = 0
                copyModel.frame = att.frame
            }
            return copyModel
        }
        return attributes
    }
    /// 视图改变完结调用
    override public func finalizeCollectionViewUpdates() {
        super.finalizeCollectionViewUpdates()
        insertingIndexPaths.removeAll()
        deletingIndexPaths.removeAll()
        reloadIndexPaths.removeAll()
    }
    /// 删去item会履行此署理办法,处理删去相关的动画
    override public func finalLayoutAttributesForDisappearingItem(at itemIndexPath: IndexPath) -> UICollectionViewLayoutAttributes? {
        let attributes = super.finalLayoutAttributesForDisappearingItem(at: itemIndexPath)
        if deletingIndexPaths.contains(itemIndexPath), let copyModel = attributes?.copy() as? LayoutAttribute {
            copyModel.alpha = 0.0
            copyModel.transform = CGAffineTransform(scaleX: 0.2, y: 0.2)
            return copyModel
        }
        return attributes
    }

这儿咱们完结了添加,删去和改写条目的动画
这儿要说下面,在添加条目的时分会调用的layoutAttributesForItem,回来的不是咱们核算好的attribute,会导致显现动画反常,所以在这咱们做额外的操作,假如已经有核算好的布局,那么履行运用,然后在添加的署理办法中完结详细的改变操作.现在咱们的添加,删去完结可CGAffineTransform和alpha改变的作用,改写完结了alpha改变的作用.假如需求完结其他的动画作用,能够依据这个来进行改变.

   /// 没有直接回来super调用,是因为在添加,删去,改写等操作中,会再次履行该办法,布局核算是以当时的item的下一个做改变操作,和要求动画不符
    override public func layoutAttributesForItem(at indexPath: IndexPath) -> UICollectionViewLayoutAttributes? {
        if let sectionInfo = sectionInfos[indexPath.section], sectionInfo.itemAttribute.count > indexPath.row {
            return sectionInfo.itemAttribute[indexPath.row]
        }
        return super.layoutAttributesForItem(at: indexPath)
    }

参考：juejin.cn/post/684490…
