一、CarService的根本架构

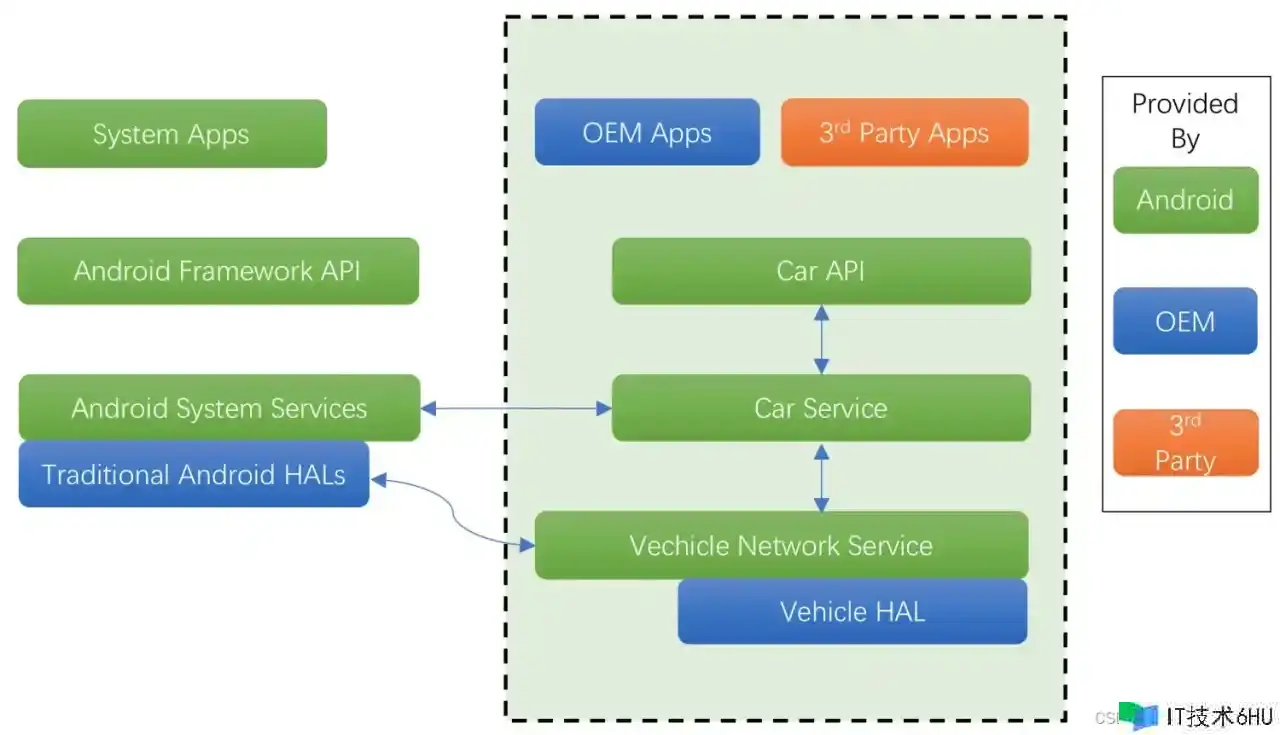

1.1、Android Automative整体结构

  1. Car App：包括OEM和第三方开发的App

  2. Car API：内有包括 CarSensorManager 在内的 API。坐落 /platform/packages/services/Car/car-lib。

  3. CarService：体系中与车相关的服务，坐落 /platform/packages/services/Car/目录。

  4. 车载 HAL：用于界说 OEM 能够完成的车辆特点的接口。包括特点元数据（例如，车辆特点是否为 int 以及答应运用哪些更改形式）。坐落 hardware/libhardware/include/hardware/vehicle.h。如需了解根本参考完成，请参阅 hardware/libhardware/modules/vehicle/。

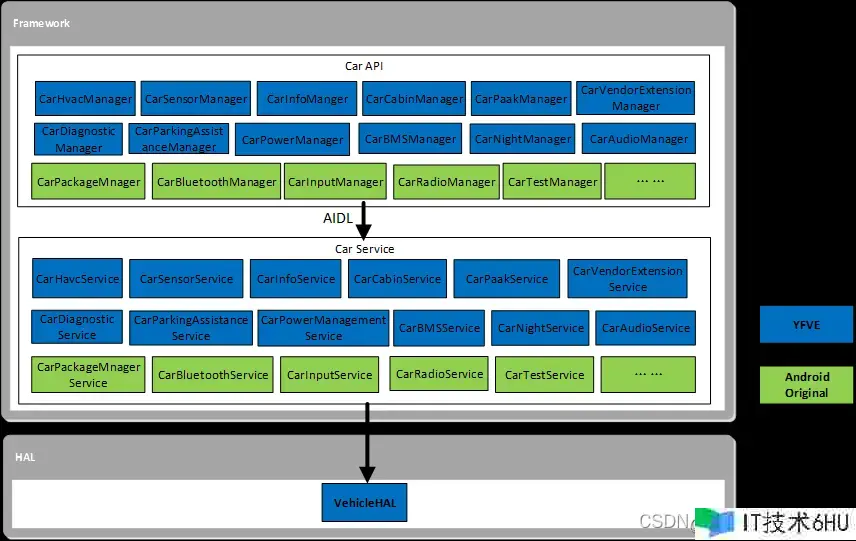

1.2、Framework CarService

  Android O/P为Automotive场景供给了一系列的服务，这些服务统被称为CarService。它们与HAL层的VehicleHAL通讯，从而经过车载总线(例如CAN总线)与车身进行通讯，同时它们还为使用层的APP供给接口，从而让APP能够完成对车身的控制与状态的显示。

  CarManage坐落packages/services/Car/car-lib/src/android/car/hardware目录，CarService坐落packages/services/Car/service/src/com/android/car目录。

1.3、目录结构

1.3.1、CarService

├── Android.mk
├── apicheck.mk
├── apicheck_msg_current.txt
├── apicheck_msg_last.txt
├── car-cluster-logging-renderer    //LoggingClusterRenderingService承继InstrumentClusterRenderingService
├── car-default-input-service       //按键消息处理
├── car-lib                         //供给给汽车App特有的接口，许多定制的模块都在这儿完成，包括Sensor,HVAC,Cabin,ActiveParkingAssiance,Diagnostic,Vendor等
├── car-maps-placeholder            //地图软件相关
├── car_product                     //体系编译相关
├── car-support-lib                 //android.support.car
├── car-systemtest-lib              //体系测验相关
├── car-usb-handler                 //开机自启，用于办理车机USB
├── CleanSpec.mk
├── evs
├── obd2-lib
├── PREUPLOAD.cfg
├── procfs-inspector
├── service                         //com.android.car是一个后台运转的组件，能够长期运转并且不需求和用户去交互的，这儿即便使用被毁掉，它也能够正常工作
├── tests
├── tools                           //是一系列的东西，要说到的是里边的emulator，测验需求用到的。python写的，经过adb能够连接vehicleHal的东西，用于模拟测验
├── TrustAgent
└── vehicle-hal-support-lib

1.3.2、Car APP

  Car APP的相关源码坐落packages/apps/Car/目录，其中packages/services/Car/car_product/build/car.mk里边决定了需求编译哪些相关apk（system/priv-app）。

  packages/services/Car/car_product/build/car.mk内容如下：

# Common make file for all car builds
PRODUCT_PUBLIC_SEPOLICY_DIRS += packages/services/Car/car_product/sepolicy/public
PRODUCT_PRIVATE_SEPOLICY_DIRS += packages/services/Car/car_product/sepolicy/private
PRODUCT_PACKAGES +=
    Bluetooth
    CarActivityResolver
    CarDeveloperOptions
    CarSettingsIntelligence
    CarManagedProvisioning
    OneTimeInitializer
    CarProvision
    StatementService
    SystemUpdater
PRODUCT_PACKAGES +=
    clatd
    pppd
    screenrecord
# This is for testing
ifneq (,$(filter userdebug eng, $(TARGET_BUILD_VARIANT)))
PRODUCT_PACKAGES +=
    DefaultStorageMonitoringCompanionApp
    EmbeddedKitchenSinkApp
    GarageModeTestApp
    ExperimentalCarService
    BugReportApp
    NetworkPreferenceApp
    SampleCustomInputService
    AdasLocationTestApp
    curl
# SEPolicy for test apps / services
BOARD_SEPOLICY_DIRS += packages/services/Car/car_product/sepolicy/test
endif
# ClusterOsDouble is the testing app to test Cluster2 framework and it can handle Cluster VHAL
# and do some Cluster OS role.
ifeq ($(ENABLE_CLUSTER_OS_DOUBLE), true)
PRODUCT_PACKAGES += ClusterHomeSample ClusterOsDouble
else
# DirectRenderingCluster is the sample app for the old Cluster framework.
PRODUCT_PACKAGES += DirectRenderingCluster
endif  # ENABLE_CLUSTER_OS_DOUBLE
PRODUCT_COPY_FILES +=
    frameworks/av/media/libeffects/data/audio_effects.conf:system/etc/audio_effects.conf
PRODUCT_PROPERTY_OVERRIDES +=
    persist.bluetooth.enablenewavrcp=false
    ro.carrier=unknown
PRODUCT_SYSTEM_DEFAULT_PROPERTIES +=
    config.disable_systemtextclassifier=true
###
### Suggested values for multi-user properties - can be overridden
###
# Enable headless system user mode
PRODUCT_SYSTEM_DEFAULT_PROPERTIES +=
    ro.fw.mu.headless_system_user?=true
# Enable user pre-creation
PRODUCT_SYSTEM_DEFAULT_PROPERTIES +=
    android.car.number_pre_created_users?=1
    android.car.number_pre_created_guests?=1
# Enable User HAL integration
# NOTE: when set to true, VHAL must also implement the user-related properties,
# otherwise CarService will ignore it
PRODUCT_SYSTEM_DEFAULT_PROPERTIES +=
    android.car.user_hal_enabled?=true
### end of multi-user properties ###
# Overlay for Google network and fused location providers
$(call inherit-product, device/sample/products/location_overlay.mk)
$(call inherit-product-if-exists, frameworks/webview/chromium/chromium.mk)
$(call inherit-product, packages/services/Car/car_product/build/car_base.mk)
# Overrides
PRODUCT_BRAND := generic
PRODUCT_DEVICE := generic
PRODUCT_NAME := generic_car_no_telephony
PRODUCT_IS_AUTOMOTIVE := true
PRODUCT_PROPERTY_OVERRIDES :=
    ro.config.ringtone=Girtab.ogg
    ro.config.notification_sound=Tethys.ogg
    ro.config.alarm_alert=Oxygen.ogg
    $(PRODUCT_PROPERTY_OVERRIDES)
PRODUCT_PROPERTY_OVERRIDES +=
    keyguard.no_require_sim=true
# TODO(b/205189147): Remove the following change after the proper fix is landed.
# Uses the local KeyGuard animation to resolve TaskView misalignment issue after display-on.
PRODUCT_SYSTEM_PROPERTIES +=
    persist.wm.enable_remote_keyguard_animation=0
# Automotive specific packages
PRODUCT_PACKAGES +=
    CarFrameworkPackageStubs
    CarService
    CarShell
    CarDialerApp
    CarRadioApp
    OverviewApp
    CarSystemUI
    LocalMediaPlayer
    CarMediaApp
    CarMessengerApp
    CarHTMLViewer
    CarMapsPlaceholder
    CarLatinIME
    CarSettings
    CarUsbHandler
    android.car
    car-frameworks-service
    com.android.car.procfsinspector
    libcar-framework-service-jni
    ScriptExecutor
# RROs
PRODUCT_PACKAGES +=
    CarPermissionControllerRRO
# System Server components
# Order is important: if X depends on Y, then Y should precede X on the list.
PRODUCT_SYSTEM_SERVER_JARS += car-frameworks-service
# TODO: make the order optimal by appending 'car-frameworks-service' at the end
# after its dependency 'services'. Currently the order is violated because this
# makefile is included before AOSP makefile.
PRODUCT_BROKEN_SUBOPTIMAL_ORDER_OF_SYSTEM_SERVER_JARS := true
# Boot animation
PRODUCT_COPY_FILES +=
    packages/services/Car/car_product/bootanimations/bootanimation-832.zip:system/media/bootanimation.zip
PRODUCT_LOCALES :=
    en_US
    af_ZA
    am_ET
    ar_EG ar_XB
    as_IN
    az_AZ
    be_BY
    bg_BG
    bn_BD
    bs_BA
    ca_ES
    cs_CZ
    da_DK
    de_DE
    el_GR
    en_AU en_CA en_GB en_IN en_XA
    es_ES es_US
    et_EE
    eu_ES
    fa_IR
    fi_FI
    fil_PH
    fr_CA fr_FR
    gl_ES
    gu_IN
    hi_IN
    hr_HR
    hu_HU
    hy_AM
    id_ID
    is_IS
    it_IT
    iw_IL
    ja_JP
    ka_GE
    kk_KZ
    km_KH km_MH
    kn_IN
    ko_KR
    ky_KG
    lo_LA
    lv_LV
    lt_LT
    mk_MK
    ml_IN
    mn_MN
    mr_IN
    ms_MY
    my_MM
    ne_NP
    nl_NL
    no_NO
    or_IN
    pa_IN
    pl_PL
    pt_BR pt_PT
    ro_RO
    ru_RU
    si_LK
    sk_SK
    sl_SI
    sq_AL
    sr_RS
    sv_SE
    sw_TZ
    ta_IN
    te_IN
    th_TH
    tr_TR
    uk_UA
    ur_PK
    uz_UZ
    vi_VN
    zh_CN zh_HK zh_TW
    zu_ZA
PRODUCT_BOOT_JARS +=
    android.car
PRODUCT_HIDDENAPI_STUBS :=
    android.car-stubs-dex
PRODUCT_HIDDENAPI_STUBS_SYSTEM :=
    android.car-system-stubs-dex
PRODUCT_HIDDENAPI_STUBS_TEST :=
    android.car-test-stubs-dex
# Disable Prime Shader Cache in SurfaceFlinger to make it available faster
PRODUCT_PROPERTY_OVERRIDES +=
    service.sf.prime_shader_cache=0

二、CarService的发动流程

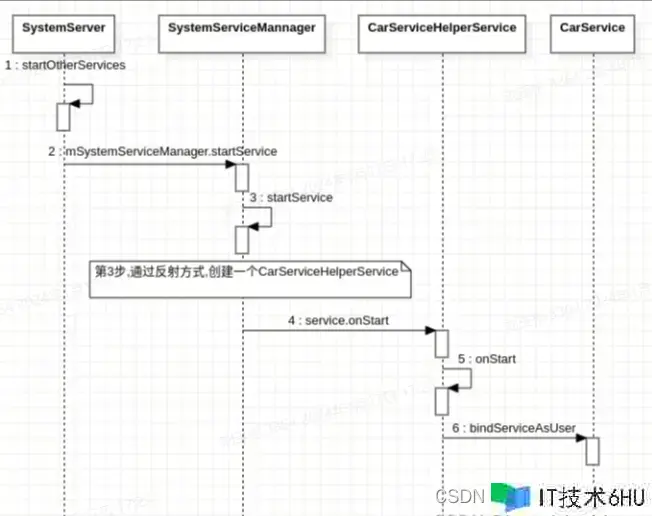

2.1、体系发动后在SystemServer进程中发动CarServiceHelperService

frameworks/base/services/java/com/android/server/SystemServer.java
public final class SystemServer implements Dumpable {
    public static void main(String[] args) {
        new SystemServer().run();
    }
    private void run(){
            ...代码省掉...
        // Start services.
        try {
            t.traceBegin("StartServices");
            startBootstrapServices(t);//发动引导服务
            startCoreServices(t);//发动中心服务
            startOtherServices(t);//发动其他服务
        } catch (Throwable ex) {
            Slog.e("System", "******************************************");
            Slog.e("System", "************ Failure starting system services", ex);
            throw ex;
        } finally {
            t.traceEnd(); // StartServices
        }
            ...代码省掉...
    }
}

  main办法里发动了run办法，而在run办法中会调用了startOtherServices() 办法。

  2. startOtherServices和CarService相关的关键代码如下所示。

public final class SystemServer implements Dumpable {
    private static final String CAR_SERVICE_HELPER_SERVICE_CLASS =
            "com.android.internal.car.CarServiceHelperService";
    private PackageManager mPackageManager;
    private void startOtherServices() {
            mActivityManagerService.systemReady(() -> {
                          ...代码省掉...
                    if (mPackageManager.hasSystemFeature(PackageManager.FEATURE_AUTOMOTIVE)) {
                        t.traceBegin("StartCarServiceHelperService");
                        //如果有车机服务，则敞开车机协助服务
                        final SystemService cshs = mSystemServiceManager
                                .startService(CAR_SERVICE_HELPER_SERVICE_CLASS);
                        if (cshs instanceof Dumpable) {
                            mDumper.addDumpable((Dumpable) cshs);
                        }
                        if (cshs instanceof DevicePolicySafetyChecker) {
                            dpms.setDevicePolicySafetyChecker((DevicePolicySafetyChecker) cshs);
                        }
                        t.traceEnd();
                    }
                          ...代码省掉...
          }
    }
}

  3. SystemServiceManager的startService办法如下所示。

frameworks/base/services/core/java/com/android/server/SystemServiceManager.java
public class SystemServiceManager {
        //存储了SystemServiceManager负责发动的各种服务
    private final ArrayList<SystemService> mServices = new ArrayList<SystemService>();
    public SystemService startService(String className) {
        final Class<SystemService> serviceClass = loadClassFromLoader(className,this.getClass().getClassLoader());
        return startService(serviceClass);
    }
    @SuppressWarnings("unchecked")
    public <T extends SystemService> T startService(Class<T> serviceClass) {
        try {
            final String name = serviceClass.getName();
            ...代码省掉...
            final T service;
            try {
                Constructor<T> constructor = serviceClass.getConstructor(Context.class);
                service = constructor.newInstance(mContext);
            }
            ...代码省掉...
            startService(service);
            return service;
        } finally {
            Trace.traceEnd(Trace.TRACE_TAG_SYSTEM_SERVER);
        }
    }
    public void startService(@NonNull final SystemService service) {
        // Register it.
        mServices.add(service);
        // Start it.
        long time = SystemClock.elapsedRealtime();
        try {
            service.onStart();
        } catch (RuntimeException ex) {
            throw new RuntimeException("Failed to start service " + service.getClass().getName()
                    + ": onStart threw an exception", ex);
        }
        warnIfTooLong(SystemClock.elapsedRealtime() - time, service, "onStart");
    }
}

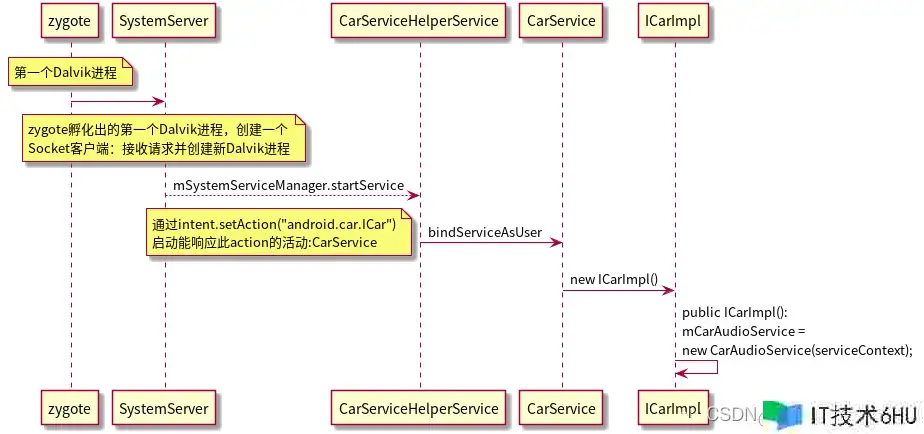

  由于前面咱们传入的参数为com.android.internal.car.CarServiceHelperService，所以这儿startService办法首要会经过反射创立CarServiceHelperService目标实例，然后将其存储在类型ArrayList的mServices中，紧接着会调用CarServiceHelperService的onStart办法。

4. CarServiceHelperService的onStart办法如下所示。

frameworks/opt/car/services/src/com/android/internal/car/CarServiceHelperService.java
public class CarServiceHelperService extends SystemService
        implements Dumpable, DevicePolicySafetyChecker {
    @Override
    public void onStart() {
        EventLog.writeEvent(EventLogTags.CAR_HELPER_START);
        IntentFilter filter = new IntentFilter(Intent.ACTION_REBOOT);
        filter.addAction(Intent.ACTION_SHUTDOWN);
        mContext.registerReceiverForAllUsers(mShutdownEventReceiver, filter, null, null);
        mCarWatchdogDaemonHelper.addOnConnectionChangeListener(mConnectionListener);
        mCarWatchdogDaemonHelper.connect();
        Intent intent = new Intent();
        intent.setPackage("com.android.car");
        intent.setAction(CAR_SERVICE_INTERFACE);
        //经过bindService绑定车机服务CarService
        if (!mContext.bindServiceAsUser(intent, mCarServiceConnection, Context.BIND_AUTO_CREATE,
                mHandler, UserHandle.SYSTEM)) {
            Slogf.wtf(TAG, "cannot start car service");
        }
        loadNativeLibrary();
    }
    void loadNativeLibrary() {
        System.loadLibrary("car-framework-service-jni");
    }
}

packages/services/Car/car-lib/src/com/android/car/internal/common/CommonConstants.java
public final class CommonConstants {
    // CarService Constants
    public static final String CAR_SERVICE_INTERFACE = "android.car.ICar";
}

  CarServiceHelperService的onStart办法首要创立一个Action为android.car.ICar，包名为com.android.car的Intent，然后经过bindService的办法发动该Intent对应的服务，而这个服务正是车机模块才有的CarService服务。

2.2、CarService发动

  1、体系关于CarService服务的声明如下所示。

packages/services/Car/service/AndroidManifest.xml
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
     xmlns:androidprv="http://schemas.android.com/apk/prv/res/android"
     package="com.android.car"
     coreApp="true"
     android:sharedUserId="android.uid.system">
    <!--...代码省掉...-->
    <application android:label="@string/app_title"
         android:directBootAware="true"
         android:allowBackup="false"
         android:persistent="true">
        <service android:name=".CarService"
             android:singleUser="true"
             android:exported="true">
            <intent-filter>
                <action android:name="android.car.ICar"/>
            </intent-filter>
        </service>
        <!--...代码省掉...-->
   </application>
</manifest>

  结合这个配置文件咱们能够知道CarServiceHelperService终究所发动的，便是CarService这个服务。   2、CarService的onCreate办法如下所示。

public class CarService extends Service {
    private ICarImpl mICarImpl;
    @Override
    public void onCreate() {
                  ...代码省掉...
        mICarImpl = new ICarImpl(this,
                mVehicle,
                SystemInterface.Builder.defaultSystemInterface(this).build(),
                mVehicleInterfaceName);
        mICarImpl.init();
        linkToDeath(mVehicle, mVehicleDeathRecipient);
                //将ICarImpl存储到体系服务办理者ServiceManager中
        ServiceManager.addService("car_service", mICarImpl);
        SystemProperties.set("boot.car_service_created", "1");
        super.onCreate();
        initTiming.traceEnd(); // "CarService.onCreate"
    }
    @Override
    public int onStartCommand(Intent intent, int flags, int startId) {
        // keep it alive.
        return START_STICKY;
    }
    @Override
    public IBinder onBind(Intent intent) {
        return mICarImpl;
    }
}

  CarService的onCreate办法会创立一个关键目标ICarImpl的实例，并将该实例赋值给mICarImpl特点变量，然后会调用该目标的init办法，之后还会将mICarImpl存储到ServiceManager中。别的结合CarService的onBind办法咱们能够知道，CarServiceHelperService经过bindService办法敞开CarService，CarService会返回mICarImpl目标，经过该Binder目标使二者树立双向跨进程通讯。

三、CarService源码剖析

3.1、CarService结构源码剖析

  当服务发动之后, 首要调用其onCreate办法. CarService的onCreate办法完成如下:

 @Override
    public void onCreate() {
        Log.i(CarLog.TAG_SERVICE, "Service onCreate");
        //获取告诉办理NotificationManager目标
        mCanBusErrorNotifier = new CanBusErrorNotifier(this /* context */);
        mVehicle = getVehicle();
        if (mVehicle == null) {
            throw new IllegalStateException("Vehicle HAL service is not available.");
        }
        try {
            mVehicleInterfaceName = mVehicle.interfaceDescriptor();
        } catch (RemoteException e) {
            throw new IllegalStateException("Unable to get Vehicle HAL interface descriptor", e);
        }
        Log.i(CarLog.TAG_SERVICE, "Connected to " + mVehicleInterfaceName);
        mICarImpl = new ICarImpl(this,
                mVehicle,
                SystemInterface.Builder.defaultSystemInterface(this).build(),
                mCanBusErrorNotifier,
                mVehicleInterfaceName);
        mICarImpl.init();
        linkToDeath(mVehicle, mVehicleDeathRecipient);
        ServiceManager.addService("car_service", mICarImpl);
        //设置SystemProperty特点  carService已创立
        SystemProperties.set("boot.car_service_created", "1");
        super.onCreate();
    }

  主要做了两件工作:

    1. 获取mVehicle 车辆相关的HIDL Binder远程目标。

    2. 创立了mICarImpl目标, 并将其添加到ServiceManager办理的服务列表中.

  这儿的ICarImpl起着创立并办理各个服务的效果。在它的结构函数中，创立了各个服务的实例,并添加到服务列表中，源码如下:

packages/services/Car/service/src/com/android/car/ICarImpl.java
public ICarImpl(Context serviceContext, IVehicle vehicle, SystemInterface systemInterface,
        CanBusErrorNotifier errorNotifier, String vehicleInterfaceName) {
    mContext = serviceContext;
    mSystemInterface = systemInterface;
    mHal = new VehicleHal(vehicle);
    mVehicleInterfaceName = vehicleInterfaceName;
    //创立各种重要的服务
    mUserManagerHelper = new CarUserManagerHelper(serviceContext);
    final Resources res = mContext.getResources();
    final int maxRunningUsers = res.getInteger(
            com.android.internal.R.integer.config_multiuserMaxRunningUsers);
    mCarUserService = new CarUserService(serviceContext, mUserManagerHelper,
            ActivityManager.getService(), maxRunningUsers);
    mSystemActivityMonitoringService = new SystemActivityMonitoringService(serviceContext);
    mCarPowerManagementService = new CarPowerManagementService(mContext, mHal.getPowerHal(),
            systemInterface, mUserManagerHelper);
    mCarPropertyService = new CarPropertyService(serviceContext, mHal.getPropertyHal());
    ....
    //将重要的服务缓存到 CarLocalServices
    CarLocalServices.addService(CarPowerManagementService.class, mCarPowerManagementService);
    CarLocalServices.addService(CarUserService.class, mCarUserService);
    CarLocalServices.addService(CarTrustedDeviceService.class, mCarTrustedDeviceService);
     // 将创立的服务目标顺次添加到一个list中保存起来
     List<CarServiceBase> allServices = new ArrayList<>();
     allServices.add(mFeatureController);
     allServices.add(mCarUserService);
.....
}

  这些创立的服务便是上文介绍的汽车服务.。

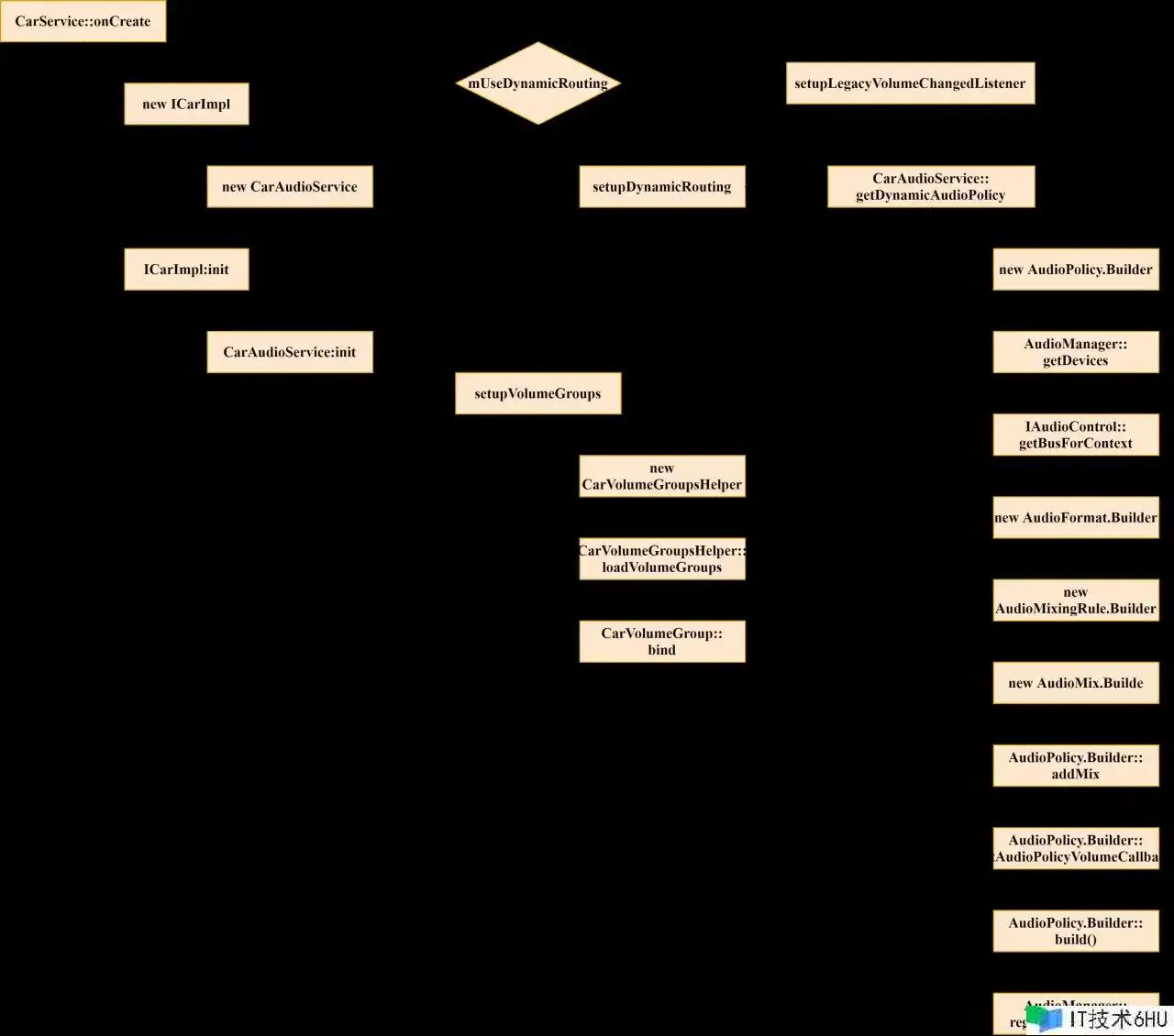

3.2、CarAudioService源码剖析

3.2.1、结构函数

  这儿读取配置文件audioUseDynamicRouting确认是否运用动态Routing。

public CarAudioService(Context context) {
    mContext = context;
    mTelephonyManager = (TelephonyManager) mContext.getSystemService(Context.TELEPHONY_SERVICE);
    mAudioManager = (AudioManager) mContext.getSystemService(Context.AUDIO_SERVICE);
    mUseDynamicRouting = mContext.getResources().getBoolean(R.bool.audioUseDynamicRouting);
}

3.2.2、setupDynamicRouting

  当mUseDynamicRouting为true时，将调用setupDynamicRouting函数；该函数里会创立一个AudioPolicy ，并经过mAudioManager.registerAudioPolicy函数注册该AudioPolicy。

private void setupDynamicRouting() {
    final IAudioControl audioControl = getAudioControl();
    if (audioControl == null) {
        return;
    }
    AudioPolicy audioPolicy = getDynamicAudioPolicy(audioControl);
    int r = mAudioManager.registerAudioPolicy(audioPolicy);
    if (r != AudioManager.SUCCESS) {
        throw new RuntimeException("registerAudioPolicy failed " + r);
    }
    mAudioPolicy = audioPolicy;
}

3.2.3、AudioManager::registerAudioPolicy

public int registerAudioPolicy(@NonNull AudioPolicy policy) {
    if (policy == null) {
        throw new IllegalArgumentException("Illegal null AudioPolicy argument");
    }
    final IAudioService service = getService();
    try {
        String regId = service.registerAudioPolicy(policy.getConfig(), policy.cb(),
                policy.hasFocusListener(), policy.isFocusPolicy(), policy.isVolumeController());
        if (regId == null) {
            return ERROR;
        } else {
            policy.setRegistration(regId);
        }
        // successful registration
    } catch (RemoteException e) {
        throw e.rethrowFromSystemServer();
    }
    return SUCCESS;
}

  【1】policy.isVolumeController() 这儿mVolCb 的值便是经过setAudioPolicyVolumeCallback函数设置进来的，因而这儿的 mVolCb 便是CarAudioService的mAudioPolicyVolumeCallback

  public boolean isVolumeController() { return mVolCb != null; }

public Builder setAudioPolicyVolumeCallback(@NonNull AudioPolicyVolumeCallback vc) {
    if (vc == null) {
        throw new IllegalArgumentException("Invalid null volume callback");
    }
    mVolCb = vc;
    return this;
}

  【2】这儿的policy.cb()为IAudioPolicyCallback，（这个很重要，后续将会用到）

public IAudioPolicyCallback cb() { return mPolicyCb; }
    private final IAudioPolicyCallback mPolicyCb = new IAudioPolicyCallback.Stub() {
        public void notifyAudioFocusGrant(AudioFocusInfo afi, int requestResult) {
            sendMsg(MSG_FOCUS_GRANT, afi, requestResult);
            if (DEBUG) {
                Log.v(TAG, "notifyAudioFocusGrant: pack=" + afi.getPackageName() + " client="
                        + afi.getClientId() + "reqRes=" + requestResult);
            }
        }
        public void notifyAudioFocusLoss(AudioFocusInfo afi, boolean wasNotified) {
            sendMsg(MSG_FOCUS_LOSS, afi, wasNotified ? 1 : 0);
            if (DEBUG) {
                Log.v(TAG, "notifyAudioFocusLoss: pack=" + afi.getPackageName() + " client="
                        + afi.getClientId() + "wasNotified=" + wasNotified);
            }
        }
        public void notifyAudioFocusRequest(AudioFocusInfo afi, int requestResult) {
            sendMsg(MSG_FOCUS_REQUEST, afi, requestResult);
            if (DEBUG) {
                Log.v(TAG, "notifyAudioFocusRequest: pack=" + afi.getPackageName() + " client="
                        + afi.getClientId() + " gen=" + afi.getGen());
            }
        }
        public void notifyAudioFocusAbandon(AudioFocusInfo afi) {
            sendMsg(MSG_FOCUS_ABANDON, afi, 0 /* ignored */);
            if (DEBUG) {
                Log.v(TAG, "notifyAudioFocusAbandon: pack=" + afi.getPackageName() + " client="
                        + afi.getClientId());
            }
        }
        public void notifyMixStateUpdate(String regId, int state) {
            for (AudioMix mix : mConfig.getMixes()) {
                if (mix.getRegistration().equals(regId)) {
                    mix.mMixState = state;
                    sendMsg(MSG_MIX_STATE_UPDATE, mix, 0/*ignored*/);
                    if (DEBUG) {
                        Log.v(TAG, "notifyMixStateUpdate: regId=" + regId + " state=" + state);
                    }
                }
            }
        }
        public void notifyVolumeAdjust(int adjustment) {
            sendMsg(MSG_VOL_ADJUST, null /* ignored */, adjustment);
            if (DEBUG) {
                Log.v(TAG, "notifyVolumeAdjust: " + adjustment);
            }
        }
    };

3.2.4、AudioService::registerAudioPolicy

3.2.4.1、流程图

3.2.4.2、AudioService::registerAudioPolicy代码

AudioPolicyProxy app = new AudioPolicyProxy(policyConfig, pcb, hasFocusListener, isFocusPolicy, isVolumeController);

  这儿实例化了AudioPolicyProxy，并将registerAudioPolicy参数作为AudioPolicyProxy结构函数的参数。如上所述，isVolumeController的值便是policy.isVolumeController()，因而为true。

 public String registerAudioPolicy(AudioPolicyConfig policyConfig, IAudioPolicyCallback pcb,
        boolean hasFocusListener, boolean isFocusPolicy, boolean isVolumeController) {
    AudioSystem.setDynamicPolicyCallback(mDynPolicyCallback);
    String regId = null;
    // error handling
    boolean hasPermissionForPolicy =
            (PackageManager.PERMISSION_GRANTED == mContext.checkCallingPermission(
                    android.Manifest.permission.MODIFY_AUDIO_ROUTING));
    if (!hasPermissionForPolicy) {
        Slog.w(TAG, "Can't register audio policy for pid " + Binder.getCallingPid() + " / uid "
                + Binder.getCallingUid() + ", need MODIFY_AUDIO_ROUTING");
        return null;
    }
    mDynPolicyLogger.log((new AudioEventLogger.StringEvent("registerAudioPolicy for "
            + pcb.asBinder() + " with config:" + policyConfig)).printLog(TAG));
    synchronized (mAudioPolicies) {
        try {
            if (mAudioPolicies.containsKey(pcb.asBinder())) {
                Slog.e(TAG, "Cannot re-register policy");
                return null;
            }
            AudioPolicyProxy app = new AudioPolicyProxy(policyConfig, pcb, hasFocusListener,
                    isFocusPolicy, isVolumeController);
            pcb.asBinder().linkToDeath(app, 0/*flags*/);
            regId = app.getRegistrationId();
            mAudioPolicies.put(pcb.asBinder(), app);
        } catch (RemoteException e) {
            // audio policy owner has already died!
            Slog.w(TAG, "Audio policy registration failed, could not link to " + pcb +
                    " binder death", e);
            return null;
        }
    }
    return regId;
}

3.2.4.3、AudioPolicyProxy结构函数

AudioPolicyProxy(AudioPolicyConfig config, IAudioPolicyCallback token,
        boolean hasFocusListener, boolean isFocusPolicy, boolean isVolumeController) {
    super(config);
    setRegistration(new String(config.hashCode() + ":ap:" + mAudioPolicyCounter++));
    mPolicyCallback = token;
    mHasFocusListener = hasFocusListener;
    mIsVolumeController = isVolumeController;
    if (mHasFocusListener) {
        mMediaFocusControl.addFocusFollower(mPolicyCallback);
        // can only ever be true if there is a focus listener
        if (isFocusPolicy) {
            mIsFocusPolicy = true;
            mMediaFocusControl.setFocusPolicy(mPolicyCallback);
        }
    }
    if (mIsVolumeController) {
        setExtVolumeController(mPolicyCallback);
    }
    connectMixes();
}

3.2.4.4、AudioPolicyProxy::setExtVolumeController

  这儿设置mExtVolumeController 的值为类AudioPolicy中的IAudioPolicyCallback mPolicyCb。

private void setExtVolumeController(IAudioPolicyCallback apc) {
    if (!mContext.getResources().getBoolean(
            com.android.internal.R.bool.config_handleVolumeKeysInWindowManager)) {
        Log.e(TAG, "Cannot set external volume controller: device not set for volume keys" +
                " handled in PhoneWindowManager");
        return;
    }
    synchronized (mExtVolumeControllerLock) {
        if (mExtVolumeController != null && !mExtVolumeController.asBinder().pingBinder()) {
            Log.e(TAG, "Cannot set external volume controller: existing controller");
        }
        mExtVolumeController = apc;
    }
}

3.2.5、CarAudioService::setupVolumeGroups

3.2.5.1、这儿经过CarVolumeGroupsHelper类加载car_volume_groups.xml文件

private void setupVolumeGroups() {
    Preconditions.checkArgument(mCarAudioDeviceInfos.size() > 0,
            "No bus device is configured to setup volume groups");
    final CarVolumeGroupsHelper helper = new CarVolumeGroupsHelper(
            mContext, R.xml.car_volume_groups);
    mCarVolumeGroups = helper.loadVolumeGroups();
    for (CarVolumeGroup group : mCarVolumeGroups) {
        for (int contextNumber : group.getContexts()) {
            int busNumber = mContextToBus.get(contextNumber);
            group.bind(contextNumber, busNumber, mCarAudioDeviceInfos.get(busNumber));
        }
        // Now that we have all our contexts, ensure the HAL gets our intial value
        group.setCurrentGainIndex(group.getCurrentGainIndex());
        Log.v(CarLog.TAG_AUDIO, "Processed volume group: " + group);
    }
    // Perform validation after all volume groups are processed
    if (!validateVolumeGroups()) {
        throw new RuntimeException("Invalid volume groups configuration");
    }
}

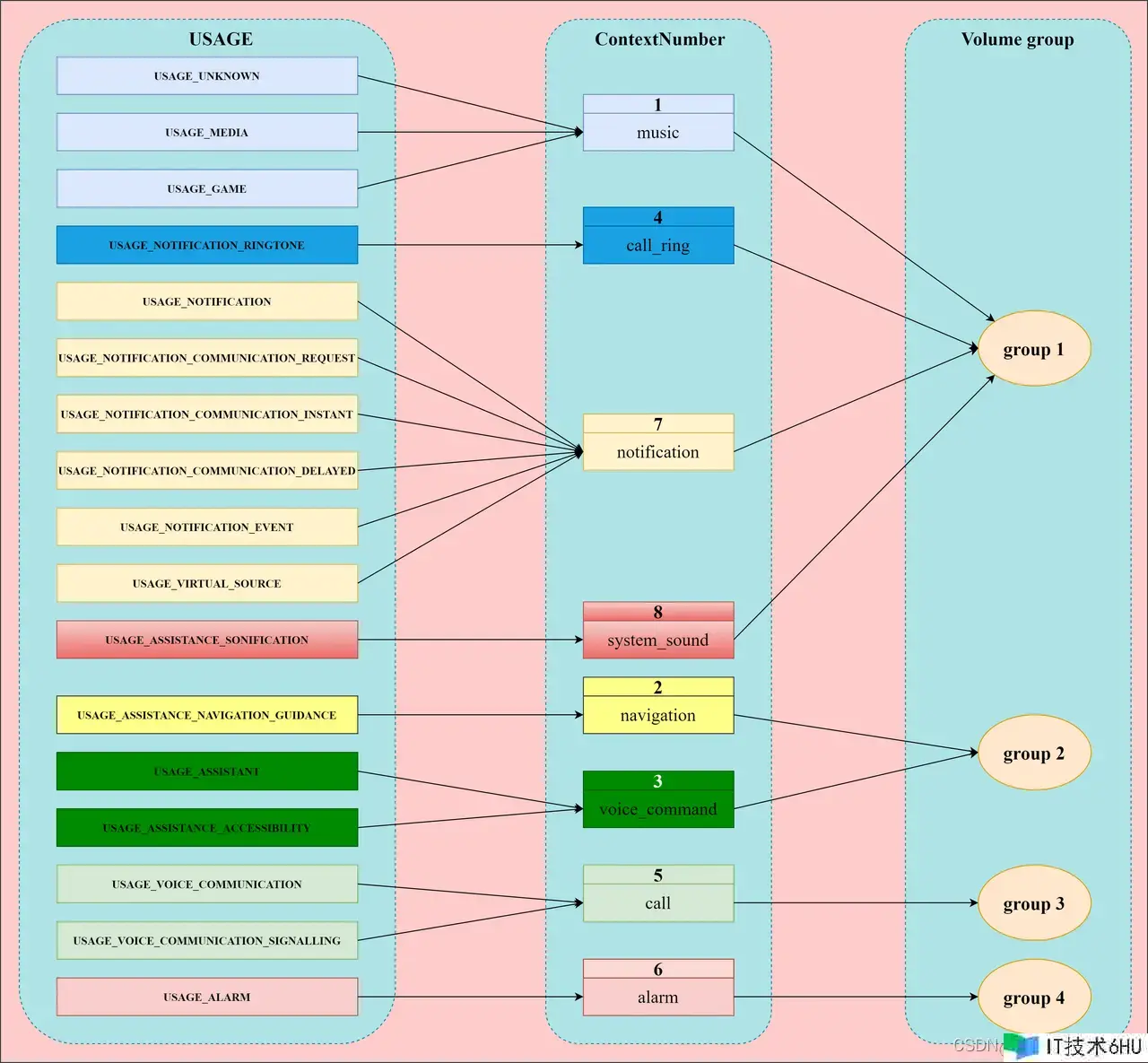

3.2.5.2、packages/services/Car/service/res/xml/car_volume_groups.xml文件

<volumeGroups xmlns:car="http://schemas.android.com/apk/res-auto">
    <group>
        <context car:context="music"/>
        <context car:context="call_ring"/>
        <context car:context="notification"/>
        <context car:context="system_sound"/>
    </group>
    <group>
        <context car:context="navigation"/>
        <context car:context="voice_command"/>
    </group>
    <group>
        <context car:context="call"/>
    </group>
    <group>
        <context car:context="alarm"/>
    </group>
</volumeGroups>

3.2.5.3、USAGE、ContextNumber和volumeGroups的联系
