1.简介
学习下体系首次发动的时分那个引导app咋设置的
1.1.体系默许的
- 源码里自带的是 packages/apps/Provision

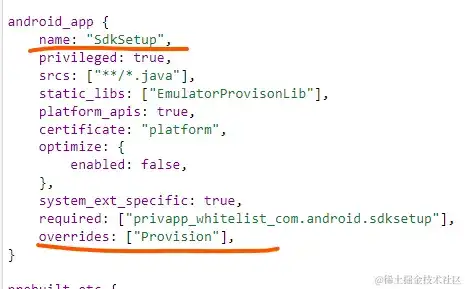

- device/generic/goldfish/provision/SdkSetup覆写了，看下android.bp文件如下,所以直接看这个就行
- SdkSetup里就一个activity，仍是空完成，继承的是EmulatorProvisonLib库里的类，所以直接看库里的类即可
- 默许的引导程序不清楚是哪个，不太熟悉mk的配置，咱们这边用的谷歌的setupwizard
2.DefaultActivity
先看下源码里自带的引导程序（没有界面的）
public class DefaultActivity extends com.android.emulatorprovisionlib.ProvisionActivity {
@Override
protected String TAG() { return "SdkSetup"; }
}
- 不管默许的，谷歌的，仍是自定义的发动app，终究都会履行末节2.5的逻辑：disable自己而且修正2个settings的值
2.1.AndroidManifest.xml
这儿的优先级是3
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
package="com.android.sdksetup">
<!-- For miscellaneous settings -->
<uses-permission android:name="android.permission.ACCESS_KEYGUARD_SECURE_STORAGE" />
<uses-permission android:name="android.permission.BACKUP" />
<uses-permission android:name="android.permission.CHANGE_WIFI_STATE" />
<uses-permission android:name="android.permission.INTERACT_ACROSS_USERS" />
<uses-permission android:name="android.permission.MANAGE_USERS" />
<uses-permission android:name="android.permission.MODIFY_PHONE_STATE" />
<uses-permission android:name="android.permission.SET_KEYBOARD_LAYOUT" />
<uses-permission android:name="android.permission.STATUS_BAR" />
<uses-permission android:name="android.permission.WRITE_SECURE_SETTINGS" />
<uses-permission android:name="android.permission.WRITE_SYSTEM_SETTINGS" />
<uses-permission android:name="android.permission.WRITE_SETTINGS" />
<application>
<activity android:name="DefaultActivity"
android:excludeFromRecents="true"
android:exported="True"
android:launchMode="singleTask">
<intent-filter android:priority="3">
<action android:name="android.intent.action.MAIN" />
<category android:name="android.intent.category.HOME" />
<category android:name="android.intent.category.DEFAULT" />
<category android:name="android.intent.category.SETUP_WIZARD" />
</intent-filter>
</activity>
</application>
</manifest>
activity直接看lib里的即可 device/generic/goldfish/provision/EmulatorProvisonLib/src/com/android/sdksetup/ProvisionActivity.java
public abstract class ProvisionActivity extends Activity {
2.2.onCreate
protected void onCreate(Bundle icicle) {
super.onCreate(icicle);
//device_provisioned
if (Settings.Global.getInt(getContentResolver(), Settings.Global.DEVICE_PROVISIONED, 0) != 1) {
preProvivion();
doProvision();
postProvision();
} else {
Log.w(TAG(), "Already provisioned, remove itself.");
removeSelf();
}
finish(); // terminate the activity.
}
2.3.preProvivion
protected void preProvivion() {
final Context appContext = getApplicationContext();
mStatusBarManager = appContext.getSystemService(StatusBarManager.class);
//引导过程中，状态栏是不可用的
mStatusBarManager.setDisabledForSetup(true);
}
>1.setDisabledForSetup
终究给到各种回调里处理，便是禁止状态栏的操作
public void setDisabledForSetup(boolean disabled) {
try {
final int userId = Binder.getCallingUserHandle().getIdentifier();
final IStatusBarService svc = getService();
if (svc != null) {
svc.disableForUser(disabled ? DEFAULT_SETUP_DISABLE_FLAGS : DISABLE_NONE,
mToken, mContext.getPackageName(), userId);
svc.disable2ForUser(disabled ? DEFAULT_SETUP_DISABLE2_FLAGS : DISABLE2_NONE,
mToken, mContext.getPackageName(), userId);
}
} catch (RemoteException ex) {
throw ex.rethrowFromSystemServer();
}
}
2.4.doProvision
protected void doProvision() {
provisionWifi("AndroidWifi");
provisionKeyboard("qwerty2");
provisionDisplay();
provisionTelephony();
provisionLocation();
provisionAdb();
Settings.Secure.putInt(getContentResolver(), Settings.Secure.INSTALL_NON_MARKET_APPS, 1);
}
>1.provisionWifi
protected void provisionWifi(final String ssid) {
Settings.Global.putInt(getContentResolver(), Settings.Global.TETHER_OFFLOAD_DISABLED, 1);
final int ADD_NETWORK_FAIL = -1;
final String quotedSsid = """ + ssid + """;
final WifiConfiguration config = new WifiConfiguration();
config.SSID = quotedSsid;
config.setSecurityParams(WifiConfiguration.SECURITY_TYPE_OPEN);
final WifiManager mWifiManager = getApplicationContext().getSystemService(WifiManager.class);
final int netId = mWifiManager.addNetwork(config);
if (netId == ADD_NETWORK_FAIL || !mWifiManager.enableNetwork(netId, true)) {
Log.e(TAG(), "Unable to add Wi-Fi network " + quotedSsid + ".");
}
}
>2.provisionKeyboard
// Set physical keyboard layout based on the system property set by emulator host.
protected void provisionKeyboard(final String deviceName) {
final String layoutName = SystemProperties.get("vendor.qemu.keyboard_layout");
final InputDevice device = getKeyboardDevice(deviceName);
if (device != null && !layoutName.isEmpty()) {
setKeyboardLayout(device, layoutName);
}
}
protected InputDevice getKeyboardDevice(final String keyboardDeviceName) {
final int[] deviceIds = InputDevice.getDeviceIds();
for (int deviceId : deviceIds) {
InputDevice inputDevice = InputDevice.getDevice(deviceId);
if (inputDevice != null
&& inputDevice.supportsSource(InputDevice.SOURCE_KEYBOARD)
&& inputDevice.getName().equals(keyboardDeviceName)) {
return inputDevice;
}
}
return null;
}
protected void setKeyboardLayout(final InputDevice keyboardDevice, final String layoutName) {
final InputManager im = InputManager.getInstance();
final KeyboardLayout[] keyboardLayouts =
im.getKeyboardLayoutsForInputDevice(keyboardDevice.getIdentifier());
for (KeyboardLayout keyboardLayout : keyboardLayouts) {
if (keyboardLayout.getDescriptor().endsWith(layoutName)) {
im.setCurrentKeyboardLayoutForInputDevice(
keyboardDevice.getIdentifier(), keyboardLayout.getDescriptor());
return;
}
}
}
>3.provisionDisplay
protected void provisionDisplay() {
final int screen_off_timeout =
SystemProperties.getInt("ro.boot.qemu.settings.system.screen_off_timeout", 0);
//息屏时间设置
if (screen_off_timeout > 0) {
Settings.System.putInt(getContentResolver(), Settings.System.SCREEN_OFF_TIMEOUT, screen_off_timeout);
}
//禁止锁屏，在没有设置pin,password,pattern的状况下
(new LockPatternUtils(this)).setLockScreenDisabled(true,
android.os.Process.myUserHandle().getIdentifier());
final String displaySettingsProp = "ro.boot.qemu.display.settings.xml";
final String displaySettingsName = SystemProperties.get(displaySettingsProp);
if ("freeform".equals(displaySettingsName)) {
Settings.Global.putInt(getContentResolver(), "sf", 1);
Settings.Global.putString(getContentResolver(),
Settings.Global.DEVELOPMENT_ENABLE_FREEFORM_WINDOWS_SUPPORT, "1");
Settings.Global.putString(getContentResolver(),
Settings.Global.DEVELOPMENT_FORCE_RESIZABLE_ACTIVITIES, "1");
Settings.Global.putString(getContentResolver(),
Settings.Global.DEVELOPMENT_WM_DISPLAY_SETTINGS_PATH,
"vendor/etc/display_settings_freeform.xml");
} else if ("resizable".equals(displaySettingsName)) {
//可变尺寸，翻开自动选装
Settings.System.putString(getContentResolver(), Settings.System.ACCELEROMETER_ROTATION, "1");
} else if (!displaySettingsName.isEmpty()) {
//不支撑的
}
}
补白1：这个终究是存储在数据库里的
public final static String DISABLE_LOCKSCREEN_KEY = "lockscreen.disabled";
/**
* Disable showing lock screen at all for a given user.
* This is only meaningful if pattern, pin or password are not set.
*
* @param disable Disables lock screen when true
* @param userId User ID of the user this has effect on
*/
public void setLockScreenDisabled(boolean disable, int userId) {
setBoolean(DISABLE_LOCKSCREEN_KEY, disable, userId);
}
>4.provisionTelephony
protected void provisionTelephony() {
// b/193418404
// the following blocks, TODO: find out why and fix it. disable this for now.
// TelephonyManager mTelephony = getApplicationContext().getSystemService(TelephonyManager.class);
// mTelephony.setPreferredNetworkTypeBitmask(TelephonyManager.NETWORK_TYPE_BITMASK_NR);
}
>5.provisionLocation
protected void provisionLocation() {
final LocationManager lm = getSystemService(LocationManager.class);
lm.setLocationEnabledForUser(true, Process.myUserHandle());
// Enable the GPS.
// Not needed since this SDK will contain the Settings app.
Settings.Secure.putString(getContentResolver(), Settings.Secure.LOCATION_PROVIDERS_ALLOWED,
LocationManager.GPS_PROVIDER);
}
>6.provisionAdb
protected void provisionAdb() {
Settings.Global.putInt(getContentResolver(), Settings.Global.ADB_ENABLED, 1);
Settings.Global.putInt(getContentResolver(), Settings.Global.PACKAGE_VERIFIER_INCLUDE_ADB, 0);
}
2.5.postProvision
protected void postProvision() {
//康复状态栏
mStatusBarManager.setDisabledForSetup(false);
removeSelf();
//修正这两个设置，告知其他使用知道设备已经配置好了。
Settings.Secure.putInt(getContentResolver(), Settings.Secure.USER_SETUP_COMPLETE, 1);
Settings.Global.putInt(getContentResolver(), Settings.Global.DEVICE_PROVISIONED, 1);
}
2.5.removeSelf
使自己不可用，这样下边发动的便是正常的桌面app了。
// remove this activity from the package manager.
protected void removeSelf() {
getPackageManager().setComponentEnabledSetting(
new ComponentName(this, this.getClass()),
PackageManager.COMPONENT_ENABLED_STATE_DISABLED,
PackageManager.DONT_KILL_APP);
}
2.6.补白
//状态栏不可用
mStatusBarManager.setDisabledForSetup(true);
//禁止锁屏，在没有设置pin,password,pattern的状况下
(new LockPatternUtils(this)).setLockScreenDisabled(true,
android.os.Process.myUserHandle().getIdentifier());
下边剖析下源码里，引导程序发动的整个流程。
3.ActivityManagerService
参阅juejin.cn/post/684490… ，曾经只要一个ActivityManagerService.java(AMS)，现在多了个ActivityTaskManagerService.java(ATMS)，所以老的帖子里找不到的办法，能够在新的ATMS里找
3.1.Lifecycle
AMS的静态内部类，构造办法里实例化了一个AMS
public static final class Lifecycle extends SystemService {
private final ActivityManagerService mService;
private static ActivityTaskManagerService sAtm;
public Lifecycle(Context context) {
super(context);
mService = new ActivityManagerService(context, sAtm);
}
>1.startService
public static ActivityManagerService startService(
SystemServiceManager ssm, ActivityTaskManagerService atm) {
sAtm = atm;
//先反射获取Lifecycle目标，再调用弥补2，回来AMS目标
return ssm.startService(ActivityManagerService.Lifecycle.class).getService();
}
>2.getService
public ActivityManagerService getService() {
return mService;
}
3.2.相关流程
SystemServer里初始化发动的
>1.startBootstrapServices
private void startBootstrapServices(@NonNull TimingsTraceAndSlog t) {
//..
// Activity manager runs the show.
t.traceBegin("StartActivityManager");
//先反射获取Lifecycle目标，完事调用其办法获取ATMS，见4.1.1
ActivityTaskManagerService atm = mSystemServiceManager.startService(
ActivityTaskManagerService.Lifecycle.class).getService();
//见3.1.1获取AMS目标
mActivityManagerService = ActivityManagerService.Lifecycle.startService(
mSystemServiceManager, atm);
mActivityManagerService.setSystemServiceManager(mSystemServiceManager);
mActivityManagerService.setInstaller(installer);
mWindowManagerGlobalLock = atm.getGlobalLock();
t.traceEnd();
>2.startOtherServices
private void startOtherServices(@NonNull TimingsTraceAndSlog t) {
//...
// We now tell the activity manager it is okay to run third party
// code. It will call back into us once it has gotten to the state
// where third party code can really run (but before it has actually
// started launching the initial applications), for us to complete our
// initialization.
//调用AMS的systemReady办法，见3.3，履行这儿的runnable办法
mActivityManagerService.systemReady(() -> {
//告知其他service抵达这个阶段了
mSystemServiceManager.startBootPhase(t, SystemService.PHASE_ACTIVITY_MANAGER_READY);
try {
mActivityManagerService.startObservingNativeCrashes();
}
//注册AppOpsPolicy
try {
mActivityManagerService.setAppOpsPolicy(new AppOpsPolicy(mSystemContext));
}
//安全形式下设置为飞行形式
if (safeMode) {
try {
connectivityF.setAirplaneMode(true);
}
}
try {
if (networkManagementF != null) {
networkManagementF.systemReady();
}
}
CountDownLatch networkPolicyInitReadySignal = null;
if (networkPolicyF != null) {
networkPolicyInitReadySignal = networkPolicyF
.networkScoreAndNetworkManagementServiceReady();
}
//ConnectivityManager
try {
if (connectivityF != null) {
connectivityF.systemReady();
}
}
//VpnManagerService
try {
if (vpnManagerF != null) {
vpnManagerF.systemReady();
}
}
//VcnManagementService
try {
if (vcnManagementF != null) {
vcnManagementF.systemReady();
}
}
t.traceBegin("MakeNetworkPolicyServiceReady");
try {
if (networkPolicyF != null) {
networkPolicyF.systemReady(networkPolicyInitReadySignal);
}
}
// Wait for all packages to be prepared
mPackageManagerService.waitForAppDataPrepared();
//到这儿各种体系服务就能够履行他们的第三部分代码了
t.traceBegin("PhaseThirdPartyAppsCanStart");
// confirm webview completion before starting 3rd party
if (webviewPrep != null) {
ConcurrentUtils.waitForFutureNoInterrupt(webviewPrep, WEBVIEW_PREPARATION);
}
//告知各种服务，当时到了这个阶段了
mSystemServiceManager.startBootPhase(t, SystemService.PHASE_THIRD_PARTY_APPS_CAN_START);
t.traceEnd();
if (UserManager.isHeadlessSystemUserMode() && !isAutomotive) {
// TODO(b/204091126): remove isAutomotive check once the workflow is finalized
t.traceBegin("BootUserInitializer");
new BootUserInitializer(mActivityManagerService, mContentResolver).init(t);
t.traceEnd();
}
t.traceBegin("StartNetworkStack");
try {
// Note : the network stack is creating on-demand objects that need to send
// broadcasts, which means it currently depends on being started after
// ActivityManagerService.mSystemReady and ActivityManagerService.mProcessesReady
// are set to true. Be careful if moving this to a different place in the
// startup sequence.
NetworkStackClient.getInstance().start();
}
t.traceBegin("StartTethering");
try {
ConnectivityModuleConnector.getInstance().startModuleService(
TETHERING_CONNECTOR_CLASS,
PERMISSION_MAINLINE_NETWORK_STACK, service -> {
ServiceManager.addService(Context.TETHERING_SERVICE, service,
false /* allowIsolated */,
DUMP_FLAG_PRIORITY_HIGH | DUMP_FLAG_PRIORITY_NORMAL);
});
}
t.traceBegin("MakeCountryDetectionServiceReady");
try {
if (countryDetectorF != null) {
countryDetectorF.systemRunning();
}
}
t.traceBegin("MakeNetworkTimeUpdateReady");
try {
if (networkTimeUpdaterF != null) {
networkTimeUpdaterF.systemRunning();
}
}
t.traceBegin("MakeInputManagerServiceReady");
try {
if (inputManagerF != null) {
inputManagerF.systemRunning();
}
}
t.traceBegin("MakeTelephonyRegistryReady");
try {
if (telephonyRegistryF != null) {
telephonyRegistryF.systemRunning();
}
}
t.traceBegin("MakeMediaRouterServiceReady");
try {
if (mediaRouterF != null) {
mediaRouterF.systemRunning();
}
}
if (mPackageManager.hasSystemFeature(PackageManager.FEATURE_TELEPHONY)) {
t.traceBegin("MakeMmsServiceReady");
try {
if (mmsServiceF != null) mmsServiceF.systemRunning();
}
}
t.traceBegin("IncidentDaemonReady");
try {
// TODO: Switch from checkService to getService once it's always
// in the build and should reliably be there.
final IIncidentManager incident = IIncidentManager.Stub.asInterface(
ServiceManager.getService(Context.INCIDENT_SERVICE));
if (incident != null) {
incident.systemRunning();
}
}
if (mIncrementalServiceHandle != 0) {
t.traceBegin("MakeIncrementalServiceReady");
setIncrementalServiceSystemReady(mIncrementalServiceHandle);
t.traceEnd();
}
t.traceBegin("OdsignStatsLogger");
try {
OdsignStatsLogger.triggerStatsWrite();
} catch (Throwable e) {
reportWtf("Triggering OdsignStatsLogger", e);
}
t.traceEnd();
}, t);
t.traceBegin("StartSystemUI");
try {
//发动systemUi,经过startService
startSystemUi(context, windowManagerF);
}
}
3.3.systemReady
public void systemReady(final Runnable goingCallback, @NonNull TimingsTraceAndSlog t) {
mSystemServiceManager.preSystemReady();
synchronized(this) {
if (mSystemReady) {
//已经ready了，直接履行runnable办法
if (goingCallback != null) {
goingCallback.run();
}
return;
}
//调用各种controller的ready办法
mLocalDeviceIdleController =
LocalServices.getService(DeviceIdleInternal.class);
//ATMA的对应办法
mActivityTaskManager.onSystemReady();
// Make sure we have the current profile info, since it is needed for security checks.
mUserController.onSystemReady();
mAppOpsService.systemReady();
mProcessList.onSystemReady();
mAppRestrictionController.onSystemReady();
//修正标志
mSystemReady = true;
t.traceEnd();
}
try {
sTheRealBuildSerial = IDeviceIdentifiersPolicyService.Stub.asInterface(
ServiceManager.getService(Context.DEVICE_IDENTIFIERS_SERVICE))
.getSerial();
} catch (RemoteException e) {}
//下边是找到boot阶段不允许发动的进程，然后杀死
ArrayList<ProcessRecord> procsToKill = null;
synchronized(mPidsSelfLocked) {
for (int i=mPidsSelfLocked.size()-1; i>=0; i--) {
ProcessRecord proc = mPidsSelfLocked.valueAt(i);
if (!isAllowedWhileBooting(proc.info)){
if (procsToKill == null) {
procsToKill = new ArrayList<ProcessRecord>();
}
procsToKill.add(proc);
}
}
}
synchronized(this) {
if (procsToKill != null) {
for (int i = procsToKill.size() - 1; i >= 0; i--) {
ProcessRecord proc = procsToKill.get(i);
Slog.i(TAG, "Removing system update proc: " + proc);
mProcessList.removeProcessLocked(proc, true, false,
ApplicationExitInfo.REASON_OTHER,
ApplicationExitInfo.SUBREASON_SYSTEM_UPDATE_DONE,
"system update done");
}
}
// Now that we have cleaned up any update processes, we
// are ready to start launching real processes and know that
// we won't trample on them any more.
mProcessesReady = true;
}
//..
mAtmInternal.getLaunchObserverRegistry().registerLaunchObserver(mActivityLaunchObserver);
t.traceBegin("watchDeviceProvisioning");
watchDeviceProvisioning(mContext);
t.traceBegin("retrieveSettings");
retrieveSettings();
t.traceBegin("Ugm.onSystemReady");
mUgmInternal.onSystemReady();
//注册监听低电量，看是否stop后台服务
final PowerManagerInternal pmi = LocalServices.getService(PowerManagerInternal.class);
if (pmi != null) {
pmi.registerLowPowerModeObserver(ServiceType.FORCE_BACKGROUND_CHECK,
state -> updateForceBackgroundCheck(state.batterySaverEnabled));
updateForceBackgroundCheck(
pmi.getLowPowerState(ServiceType.FORCE_BACKGROUND_CHECK).batterySaverEnabled);
}
//履行runnable
if (goingCallback != null) goingCallback.run();
//获取当时user
final int currentUserId = mUserController.getCurrentUserId();
//非体系用户，而且体系用户还没发动，抛出反常
if (currentUserId != UserHandle.USER_SYSTEM && !mUserController.isSystemUserStarted()) {
throw new RuntimeException("System user not started while current user is:"
+ currentUserId);
}
//电池状态服务
mBatteryStatsService.onSystemReady();
mBatteryStatsService.noteEvent(BatteryStats.HistoryItem.EVENT_USER_RUNNING_START,
Integer.toString(currentUserId), currentUserId);
mBatteryStatsService.noteEvent(BatteryStats.HistoryItem.EVENT_USER_FOREGROUND_START,
Integer.toString(currentUserId), currentUserId);
//
mSystemServiceManager.onUserStarting(t, currentUserId);
synchronized (this) {
// Only start up encryption-aware persistent apps; once user is
// unlocked we'll come back around and start unaware apps
//只发动支撑加密的耐久app
//清单文件里有声明 android:directBootAware="true"的app
startPersistentApps(PackageManager.MATCH_DIRECT_BOOT_AWARE);
// Start up initial activity.
mBooting = true;
// 不看，
if (UserManager.isSplitSystemUser() &&
Settings.Secure.getIntForUser(mContext.getContentResolver(),
Settings.Secure.USER_SETUP_COMPLETE, 0, currentUserId) != 0
|| SystemProperties.getBoolean(SYSTEM_USER_HOME_NEEDED, false)) {
ComponentName cName = new ComponentName(mContext, SystemUserHomeActivity.class);
try {
AppGlobals.getPackageManager().setComponentEnabledSetting(cName,
PackageManager.COMPONENT_ENABLED_STATE_ENABLED, 0,
UserHandle.USER_SYSTEM);
}
}
boolean isBootingSystemUser = currentUserId == UserHandle.USER_SYSTEM;
// Some systems - like automotive - will explicitly unlock system user then switch
// to a secondary user.
// 见4.4，发动home intent
if (isBootingSystemUser && !UserManager.isHeadlessSystemUserMode()) {
mAtmInternal.startHomeOnAllDisplays(currentUserId, "systemReady");
}
//需求的话显现体系错误弹框
mAtmInternal.showSystemReadyErrorDialogsIfNeeded();
if (isBootingSystemUser) {
//需求发送用户发动播送
t.traceBegin("sendUserStartBroadcast");
final int callingUid = Binder.getCallingUid();
final int callingPid = Binder.getCallingPid();
final long ident = Binder.clearCallingIdentity();
try {
Intent intent = new Intent(Intent.ACTION_USER_STARTED);
intent.addFlags(Intent.FLAG_RECEIVER_REGISTERED_ONLY
| Intent.FLAG_RECEIVER_FOREGROUND);
intent.putExtra(Intent.EXTRA_USER_HANDLE, currentUserId);
broadcastIntentLocked(null, null, null, intent,
null, null, 0, null, null, null, null, null, OP_NONE,
null, false, false, MY_PID, SYSTEM_UID, callingUid, callingPid,
currentUserId);
intent = new Intent(Intent.ACTION_USER_STARTING);
intent.addFlags(Intent.FLAG_RECEIVER_REGISTERED_ONLY);
intent.putExtra(Intent.EXTRA_USER_HANDLE, currentUserId);
broadcastIntentLocked(null, null, null, intent, null,
new IIntentReceiver.Stub() {
@Override
public void performReceive(Intent intent, int resultCode,
String data, Bundle extras, boolean ordered, boolean sticky,
int sendingUser) {}
}, 0, null, null, new String[] {INTERACT_ACROSS_USERS}, null, null,
OP_NONE, null, true, false, MY_PID, SYSTEM_UID, callingUid, callingPid,
UserHandle.USER_ALL);
}
}
//康复顶层的activity,如果没找到top activity，终究会发动home intent
mAtmInternal.resumeTopActivities(false /* scheduleIdle */);
if (isBootingSystemUser) {
//发送用户switch播送
mUserController.sendUserSwitchBroadcasts(-1, currentUserId);
}
//
BinderInternal.nSetBinderProxyCountWatermarks(BINDER_PROXY_HIGH_WATERMARK,
BINDER_PROXY_LOW_WATERMARK);
BinderInternal.nSetBinderProxyCountEnabled(true);
BinderInternal.setBinderProxyCountCallback(
(uid) -> {
BinderProxy.dumpProxyDebugInfo();
if (uid == Process.SYSTEM_UID) {
Slog.i(TAG, "Skipping kill (uid is SYSTEM)");
} else {
killUid(UserHandle.getAppId(uid), UserHandle.getUserId(uid),
"Too many Binders sent to SYSTEM");
VMRuntime.getRuntime().requestConcurrentGC();
}
}, mHandler);
// Load the component aliases.
t.traceBegin("componentAlias");
mComponentAliasResolver.onSystemReady(mConstants.mEnableComponentAlias,
mConstants.mComponentAliasOverrides);
t.traceEnd(); // componentAlias
t.traceEnd(); // PhaseActivityManagerReady
}
}
>1.watchDeviceProvisioning
如果Settings.Global.DEVICE_PROVISIONED已经是1，直接修正体系属性，没有的话注册observer，监听改动
private void watchDeviceProvisioning(Context context) {
// setting system property based on whether device is provisioned
if (isDeviceProvisioned(context)) {
SystemProperties.set(SYSTEM_PROPERTY_DEVICE_PROVISIONED, "1");
} else {
// watch for device provisioning change
context.getContentResolver().registerContentObserver(
Settings.Global.getUriFor(Settings.Global.DEVICE_PROVISIONED), false,
new ContentObserver(new Handler(Looper.getMainLooper())) {
@Override
public void onChange(boolean selfChange) {
if (isDeviceProvisioned(context)) {
SystemProperties.set(SYSTEM_PROPERTY_DEVICE_PROVISIONED, "1");
context.getContentResolver().unregisterContentObserver(this);
}
}
});
}
}
>2.startPersistentApps
依据flag查找persisitent使用并创立进程
void startPersistentApps(int matchFlags) {
if (mFactoryTest == FactoryTest.FACTORY_TEST_LOW_LEVEL) return;
synchronized (this) {
try {
final List<ApplicationInfo> apps = AppGlobals.getPackageManager()
.getPersistentApplications(STOCK_PM_FLAGS | matchFlags).getList();
for (ApplicationInfo app : apps) {
if (!"android".equals(app.packageName)) {
final ProcessRecord proc = addAppLocked(
app, null, false, null /* ABI override */,
ZYGOTE_POLICY_FLAG_BATCH_LAUNCH);
if (proc != null) {
proc.mProfile.addHostingComponentType(
HOSTING_COMPONENT_TYPE_PERSISTENT);
}
}
}
} catch (RemoteException ex) {
}
}
}
4.ActivityTaskManagerService
4.1.Lifecycle
ATMS的静态内部类，构造办法里实例化了一个ATMS
public static final class Lifecycle extends SystemService {
private final ActivityTaskManagerService mService;
public Lifecycle(Context context) {
super(context);
mService = new ActivityTaskManagerService(context);
}
>1.getService
public ActivityTaskManagerService getService() {
return mService;
}
4.2.onSystemReady
public void onSystemReady() {
synchronized (mGlobalLock) {
final PackageManager pm = mContext.getPackageManager();
mHasHeavyWeightFeature = pm.hasSystemFeature(FEATURE_CANT_SAVE_STATE);
mHasLeanbackFeature = pm.hasSystemFeature(FEATURE_LEANBACK);
mVrController.onSystemReady();
mRecentTasks.onSystemReadyLocked();
mTaskSupervisor.onSystemReady();
mActivityClientController.onSystemReady();
}
}
4.3.getHomeIntent
正常状况下，便是Intent.ACTION_MAIN，Intent.CATEGORY_HOME
//默许便是main，工厂测验形式下会修正这个，正常状况便是这个
String mTopAction = Intent.ACTION_MAIN;
Intent getHomeIntent() {
Intent intent = new Intent(mTopAction, mTopData != null ? Uri.parse(mTopData) : null);
//这个默许也是null，工厂测验形式下才有值
intent.setComponent(mTopComponent);
intent.addFlags(Intent.FLAG_DEBUG_TRIAGED_MISSING);
if (mFactoryTest != FactoryTest.FACTORY_TEST_LOW_LEVEL) {
intent.addCategory(Intent.CATEGORY_HOME);
}
return intent;
}
4.4.startHomeOnAllDisplays
public boolean startHomeOnAllDisplays(int userId, String reason) {
synchronized (mGlobalLock) {
//见5.1
return mRootWindowContainer.startHomeOnAllDisplays(userId, reason);
}
}
5.RootWindowContainer.java
5.1.startHomeOnAllDisplays
循环一切的display发动home页
boolean startHomeOnAllDisplays(int userId, String reason) {
boolean homeStarted = false;
for (int i = getChildCount() - 1; i >= 0; i--) {
final int displayId = getChildAt(i).mDisplayId;
homeStarted |= startHomeOnDisplay(userId, reason, displayId);
}
return homeStarted;
}
>1.startHomeOnDisplay
boolean startHomeOnDisplay(int userId, String reason, int displayId) {
return startHomeOnDisplay(userId, reason, displayId, false /* allowInstrumenting */,
false /* fromHomeKey */);
}
>2.startHomeOnDisplay
boolean startHomeOnDisplay(int userId, String reason, int displayId, boolean allowInstrumenting,
boolean fromHomeKey) {
// Fallback to top focused display or default display if the displayId is invalid.
if (displayId == INVALID_DISPLAY) {
final Task rootTask = getTopDisplayFocusedRootTask();
displayId = rootTask != null ? rootTask.getDisplayId() : DEFAULT_DISPLAY;
}
final DisplayContent display = getDisplayContent(displayId);
return display.reduceOnAllTaskDisplayAreas((taskDisplayArea, result) ->
//见5.2
result | startHomeOnTaskDisplayArea(userId, reason, taskDisplayArea,
allowInstrumenting, fromHomeKey),
false /* initValue */);
}
5.2.startHomeOnTaskDisplayArea
发动home页
boolean startHomeOnTaskDisplayArea(int userId, String reason, TaskDisplayArea taskDisplayArea,
boolean allowInstrumenting, boolean fromHomeKey) {
// Fallback to top focused display area if the provided one is invalid.
if (taskDisplayArea == null) {
final Task rootTask = getTopDisplayFocusedRootTask();
taskDisplayArea = rootTask != null ? rootTask.getDisplayArea()
: getDefaultTaskDisplayArea();
}
Intent homeIntent = null;
ActivityInfo aInfo = null;
//默许的屏幕
if (taskDisplayArea == getDefaultTaskDisplayArea()) {
//见4.3
homeIntent = mService.getHomeIntent();
//依据intent获取最匹配的ActivityInfo，见弥补1
aInfo = resolveHomeActivity(userId, homeIntent);
//日志见末节6
System.out.println("mylog========home info==="+aInfo.packageName+","+aInfo.name);
} else if (shouldPlaceSecondaryHomeOnDisplayArea(taskDisplayArea)) {
Pair<ActivityInfo, Intent> info = resolveSecondaryHomeActivity(userId, taskDisplayArea);
aInfo = info.first;
homeIntent = info.second;
}
if (aInfo == null || homeIntent == null) {
return false;
}
//见弥补2
if (!canStartHomeOnDisplayArea(aInfo, taskDisplayArea, allowInstrumenting)) {
return false;
}
// Updates the home component of the intent.
homeIntent.setComponent(new ComponentName(aInfo.applicationInfo.packageName, aInfo.name));
homeIntent.setFlags(homeIntent.getFlags() | FLAG_ACTIVITY_NEW_TASK);
// Updates the extra information of the intent.
if (fromHomeKey) {
homeIntent.putExtra(WindowManagerPolicy.EXTRA_FROM_HOME_KEY, true);
if (mWindowManager.getRecentsAnimationController() != null) {
mWindowManager.getRecentsAnimationController().cancelAnimationForHomeStart();
}
}
homeIntent.putExtra(WindowManagerPolicy.EXTRA_START_REASON, reason);
// Update the reason for ANR debugging to verify if the user activity is the one that
// actually launched.
final String myReason = reason + ":" + userId + ":" + UserHandle.getUserId(
aInfo.applicationInfo.uid) + ":" + taskDisplayArea.getDisplayId();
//发动home页
mService.getActivityStartController().startHomeActivity(homeIntent, aInfo, myReason,
taskDisplayArea);
return true;
}
>1.resolveHomeActivity
依据intent查找activityInfo，咱们这儿走的else，intent里只配置了action和category
ActivityInfo resolveHomeActivity(int userId, Intent homeIntent) {
//GET_SHARED_LIBRARY_FILES = 0x00000400;
final int flags = ActivityManagerService.STOCK_PM_FLAGS;
final ComponentName comp = homeIntent.getComponent();
ActivityInfo aInfo = null;
try {
if (comp != null) {
// Factory test.
aInfo = AppGlobals.getPackageManager().getActivityInfo(comp, flags, userId);
} else {
final String resolvedType =
homeIntent.resolveTypeIfNeeded(mService.mContext.getContentResolver());
//走这儿，逻辑见弥补代码
final ResolveInfo info = AppGlobals.getPackageManager()//便是IPackageManager
.resolveIntent(homeIntent, resolvedType, flags, userId);
if (info != null) {
aInfo = info.activityInfo;
}
}
} catch (RemoteException e) {
// ignore
}
if (aInfo == null) {
Slog.wtf(TAG, "No home screen found for " + homeIntent, new Throwable());
return null;
}
aInfo = new ActivityInfo(aInfo);
aInfo.applicationInfo = mService.getAppInfoForUser(aInfo.applicationInfo, userId);
return aInfo;
}
>2.canStartHomeOnDisplayArea
看下这个activity是否允许发动
boolean canStartHomeOnDisplayArea(ActivityInfo homeInfo, TaskDisplayArea taskDisplayArea,
boolean allowInstrumenting) {
if (mService.mFactoryTest == FactoryTest.FACTORY_TEST_LOW_LEVEL
&& mService.mTopAction == null) {
//工程测验形式
return false;
}
final WindowProcessController app =
mService.getProcessController(homeInfo.processName, homeInfo.applicationInfo.uid);
if (!allowInstrumenting && app != null && app.isInstrumenting()) {
//已经在发动中了.
return false;
}
final int displayId = taskDisplayArea != null ? taskDisplayArea.getDisplayId()
: INVALID_DISPLAY;
if (displayId == DEFAULT_DISPLAY || (displayId != INVALID_DISPLAY
&& displayId == mService.mVr2dDisplayId)) {
//默许屏幕或许虚拟的第二个屏幕是允许发动的
return true;
}
if (!shouldPlaceSecondaryHomeOnDisplayArea(taskDisplayArea)) {
return false;
}
final boolean supportMultipleInstance = homeInfo.launchMode != LAUNCH_SINGLE_TASK
&& homeInfo.launchMode != LAUNCH_SINGLE_INSTANCE;
if (!supportMultipleInstance) {
//activity不支撑多个实例
return false;
}
return true;
}
5.3.intent查activityInfo
>1.ActivityThread
ActivityThread
public static IPackageManager getPackageManager() {
if (sPackageManager != null) {
return sPackageManager;
}
//见下边的弥补代码2，能够看到binder便是IPackageManagerImpl
final IBinder b = ServiceManager.getService("package");
sPackageManager = IPackageManager.Stub.asInterface(b);
return sPackageManager;
}
>2.PackageManagerService.java
IPackageManagerImpl iPackageManager = m.new IPackageManagerImpl();
ServiceManager.addService("package", iPackageManager);
public class IPackageManagerImpl extends IPackageManagerBase {
父类
public final ResolveInfo resolveIntent(Intent intent, String resolvedType,
@PackageManager.ResolveInfoFlagsBits long flags, int userId) {
return mResolveIntentHelper.resolveIntentInternal(snapshot(), intent,
resolvedType, flags, 0 /*privateResolveFlags*/, userId, false,
Binder.getCallingUid());
}
>3.ResolveIntentHelper.java
上边的办法终究走到这儿
public ResolveInfo resolveIntentInternal(Computer computer, Intent intent, String resolvedType,
@PackageManager.ResolveInfoFlagsBits long flags,
@PackageManagerInternal.PrivateResolveFlags long privateResolveFlags, int userId,
boolean resolveForStart, int filterCallingUid) {
//..
//这儿是依据intent查找可用的info
final List<ResolveInfo> query = computer.queryIntentActivitiesInternal(intent,
resolvedType, flags, privateResolveFlags, filterCallingUid, userId,
resolveForStart, true /*allowDynamicSplits*/);
//..
//如果有多个的话，这儿挑选一个最匹配的
final ResolveInfo bestChoice = chooseBestActivity(computer, intent, resolvedType, flags,
privateResolveFlags, query, userId, queryMayBeFiltered);
//..
>4.ComputerEngine.java
public final @NonNull List<ResolveInfo> queryIntentActivitiesInternal(Intent intent,
//..
} else {
//走这儿
QueryIntentActivitiesResult lockedResult =
queryIntentActivitiesInternalBody(
intent, resolvedType, flags, filterCallingUid, userId,
resolveForStart, allowDynamicSplits, pkgName, instantAppPkgName);
//..
//咱们这儿走的是else
return skipPostResolution ? list : applyPostResolutionFilter(
list, instantAppPkgName, allowDynamicSplits, filterCallingUid,
resolveForStart, userId, intent);
}
//
private final ComponentResolverApi mComponentResolver;
public @NonNull QueryIntentActivitiesResult queryIntentActivitiesInternalBody(
//..
List<ResolveInfo> result = null;
//..
//见弥补5
result = filterIfNotSystemUser(mComponentResolver.queryActivities(this,
intent, resolvedType, flags, userId), userId);
>5.ComponentResolverBase
public abstract class ComponentResolverBase extends WatchableImpl implements ComponentResolverApi {
protected ComponentResolver.ActivityIntentResolver mActivities;
public List<ResolveInfo> queryActivities(@NonNull Computer computer, @NonNull Intent intent,
@Nullable String resolvedType, long flags, int userId) {
return mActivities.queryIntent(computer, intent, resolvedType, flags, userId);
}
>6.ComponentResolver.java
public static class ActivityIntentResolver
extends MimeGroupsAwareIntentResolver<Pair<ParsedActivity, ParsedIntentInfo>, ResolveInfo> {
List<ResolveInfo> queryIntent(@NonNull Computer computer, Intent intent,
String resolvedType, long flags, int userId) {
if (!mUserManager.exists(userId)) {
return null;
}
//父类处理
return super.queryIntent(computer, intent, resolvedType,
(flags & PackageManager.MATCH_DEFAULT_ONLY) != 0, userId, flags);
}
上边的父类是这个，queryIntent的详细完成在这个的父类IntentResolver里处理的
private abstract static class MimeGroupsAwareIntentResolver<F extends Pair<?
extends ParsedComponent, ParsedIntentInfo>, R>
extends IntentResolver<F, R> {
>6.1.ActivityIntentResolver
弥补6ComponentResolver的内部类
public static class ActivityIntentResolver
extends MimeGroupsAwareIntentResolver<Pair<ParsedActivity, ParsedIntentInfo>, ResolveInfo> {
//...
protected ResolveInfo newResult(@NonNull Computer computer,
Pair<ParsedActivity, ParsedIntentInfo> pair, int match, int userId,
long customFlags) {
ParsedActivity activity = pair.first;
ParsedIntentInfo info = pair.second;
IntentFilter intentFilter = info.getIntentFilter();
final PackageStateInternal packageState =
computer.getPackageStateInternal(activity.getPackageName());
if (packageState == null || packageState.getPkg() == null
|| !PackageStateUtils.isEnabledAndMatches(packageState, activity, customFlags,
userId)) {
//com.android.launcher3/.uioverrides.QuickstepLauncher ，在isEnabledAndMatches办法里回来了false，看弥补8
return null;
}
>7.IntentResolver.java
protected final List<R> queryIntent(@NonNull PackageDataSnapshot snapshot, Intent intent,
//..
if (resolvedType == null && scheme == null && intent.getAction() != null) {
firstTypeCut = mActionToFilter.get(intent.getAction());
//咱们只要action和category,所以会走这儿
}
//.
FastImmutableArraySet<String> categories = getFastIntentCategories(intent);
Computer computer = (Computer) snapshot;
if (firstTypeCut != null) {
buildResolveList(computer, intent, categories, debug, defaultOnly, resolvedType,
scheme, firstTypeCut, finalList, userId, customFlags);
}
//..
buildResolveList
private void buildResolveList(@NonNull Computer computer, Intent intent,
//..
F filter;//下边有贴是个Pair目标，存储的activity组件以及解析器目标
for (i=0; i<N && (filter=src[i]) != null; i++) {
//依据filter数据获取intentFilter
IntentFilter intentFilter = getIntentFilter(filter);
//.
//这儿看下data，scheme是否匹配
match = intentFilter.match(action, resolvedType, scheme, data, categories, TAG);
if (match >= 0) {
if (!defaultOnly || intentFilter.hasCategory(Intent.CATEGORY_DEFAULT)) {
//这儿便是验证组件是否是咱们要的，详细完成见末节6的内部类
final R oneResult = newResult(computer, filter, match, userId, customFlags);
- firstTypeCut是个数组，里面的数据是这样的
Pair{Activity{ad74d61 com.android.settings/.FallbackHome} com.android.server.pm.pkg.component.ParsedIntentInfoImpl@145b086}
>8.PackageStateUtils
public static boolean isEnabledAndMatches(@Nullable PackageStateInternal packageState,
@NonNull ParsedMainComponent component, long flags, int userId) {
if (packageState == null) {
return false;
}
final AndroidPackage pkg = packageState.getPkg();
if (pkg == null) {
return false;
}
final PackageUserStateInternal userState = packageState.getUserStateOrDefault(userId);
return PackageUserStateUtils.isMatch(userState, packageState.isSystem(),
pkg.isEnabled(), component, flags);
}
>9.PackageUserStateUtils.java
homeIntent满足条件的有两个，见6.1.2,6.1.3,
- 在这儿launcher被过滤掉了，因为isComponentDirectBootAware是false，而咱们的flags是要求MATCH_DIRECT_BOOT_AWARE的，所以终究的matchesUnaware和matchesAware都false
- FallbackHome这儿回来的是true，因为它的isComponentDirectBootAware是true
/**
* Test if the given component is considered installed, enabled and a match for the given
* flags.
*
* <p>
* Expects at least one of {@link PackageManager#MATCH_DIRECT_BOOT_AWARE} and {@link
* PackageManager#MATCH_DIRECT_BOOT_UNAWARE} are specified in {@code flags}.
* </p>
*/
public static boolean isMatch(@NonNull PackageUserState state, boolean isSystem,
boolean isPackageEnabled, boolean isComponentEnabled,
boolean isComponentDirectBootAware, String componentName, long flags) {
final boolean matchUninstalled = (flags & PackageManager.MATCH_KNOWN_PACKAGES) != 0;
if (!isAvailable(state, flags) && !(isSystem && matchUninstalled)) {
return reportIfDebug(false, flags);
}
if (!isEnabled(state, isPackageEnabled, isComponentEnabled, componentName, flags)) {
return reportIfDebug(false, flags);
}
if ((flags & PackageManager.MATCH_SYSTEM_ONLY) != 0) {
if (!isSystem) {
return reportIfDebug(false, flags);
}
}
final boolean matchesUnaware = ((flags & PackageManager.MATCH_DIRECT_BOOT_UNAWARE) != 0)
&& !isComponentDirectBootAware;
final boolean matchesAware = ((flags & PackageManager.MATCH_DIRECT_BOOT_AWARE) != 0)
&& isComponentDirectBootAware;
return reportIfDebug(matchesUnaware || matchesAware, flags);
}
6.日志剖析
6.1.配置
>1.google setupwizard
- priority是5
- activity里有声明directBootAware
<activity
android:theme="@ref/0x7f1301d3"
android:label="@ref/0x7f120030"
android:name="com.google.android.setupwizard.SetupWizardActivity"
android:exported="true"
android:excludeFromRecents="true"
android:launchMode="2"
android:configChanges="0x47b3"
android:immersive="true"
android:directBootAware="true">
<intent-filter
android:priority="5">
<action
android:name="android.intent.action.MAIN" />
<action
android:name="android.intent.action.DEVICE_INITIALIZATION_WIZARD" />
<category
android:name="android.intent.category.HOME" />
<category
android:name="android.intent.category.DEFAULT" />
<category
android:name="android.intent.category.SETUP_WIZARD" />
</intent-filter>
</activity>
>2.settings
- priority=”-1000″
- application里有声明directBootAware
<application
android:name=".SettingsApplication"
android:directBootAware="true">
<!-- Triggered when user-selected home app isn't encryption aware -->
<activity android:name=".FallbackHome"
android:excludeFromRecents="true"
android:label=""
android:screenOrientation="nosensor"
android:taskAffinity="com.android.settings.FallbackHome"
android:exported="true"
android:theme="@style/FallbackHome"
android:configChanges="keyboardHidden">
<intent-filter android:priority="-1000">
<action android:name="android.intent.action.MAIN" />
<category android:name="android.intent.category.HOME" />
<category android:name="android.intent.category.DEFAULT" />
</intent-filter>
</activity>
>3.SearchLauncher
- priority没有设置，那么便是默许值0
<activity
android:name="com.android.searchlauncher.SearchLauncher"
android:launchMode="singleTask"
android:clearTaskOnLaunch="true"
android:stateNotNeeded="true"
android:theme="@style/LauncherTheme"
android:windowSoftInputMode="adjustPan"
android:screenOrientation="unspecified"
android:configChanges="keyboard|keyboardHidden|mcc|mnc|navigation|orientation|screenSize|screenLayout|smallestScreenSize"
android:resizeableActivity="true"
android:resumeWhilePausing="true"
android:taskAffinity=""
android:enabled="true"
android:exported="true">
<intent-filter>
<action android:name="android.intent.action.MAIN" />
<action android:name="android.intent.action.SHOW_WORK_APPS" />
<category android:name="android.intent.category.HOME" />
<category android:name="android.intent.category.DEFAULT" />
<category android:name="android.intent.category.MONKEY"/>
<category android:name="android.intent.category.LAUNCHER_APP" />
</intent-filter>
<meta-data
android:name="com.android.launcher3.grid.control"
android:value="${packageName}.grid_control" />
<meta-data
android:name="com.android.launcher3.themedicon.option"
android:value="${packageName}.grid_control" />
</activity>
6.2.log
>1.factory reset
- 6.1有贴3种home，factory reset今后，setupwizard的优先级最高，所以回来的是这个。
- 引导页出现后20多秒才收到pre_boot_complete播送，LOCKED_BOOT_COMPLETED播送更晚
17:51:31.903 mylog========home info===com.google.android.setupwizard,com.google.android.setupwizard.SetupWizardActivity
17:52:01.107 com.android.settings mylog===SettingsInitialize==action=android.intent.action.PRE_BOOT_COMPLETED
17:52:08.325 mylog========sendBootCompleted===Intent { act=android.intent.action.LOCKED_BOOT_COMPLETED flg=0x89000010 (has extras) }
>2.正常发动
- setupwizard流程走完今后就被disable调用了，这时分home类型的就只要2个了。
- FallbackHome先发动，尽管优先级是负的，5.3里有剖析，因为它支撑boot aware，boot阶段只要它满足条件，那个launcher不支撑boot aware，所以boot阶段不满足条件
17:50:52.381 mylog========home info===com.android.settings,com.android.settings.FallbackHome
17:51:01.101 mylog========home info===com.android.launcher3,com.android.searchlauncher.SearchLauncher
17:51:05.636 mylog========sendBootCompleted===Intent { act=android.intent.action.LOCKED_BOOT_COMPLETED flg=0x89000010 (has extras) }
6.3.FallbackHome.java
private void maybeFinish() {
if (getSystemService(UserManager.class).isUserUnlocked()) {
final Intent homeIntent = new Intent(Intent.ACTION_MAIN)
.addCategory(Intent.CATEGORY_HOME);
//见弥补代码，看怎么获取info
final ResolveInfo homeInfo = getPackageManager().resolveActivity(homeIntent, 0);
//要保证查询出来的结果不是FallbackHome，才会关闭这个页面
if (Objects.equals(getPackageName(), homeInfo.activityInfo.packageName)) {
Log.d(TAG, "User unlocked but no home; let's hope someone enables one soon?");
mHandler.sendEmptyMessageDelayed(0, 500);
} else {
Log.d(TAG, "User unlocked and real home found; let's go!");
getSystemService(PowerManager.class).userActivity(
SystemClock.uptimeMillis(), false);
finish();
}
}
}
>1.ContextImpl
public PackageManager getPackageManager() {
if (mPackageManager != null) {
return mPackageManager;
}
//这个见5.3.1
final IPackageManager pm = ActivityThread.getPackageManager();
if (pm != null) {
// Doesn't matter if we make more than one instance.
return (mPackageManager = new ApplicationPackageManager(this, pm));
}
return null;
}
>2.ApplicationPackageManager
resolveActivity办法，详细见上边的末节5.3
public ResolveInfo resolveActivityAsUser(Intent intent, ResolveInfoFlags flags, int userId) {
try {
return mPM.resolveIntent(
intent,
intent.resolveTypeIfNeeded(mContext.getContentResolver()),
updateFlagsForComponent(flags.getValue(), userId, intent),
userId);
}
}
6.4.log剖析
- AMS的systemReady办法里,如下代码，
if (isBootingSystemUser && !UserManager.isHeadlessSystemUserMode()) { mAtmInternal.startHomeOnAllDisplays(currentUserId, "systemReady"); }
-
然后走到4.4
-
再走到5.1,5.2
-
5.2里查找home intent，查找的详细逻辑在末节6.3.4的办法里
-
factory reset今后，home intent回来的便是setupwizard使用
-
正常发动的时分，回来的FallbackHome
