1.简介

学习下settings》system》reset options相关

2.reset options

android13#settings#reset options

2.1.system_dashboard_fragment.xml

    <Preference
        android:key="reset_dashboard"
        android:title="@string/reset_dashboard_title"
        android:icon="@drawable/ic_restore"
        android:order="-30"
        android:fragment="com.android.settings.system.ResetDashboardFragment"
        settings:controller="com.android.settings.system.ResetPreferenceController"/>

>1.ResetPreferenceController

reset options是否可用是装备里的字段操控的

    public int getAvailabilityStatus() {
        return mContext.getResources().getBoolean(R.bool.config_show_reset_dashboard)
                ? AVAILABLE : UNSUPPORTED_ON_DEVICE;
    }

2.2.ResetDashboardFragment

这个便是点击reset options今后跳转的页面

>1.reset_dashboard_fragment.xml

android13#settings#reset options

<PreferenceScreen
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:settings="http://schemas.android.com/apk/res-auto"
    android:title="@string/reset_dashboard_title">
    <!-- Network reset ,跳转到fragment见末节3-->
    <com.android.settingslib.RestrictedPreference
        android:key="network_reset_pref"
        android:title="@string/reset_network_title"
        settings:userRestriction="no_network_reset"
        settings:useAdminDisabledSummary="true"
        android:fragment="com.android.settings.ResetNetwork" />
    <!-- Reset app preferences -->
    <Preference
        android:key="reset_app_prefs"
        android:title="@string/reset_app_preferences" />
    <!-- Erase Euicc data -->
    <Preference
        android:key="erase_euicc_data"
        android:title="@string/reset_esim_title"
        settings:controller="com.android.settings.network.EraseEuiccDataController" />
    <!-- Factory reset -->
    <com.android.settingslib.RestrictedPreference
        android:key="factory_reset"
        android:title="@string/main_clear_title"
        settings:keywords="@string/keywords_factory_data_reset"
        settings:userRestriction="no_factory_reset"
        settings:useAdminDisabledSummary="true"
        android:fragment="com.android.settings.MainClear" />
</PreferenceScreen>

>2.buildPreferenceControllers

相关的controller,详细见2.3

    private static List<AbstractPreferenceController> buildPreferenceControllers(Context context,
            Lifecycle lifecycle) {
        final List<AbstractPreferenceController> controllers = new ArrayList<>();
        controllers.add(new NetworkResetPreferenceController(context));
        controllers.add(new FactoryResetPreferenceController(context));
        controllers.add(new ResetAppPrefPreferenceController(context, lifecycle));
        return controllers;
    }

2.3.Controller

>1.NetworkResetPreferenceController

网络重置,操控是否可用

    public NetworkResetPreferenceController(Context context) {
        super(context);
        mRestrictionChecker = new NetworkResetRestrictionChecker(context);
    }
    @Override
    public boolean isAvailable() {
        return !mRestrictionChecker.hasUserRestriction();
    }

>2.ResetAppPrefPreferenceController

重置app的操控器

    public boolean handlePreferenceTreeClick(Preference preference) {
        if (!TextUtils.equals(preference.getKey(), getPreferenceKey())) {
            return false;
        }
        mResetAppsHelper.buildResetDialog();//显现一个dialog
        return true;
    }
    @Override
    public boolean isAvailable() {
        return true;//默许可用
    }

//点击是弹出一个对话框

    void buildResetDialog() {
        if (mResetDialog == null) {
            mResetDialog = new AlertDialog.Builder(mContext)
                    .setTitle(R.string.reset_app_preferences_title)
                    .setMessage(R.string.reset_app_preferences_desc)
                    .setPositiveButton(R.string.reset_app_preferences_button, this)
                    .setNegativeButton(R.string.cancel, null)
                    .setOnDismissListener(this)
                    .show();
        }
    }

>3.FactoryResetPreferenceController

恢复出厂设置的操控器

    public FactoryResetPreferenceController(Context context) {
        super(context);
        mUm = (UserManager) context.getSystemService(Context.USER_SERVICE);
    }
    /**体系用户或者测试用户可用*/
    @Override
    public boolean isAvailable() {
        return mUm.isAdminUser() || Utils.isDemoUser(mContext);
    }
    @Override
    public boolean handlePreferenceTreeClick(Preference preference) {
        if (KEY_FACTORY_RESET.equals(preference.getKey())) {
        //点击跳转到其他activity,见末节4
            final Intent intent = new Intent(mContext, Settings.FactoryResetActivity.class);
            mContext.startActivity(intent);
            return true;
        }
        return false;
    }

>4.EraseEuiccDataController

这个是sim卡相关的,有对应的功用才可见

    public boolean handlePreferenceTreeClick(Preference preference) {
        if (!TextUtils.equals(preference.getKey(), getPreferenceKey())) {
            return false;
        }
        //选项的点击事情
        EraseEuiccDataDialogFragment.show(mHostFragment);
        return true;
    }
    @Override
    public int getAvailabilityStatus() {
    //是否可用,
        return mContext.getPackageManager().hasSystemFeature(
                PackageManager.FEATURE_TELEPHONY_EUICC) ? AVAILABLE_UNSEARCHABLE
                : UNSUPPORTED_ON_DEVICE;
    }

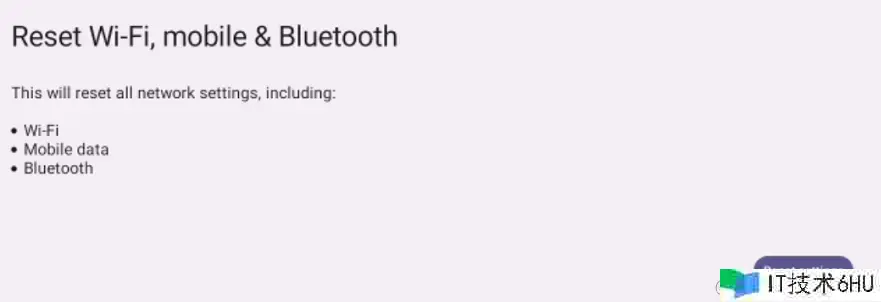

3.ResetNetwork

android13#settings#reset options

public class ResetNetwork extends InstrumentedFragment {

3.1.reset_network.xml

<LinearLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:paddingStart="?android:attr/listPreferredItemPaddingStart"
    android:paddingEnd="?android:attr/listPreferredItemPaddingEnd"
    android:orientation="vertical" >
    <androidx.core.widget.NestedScrollView
        android:layout_width="match_parent"
        android:layout_height="0dip"
        android:layout_marginTop="12dp"
        android:layout_weight="1">
        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="vertical">
            <TextView //图上看到的文字便是这个
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:textAppearance="@style/TextAppearance.PreferenceTitle.SettingsLib"
                android:textDirection="locale"
                android:text="@string/reset_network_desc" />
            <include layout="@layout/reset_esim_checkbox"/>
        </LinearLayout>
    </androidx.core.widget.NestedScrollView>
    <Spinner android:id="@+id/reset_network_subscription"
        android:layout_gravity="center_horizontal"
        android:layout_marginTop="20dp"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content" />
    <Button
        android:id="@+id/initiate_reset_network"
        android:layout_gravity="end"
        android:layout_marginEnd="@dimen/reset_button_margin_end"
        android:layout_marginTop="20dp"
        android:layout_marginBottom="12dp"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="@string/reset_network_button_text"
        android:gravity="center"
        style="@style/ActionPrimaryButton"/>
</LinearLayout>

>1.reset_esim_checkbox.xml

这个是擦除sim信息的布局,没有sim卡信息的话这儿就不显现了

<LinearLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:id="@+id/erase_esim_container"
    style="@style/SudDescription"
    android:layout_marginTop="40dp"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:orientation="horizontal"
    android:focusable="true"
    android:clickable="true"
    android:visibility="gone">
    <CheckBox
        android:id="@+id/erase_esim"
        style="@style/SudCheckBox"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_gravity="center_vertical"
        android:focusable="false"
        android:clickable="false"
        android:checked="false"
        android:duplicateParentState="true"/>
    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_gravity="center_vertical"
        android:orientation="vertical">
        <TextView
            style="@style/TextAppearance.PreferenceTitle.SettingsLib"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="@string/reset_esim_title"/>
        <TextView
            style="?android:attr/textAppearanceSmall"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="@string/reset_esim_desc"/>
    </LinearLayout>
</LinearLayout>

>2.reset_network_desc

<string name="reset_network_desc">This will reset all network settings, including:nn
<li>Wiu2011Fi</li>n
<li>Mobile data</li>n
<li>Bluetooth</li>"</string>

3.2.onCreateView

    public View onCreateView(LayoutInflater inflater, ViewGroup container,
            Bundle savedInstanceState) {
        View view = (new ResetNetworkRestrictionViewBuilder(getActivity())).build();
        if (view != null) {
            return view;
        }
        //加载布局
        mContentView = inflater.inflate(R.layout.reset_network, null);
        establishInitialState(getActiveSubscriptionInfoList());
        return mContentView;
    }

>1.getActiveSubscriptionInfoList

获取活动的订阅信息列表,没有的话回来空

    private List<SubscriptionInfo> getActiveSubscriptionInfoList() {
        SubscriptionManager mgr = getActivity().getSystemService(SubscriptionManager.class);
        if (mgr == null) {
            Log.w(TAG, "No SubscriptionManager");
            return Collections.emptyList();
        }
        return Optional.ofNullable(mgr.getActiveSubscriptionInfoList())
                .orElse(Collections.emptyList());
    }

3.3.onCreate

    public void onCreate(@Nullable Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        getActivity().setTitle(R.string.reset_network_title);
        //注册一个intent的launcher后边用
        mActivityResultLauncher = registerForActivityResult(
                new ActivityResultContracts.StartActivityForResult(),
                result -> onActivityLauncherResult(result));
    }

3.4.establishInitialState

    private void establishInitialState(List<SubscriptionInfo> subscriptionsList) {
        mSubscriptionSpinner = (Spinner) mContentView.findViewById(R.id.reset_network_subscription);
        //sim卡相关的容器以及checkbox
        mEsimContainer = mContentView.findViewById(R.id.erase_esim_container);
        mEsimCheckbox = mContentView.findViewById(R.id.erase_esim);
        mSubscriptions = subscriptionsList;
        //有数据的话Spinner可见,没有数据的话不可见
        if (mSubscriptions != null && mSubscriptions.size() > 0) {
            // Get the default subscription in the order of data, voice, sms, first up.
            int defaultSubscription = SubscriptionManager.getDefaultDataSubscriptionId();
            if (!SubscriptionManager.isUsableSubscriptionId(defaultSubscription)) {
                defaultSubscription = SubscriptionManager.getDefaultVoiceSubscriptionId();
            }
            if (!SubscriptionManager.isUsableSubscriptionId(defaultSubscription)) {
                defaultSubscription = SubscriptionManager.getDefaultSmsSubscriptionId();
            }
            if (!SubscriptionManager.isUsableSubscriptionId(defaultSubscription)) {
                defaultSubscription = SubscriptionManager.getDefaultSubscriptionId();
            }
            int selectedIndex = 0;
            int size = mSubscriptions.size();
            List<String> subscriptionNames = new ArrayList<>();
            for (SubscriptionInfo record : mSubscriptions) {
                if (record.getSubscriptionId() == defaultSubscription) {
                    // Set the first selected value to the default
                    selectedIndex = subscriptionNames.size();
                }
                String name = SubscriptionUtil.getUniqueSubscriptionDisplayName(
                        record, getContext()).toString();
                if (TextUtils.isEmpty(name)) {
                    name = record.getNumber();
                }
                if (TextUtils.isEmpty(name)) {
                    CharSequence carrierName = record.getCarrierName();
                    name = TextUtils.isEmpty(carrierName) ? "" : carrierName.toString();
                }
                if (TextUtils.isEmpty(name)) {
                    name = String.format("MCC:%s MNC:%s Slot:%s Id:%s", record.getMcc(),
                            record.getMnc(), record.getSimSlotIndex(), record.getSubscriptionId());
                }
                subscriptionNames.add(name);
            }
            ArrayAdapter<String> adapter = new ArrayAdapter<String>(getActivity(),
                    android.R.layout.simple_spinner_item, subscriptionNames);
            adapter.setDropDownViewResource(android.R.layout.simple_spinner_dropdown_item);
            mSubscriptionSpinner.setAdapter(adapter);
            mSubscriptionSpinner.setSelection(selectedIndex);
            if (mSubscriptions.size() > 1) {
                mSubscriptionSpinner.setVisibility(View.VISIBLE);
            } else {
                mSubscriptionSpinner.setVisibility(View.INVISIBLE);
            }
        } else {
            mSubscriptionSpinner.setVisibility(View.INVISIBLE);
        }
        //右侧button的点击事情
        mInitiateButton = (Button) mContentView.findViewById(R.id.initiate_reset_network);
        mInitiateButton.setOnClickListener(mInitiateListener);
        if (showEuiccSettings(getContext())) {
            mEsimContainer.setVisibility(View.VISIBLE);
            mEsimContainer.setOnClickListener(new OnClickListener() {
                @Override
                public void onClick(View v) {
                    mEsimCheckbox.toggle();
                }
            });
        } else {
            mEsimCheckbox.setChecked(false /* checked */);
        }
    }

>1.showEuiccSettings

eUICC是否可用,能够理解为嵌入式的sim卡,是否显现相关设置

    private boolean showEuiccSettings(Context context) {
        EuiccManager euiccManager =
                (EuiccManager) context.getSystemService(Context.EUICC_SERVICE);
        //不可用
        if (!euiccManager.isEnabled()) {
            return false;
        }
        ContentResolver resolver = context.getContentResolver();
        //sim卡是否下载过装备,或者是否是开发者模式
        return Settings.Global.getInt(resolver, Global.EUICC_PROVISIONED, 0) != 0
                || DevelopmentSettingsEnabler.isDevelopmentSettingsEnabled(context);
    }

>2.mInitiateListener

    private final Button.OnClickListener mInitiateListener = new Button.OnClickListener() {
        @Override
        public void onClick(View v) {
            //先验证keyguard
            if (!runKeyguardConfirmation(KEYGUARD_REQUEST)) {
            //见3.5
                showFinalConfirmation();
            }
        }
    };

>3.runKeyguardConfirmation

    private boolean runKeyguardConfirmation(int request) {
        Resources res = getActivity().getResources();
        final ChooseLockSettingsHelper.Builder builder =
                new ChooseLockSettingsHelper.Builder(getActivity(), this);
        return builder.setRequestCode(request)
                .setTitle(res.getText(R.string.reset_network_title))
                .setActivityResultLauncher(mActivityResultLauncher)
                .show();
    }

3.5.showFinalConfirmation

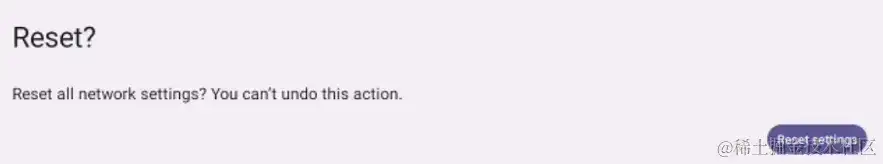

跳到终究的承认页ResetNetworkConfirm.java,如下

android13#settings#reset options

    void showFinalConfirmation() {
        Bundle args = new Bundle();
        ResetNetworkRequest request = new ResetNetworkRequest(
                ResetNetworkRequest.RESET_CONNECTIVITY_MANAGER |
                ResetNetworkRequest.RESET_VPN_MANAGER |
                ResetNetworkRequest.RESET_WIFI_MANAGER |
                ResetNetworkRequest.RESET_WIFI_P2P_MANAGER |
                ResetNetworkRequest.RESET_BLUETOOTH_MANAGER
        );
//...
        new SubSettingLauncher(getContext())
        //跳转到这儿
                .setDestination(ResetNetworkConfirm.class.getName())
                .setArguments(args)
                .setTitleRes(R.string.reset_network_confirm_title)
                .setSourceMetricsCategory(getMetricsCategory())
                .launch();
    }

4.FactoryResetActivity

Settings.java的内部类

    public static class FactoryResetActivity extends SettingsActivity {
        @Override
        protected void onCreate(Bundle savedState) {
            setTheme(SetupWizardUtils.getTheme(this, getIntent()));
            ThemeHelper.trySetDynamicColor(this);
            super.onCreate(savedState);
        }
        @Override
        protected boolean isToolbarEnabled() {
            return false;
        }
    }

4.1.清单文件

        <activity android:name="Settings$FactoryResetActivity"
                  android:permission="android.permission.BACKUP"
                  android:label="@string/main_clear_title"
                  android:exported="true"
                  android:theme="@style/SudThemeGlif.Light">
            <intent-filter>
                <action android:name="com.android.settings.action.FACTORY_RESET"/>
                <category android:name="android.intent.category.DEFAULT"/>
            </intent-filter>
            <meta-data android:name="com.android.settings.FRAGMENT_CLASS"
                       android:value="com.android.settings.MainClear"/>
            <meta-data android:name="com.android.settings.HIGHLIGHT_MENU_KEY"
                       android:value="@string/menu_key_system"/>
        </activity>

5.MainClear

SettingsActivity前边有介绍过,上边的清单文件里有声明meta-data,所以会加载对应的fragment

public class MainClear extends InstrumentedFragment implements OnGlobalLayoutListener {

5.1.onCreateView

    public View onCreateView(LayoutInflater inflater, ViewGroup container,
            Bundle savedInstanceState) {
        final Context context = getContext();
        //是否允许
        final EnforcedAdmin admin = RestrictedLockUtilsInternal.checkIfRestrictionEnforced(context,
                UserManager.DISALLOW_FACTORY_RESET, UserHandle.myUserId());
        final UserManager um = UserManager.get(context);
        final boolean disallow = !um.isAdminUser() || RestrictedLockUtilsInternal
                .hasBaseUserRestriction(context, UserManager.DISALLOW_FACTORY_RESET,
                        UserHandle.myUserId());
        if (disallow && !Utils.isDemoUser(context)) {
            return inflater.inflate(R.layout.main_clear_disallowed_screen, null);
        } else if (admin != null) {
            new ActionDisabledByAdminDialogHelper(getActivity())
                    .prepareDialogBuilder(UserManager.DISALLOW_FACTORY_RESET, admin)
                    .setOnDismissListener(__ -> getActivity().finish())
                    .show();
            return new View(getContext());
        }
        //走到这儿阐明是允许
        mContentView = inflater.inflate(R.layout.main_clear, null);
        establishInitialState();
        return mContentView;
    }

>1.main_clear.xml

<com.google.android.setupdesign.GlifLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:id="@+id/setup_wizard_layout"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:icon="@drawable/ic_delete_accent"
    app:sucHeaderText="@string/main_clear_title">
    <ScrollView
        android:id="@+id/main_clear_scrollview"
        android:layout_width="match_parent"
        android:layout_height="match_parent">
        <LinearLayout
            android:id="@+id/main_clear_container"
            style="@style/SudContentFrame"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_marginTop="16dp"
            android:orientation="vertical">
            <TextView //见弥补3
                style="@style/TextAppearance.PreferenceTitle.SettingsLib"
                android:id="@+id/sud_layout_description"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:text="@string/main_clear_desc"/>
            <TextView //见弥补4
                android:id="@+id/also_erases_external"
                style="@style/TextAppearance.PreferenceTitle.SettingsLib"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:visibility="gone"
                android:text="@string/main_clear_desc_also_erases_external"/>
            <TextView //esim卡
                android:id="@+id/also_erases_esim"
                style="@style/TextAppearance.PreferenceTitle.SettingsLib"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:visibility="gone"
                android:text="@string/main_clear_desc_also_erases_esim"/>
            <TextView //你现在已登录如下账户
                android:id="@+id/accounts_label"
                style="@style/TextAppearance.PreferenceTitle.SettingsLib"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:visibility="gone"
                android:text="@string/main_clear_accounts"/>
            <LinearLayout //这儿便是登录的账户信息,动态增加的
                android:id="@+id/accounts"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:orientation="vertical"
                android:visibility="gone">
                <!-- Do not add any children here as they will be removed in the MainClear.java
                    code. A list of accounts will be inserted programmatically. -->
            </LinearLayout>
            <TextView  //见弥补6
                android:id="@+id/other_users_present"
                style="@style/TextAppearance.PreferenceTitle.SettingsLib"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:visibility="gone"
                android:text="@string/main_clear_other_users_present"/>
            <TextView //见弥补7
                android:id="@+id/no_cancel_mobile_plan"
                style="@style/TextAppearance.PreferenceTitle.SettingsLib"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:visibility="gone"
                android:text="@string/main_clear_desc_no_cancel_mobile_plan"/>
            <TextView //弥补8
                android:id="@+id/erase_external_option_text"
                style="@style/TextAppearance.PreferenceTitle.SettingsLib"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:text="@string/main_clear_desc_erase_external_storage"/>
            <LinearLayout
                android:id="@+id/erase_external_container"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:orientation="horizontal"
                android:focusable="true"
                android:clickable="true">
                <CheckBox
                    android:id="@+id/erase_external"
                    style="@style/SudCheckBox"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content"
                    android:layout_gravity="center_vertical"
                    android:focusable="false"
                    android:clickable="false"
                    android:duplicateParentState="true"/>
                <LinearLayout
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:layout_gravity="center_vertical"
                    android:orientation="vertical">
                    <TextView
                        style="@style/TextAppearance.PreferenceTitle.SettingsLib"
                        android:layout_width="wrap_content"
                        android:layout_height="wrap_content"
                        android:text="@string/erase_external_storage"/>
                    <TextView
                        style="?android:attr/textAppearanceListItemSecondary"
                        android:layout_width="wrap_content"
                        android:layout_height="wrap_content"
                        android:text="@string/erase_external_storage_description"/>
                </LinearLayout>
            </LinearLayout>
            <include layout="@layout/reset_esim_checkbox"/>
        </LinearLayout>
    </ScrollView>
</com.google.android.setupdesign.GlifLayout>

>2.图片

下图是2个文本控件,字符串见弥补3和4

android13#settings#reset options

>3.main_clear_desc

<string name="main_clear_desc" product="tablet" msgid="1651178880680056849">
"This will erase all data from your tablet’s "<b>"internal storage"</b>", including:nn"
<li>"Your Google Account"</li>n
<li>"System and app data and settings"</li>n
<li>"Downloaded apps"</li></string>

>4.main_clear_desc_also_erases_external

<string name="main_clear_desc_also_erases_external" msgid="3687911419628956693">
<li>"Music"</li>n
<li>"Photos"</li>n
<li>"Other user data"</li></string>

>5.main_clear_accounts

 <string name="main_clear_accounts" product="default" msgid="7675859115108318537">
 nn"You are currently signed in to the following accounts:n"</string>

>6.main_clear_other_users_present

 <string name="main_clear_other_users_present" product="default" msgid="2672976674798019077">
 nn"There are other users present on this device.n"</string>

>7.main_clear_desc_no_cancel_mobile_plan

<string name="main_clear_desc_no_cancel_mobile_plan" msgid="369883568059127035">
nn"This will not cancel your mobile service plan."</string>

>8.main_clear_desc_erase_external_storage

<string name="main_clear_desc_erase_external_storage" product="nosdcard" msgid="4441604184663452046">
nn"To clear music, pictures and other user data, the "<b>"USB storage"</b>" needs to be erased."</string>

>9.log

这个是竖屏下打印的ScrollView的父容器结构,能够参阅后边末节6里讲解的替换布局来理解

15:58:05.631  android.widget.ScrollView{6161e8b VFED.V... ......ID 0,0-1120,939 #7f0a0369 app:id/main_clear_scrollview}
15:58:05.631  android.widget.FrameLayout{b443b81 V.E...... ......ID 0,261-1120,1200 #7f0a05b7 app:id/sud_layout_content}
15:58:05.631  android.widget.LinearLayout{cf4d426 V.E...... ......ID 0,0-1120,1200}
15:58:05.631  com.google.android.setupdesign.view.BottomScrollView{8461867 VFED.V... ......ID 0,0-1120,1200 #7f0a05cd app:id/sud_scroll_view}
15:58:05.631  android.widget.LinearLayout{7f1f614 V.E...... ......ID 0,0-1120,1344 #7f0a05c5 app:id/sud_layout_template_content}
## 上边的布局见末节6.2.3竖屏
15:58:05.631  com.google.android.setupdesign.view.IntrinsicSizeFrameLayout{2780ebd V.E...... ......ID 40,204-1160,1548}
15:58:05.631  android.widget.LinearLayout{4ca0cb2 V.E...... ......ID 0,0-1200,1752 #7f0a05a1 app:id/suc_layout_status}
## 上边的布局见6.2.2
15:58:05.631  com.google.android.setupdesign.GlifLayout{d3be569 V.E...... ......ID 0,0-1200,1752 #7f0a0530 app:id/setup_wizard_layout}
15:58:05.631  android.widget.FrameLayout{32c88e4 V.E...... ......ID 0,0-1200,1752 #7f0a036a app:id/main_content}
15:58:05.631  android.widget.LinearLayout{d91d403 V.E...... ......ID 0,0-1200,1752}
15:58:05.631  android.widget.FrameLayout{3025f80 V.E...... ......ID 0,48-1200,1800 #7f0a0198 app:id/content_frame}
15:58:05.631  android.widget.LinearLayout{e1bd9b9 V.E...... ......ID 0,0-1200,1800 #7f0a0199 app:id/content_parent}
15:58:05.631  android.widget.FrameLayout{c4841fe V.E...... ......ID 0,0-1200,1800 #1020002 android:id/content}
15:58:05.631  android.widget.LinearLayout{753ad5f V.E...... ......ID 0,0-1200,1800}
15:58:05.631  DecorView@3edf3ac[Settings$FactoryResetActivity]
15:58:05.631  android.view.ViewRootImpl@f975875

5.2.establishInitialState

    void establishInitialState() {
        setUpActionBarAndTitle();
        setUpInitiateButton();
        mExternalStorageContainer = mContentView.findViewById(R.id.erase_external_container);
        mExternalStorage = mContentView.findViewById(R.id.erase_external);
        mEsimStorageContainer = mContentView.findViewById(R.id.erase_esim_container);
        mEsimStorage = mContentView.findViewById(R.id.erase_esim);
        if (mScrollView != null) {
            mScrollView.getViewTreeObserver().removeOnGlobalLayoutListener(this);
        }
        mScrollView = mContentView.findViewById(R.id.main_clear_scrollview);
        boolean isExtStorageEmulated = Environment.isExternalStorageEmulated();
        if (isExtStorageEmulated
                || (!Environment.isExternalStorageRemovable() && isExtStorageEncrypted())) {
         //外部存储器可用,隐藏相关的控件,正常都会走这儿
            mExternalStorageContainer.setVisibility(View.GONE);
            final View externalOption = mContentView.findViewById(R.id.erase_external_option_text);
            externalOption.setVisibility(View.GONE);
        //显现 music,photos,other user data 文本框
            final View externalAlsoErased = mContentView.findViewById(R.id.also_erases_external);
            externalAlsoErased.setVisibility(View.VISIBLE);
            //没有意义,容器mExternalStorageContainer都不可见了
            mExternalStorage.setChecked(!isExtStorageEmulated);
        } else {
            mExternalStorageContainer.setOnClickListener(new View.OnClickListener() {
                @Override
                public void onClick(View v) {
                //没有外部存储器,点击容器切换checkbox状况
                    mExternalStorage.toggle();
                }
            });
        }
        //是否显现wipe sim卡内容
        if (showWipeEuicc()) {
            //体系特点,默许false
            if (showWipeEuiccCheckbox()) {
                mEsimStorageContainer.setVisibility(View.VISIBLE);
                mEsimStorageContainer.setOnClickListener(new View.OnClickListener() {
                    @Override
                    public void onClick(View v) {
                        mEsimStorage.toggle();
                    }
                });
            } else {
                final View esimAlsoErased = mContentView.findViewById(R.id.also_erases_esim);
                esimAlsoErased.setVisibility(View.VISIBLE);
                final View noCancelMobilePlan = mContentView.findViewById(
                        R.id.no_cancel_mobile_plan);
                noCancelMobilePlan.setVisibility(View.VISIBLE);
                mEsimStorage.setChecked(true /* checked */);
            }
        } else {
            mEsimStorage.setChecked(false /* checked */);
        }
        final UserManager um = (UserManager) getActivity().getSystemService(Context.USER_SERVICE);
        //加载账户信息,布局里有个线性布局,这儿动态增加内容
        loadAccountList(um);
        //
        mScrollView.setOnScrollChangeListener(new OnScrollChangeListener() {
            @Override
            public void onScrollChange(View v, int scrollX, int scrollY, int oldScrollX,
                    int oldScrollY) {
                if (v instanceof ScrollView && hasReachedBottom((ScrollView) v)) {
                    mInitiateButton.setEnabled(true);
                    mScrollView.setOnScrollChangeListener(null);
                }
            }
        });
        //监听布局改变,设置那个button的状况
        mScrollView.getViewTreeObserver().addOnGlobalLayoutListener(this);
    }
    //监听如下
    public void onGlobalLayout() {
        mInitiateButton.setEnabled(hasReachedBottom(mScrollView));
    }

>1.setUpInitiateButton

    protected final Button.OnClickListener mInitiateListener = new Button.OnClickListener() {
        public void onClick(View view) {
        //demouser cod ignore..
            //有暗码的走这儿,暗码验证成功会走onActivityResult,如下
            if (runKeyguardConfirmation(KEYGUARD_REQUEST)) {
                return;
            }
            //没有暗码的走这儿
            //这个需求装备的,默许是没有装备的,回来是null
            Intent intent = getAccountConfirmationIntent();
            if (intent != null) {
                showAccountCredentialConfirmation(intent);
            } else {
            //见5.3,终究reset承认页面
                showFinalConfirmation();
            }
        }
    };

//

    void onActivityResultInternal(int requestCode, int resultCode, Intent data) {
        if (!isValidRequestCode(requestCode)) {
            return;
        }
        if (resultCode != Activity.RESULT_OK) {
            establishInitialState();
            return;
        }
        Intent intent = null;
        //暗码验证完,先判断是否有自界说账户的验证,有的话跳转到对应的页面
        if (CREDENTIAL_CONFIRM_REQUEST != requestCode
                && (intent = getAccountConfirmationIntent()) != null) {
            showAccountCredentialConfirmation(intent);
        } else {
        //没有自界说账户,直接跳到终究reset页面
        //见5.3
            showFinalConfirmation();
        }
    }

5.3.showFinalConfirmation

这个便是终究跳转的confirm页面,里面有个按钮点了便是真正的reset操作了

    void showFinalConfirmation() {
        final Bundle args = new Bundle();
        args.putBoolean(ERASE_EXTERNAL_EXTRA, mExternalStorage.isChecked());
        args.putBoolean(ERASE_ESIMS_EXTRA, mEsimStorage.isChecked());
        final Intent intent = new Intent();
        //要跳转的activity
        intent.setClass(getContext(),
                com.android.settings.Settings.FactoryResetConfirmActivity.class);
        //activity里加载的fragment
        intent.putExtra(SettingsActivity.EXTRA_SHOW_FRAGMENT, MainClearConfirm.class.getName());
        intent.putExtra(SettingsActivity.EXTRA_SHOW_FRAGMENT_ARGUMENTS, args);
        intent.putExtra(SettingsActivity.EXTRA_SHOW_FRAGMENT_TITLE_RESID,
                R.string.main_clear_confirm_title);
        intent.putExtra(MetricsFeatureProvider.EXTRA_SOURCE_METRICS_CATEGORY, getMetricsCategory());
        getContext().startActivity(intent);
    }

6.GlifLayout

external/setupdesign/main/src/com/google/android/setupdesign/GlifLayout.java

  • 这个是末节5用的根布局,自界说的帧布局,看下为啥有时候是全屏的,有时候是带边框非全屏的
  • 打印的布局结构为啥和5.1.1不一样,看下这个自界说控件是怎么替换布局的。
public class GlifLayout extends PartnerCustomizationLayout {

6.1.init

结构方法里调用,这儿便是处理第三方色彩,padding的

  private void init(AttributeSet attrs, int defStyleAttr) {
    if (isInEditMode()) {
      return;
    }
    TypedArray a =
        getContext().obtainStyledAttributes(attrs, R.styleable.SudGlifLayout, defStyleAttr, 0);
    boolean usePartnerHeavyTheme =
        a.getBoolean(R.styleable.SudGlifLayout_sudUsePartnerHeavyTheme, false);
    applyPartnerHeavyThemeResource = shouldApplyPartnerResource() && usePartnerHeavyTheme;
    //注册需求的目标
    registerMixin(HeaderMixin.class, new HeaderMixin(this, attrs, defStyleAttr));
    registerMixin(DescriptionMixin.class, new DescriptionMixin(this, attrs, defStyleAttr));
    registerMixin(IconMixin.class, new IconMixin(this, attrs, defStyleAttr));
    registerMixin(ProgressBarMixin.class, new ProgressBarMixin(this, attrs, defStyleAttr));
    registerMixin(IllustrationProgressMixin.class, new IllustrationProgressMixin(this));
    final RequireScrollMixin requireScrollMixin = new RequireScrollMixin(this);
    registerMixin(RequireScrollMixin.class, requireScrollMixin);
    //..
    ColorStateList primaryColor = a.getColorStateList(R.styleable.SudGlifLayout_sudColorPrimary);
    if (primaryColor != null) {
    //见6.5
      setPrimaryColor(primaryColor);
    }
    if (shouldApplyPartnerHeavyThemeResource()) {
    //rootView色彩设置
      updateContentBackgroundColorWithPartnerConfig();
    }
    View view = findManagedViewById(R.id.sud_layout_content);
    if (view != null) {
    //见7.2,是否运用第三方的资源
      if (shouldApplyPartnerResource()) {
      //设置第三方的padding,首要是左右padding
        LayoutStyler.applyPartnerCustomizationExtraPaddingStyle(view);
      }
      if (!(this instanceof GlifPreferenceLayout)) {
      //top padding设置
        tryApplyPartnerCustomizationContentPaddingTopStyle(view);
      }
    }
    //依据margion调整padding
    updateLandscapeMiddleHorizontalSpacing();
    //布景色彩设置,见6.5以及6.4,便是自己的第一个child的布景
    ColorStateList backgroundColor =
        a.getColorStateList(R.styleable.SudGlifLayout_sudBackgroundBaseColor);
    setBackgroundBaseColor(backgroundColor);
    //见6.5
    boolean backgroundPatterned =
        a.getBoolean(R.styleable.SudGlifLayout_sudBackgroundPatterned, true);
    setBackgroundPatterned(backgroundPatterned);
    final int stickyHeader = a.getResourceId(R.styleable.SudGlifLayout_sudStickyHeader, 0);
    if (stickyHeader != 0) {
      inflateStickyHeader(stickyHeader);
    }
    a.recycle();
  }

6.2.onInflateTemplate

这儿界说的模板layout带主题

  protected View onInflateTemplate(LayoutInflater inflater, @LayoutRes int template) {
    if (template == 0) {
    //,默许运用的模板,不同尺度指向不同的布局,详细在layout.xml里声明的,见弥补1
      template = R.layout.sud_glif_template;
    }
    return inflateTemplate(inflater, R.style.SudThemeGlif_Light, template);
  }

>1.sud_glif_template

咱们是平板,所以直接看大尺度的即可

#values
<item name="sud_glif_template" type="layout">@layout/sud_glif_template_compact</item>
#values-sw600dp
<item name="sud_glif_template" type="layout">@layout/sud_glif_template_card</item>

>2.sud_glif_template_card

上下都是比重为1的view,所以中间的控件居中显现

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:id="@+id/suc_layout_status"
    style="@style/SudGlifCardBackground"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:fitsSystemWindows="true"
    android:gravity="center_horizontal"
    android:orientation="vertical">
    <View
        android:layout_width="0dp"
        android:layout_height="0dp"
        android:layout_weight="1"
        android:visibility="invisible" />
    <com.google.android.setupdesign.view.IntrinsicSizeFrameLayout
        style="@style/SudGlifCardContainer"
        android:layout_width="@dimen/sud_glif_card_width"
        android:layout_height="wrap_content"
        android:height="@dimen/sud_glif_card_height">
        //见弥补3,分反正屏
        <include layout="@layout/sud_glif_template_content" />
    </com.google.android.setupdesign.view.IntrinsicSizeFrameLayout>
    <View
        android:layout_width="0dp"
        android:layout_height="0dp"
        android:layout_weight="1"
        android:visibility="invisible" />
</LinearLayout>

>3.横屏sud_glif_template_content

<LinearLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:id="@+id/sud_layout_template_content"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical">
    <!--header在左侧,content在右侧-->
    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="0dp"
        android:layout_weight="1"
        android:orientation="horizontal">
        <LinearLayout
            android:id="@+id/sud_landscape_header_area"
            android:layout_width="0dp"
            android:layout_height="match_parent"
            android:layout_weight="@dimen/sud_glif_land_header_area_weight"
            android:orientation="vertical">
            <ViewStub
                android:id="@+id/sud_layout_sticky_header"
                android:layout_width="match_parent"
                android:layout_height="wrap_content" />
            <com.google.android.setupdesign.view.BottomScrollView
                android:id="@+id/sud_header_scroll_view"
                android:layout_width="match_parent"
                android:layout_height="match_parent"
                android:fillViewport="true"
                android:scrollIndicators="?attr/sudScrollIndicators">
                <include layout="@layout/sud_glif_header" />
            </com.google.android.setupdesign.view.BottomScrollView>
        </LinearLayout>
        <LinearLayout
            android:id="@+id/sud_landscape_content_area"
            style="@style/SudLandContentContianerStyle"
            android:orientation="vertical">
            <com.google.android.setupdesign.view.BottomScrollView
                android:id="@+id/sud_scroll_view"
                android:layout_width="match_parent"
                android:layout_height="match_parent"
                android:fillViewport="true"
                android:scrollIndicators="?attr/sudScrollIndicators"
                android:importantForAccessibility="no">
                <LinearLayout
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:orientation="vertical">
                    <FrameLayout
                        android:id="@+id/sud_layout_content"
                        android:paddingTop="?attr/sudGlifContentPaddingTop"
                        android:layout_width="match_parent"
                        android:layout_height="0dp"
                        android:layout_weight="1" />
                    <ViewStub
                        android:id="@+id/sud_layout_illustration_progress_stub"
                        android:layout_width="wrap_content"
                        android:layout_height="wrap_content"
                        android:inflatedId="@+id/sud_layout_progress_illustration"
                        android:layout="@layout/sud_progress_illustration_layout" />
                </LinearLayout>
            </com.google.android.setupdesign.view.BottomScrollView>
        </LinearLayout>
    </LinearLayout>
    <ViewStub
        android:id="@+id/suc_layout_footer"
        android:layout_width="match_parent"
        android:layout_height="wrap_content" />
</LinearLayout>

>3.竖屏sud_glif_template_content

<LinearLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/sud_layout_template_content"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical">
    <ViewStub
        android:id="@+id/sud_layout_sticky_header"
        android:layout_width="match_parent"
        android:layout_height="wrap_content" />
    <!---->
    <com.google.android.setupdesign.view.BottomScrollView
        android:id="@+id/sud_scroll_view"
        android:layout_width="match_parent"
        android:layout_height="0dp"
        android:layout_weight="1"
        android:fillViewport="true"
        android:scrollIndicators="?attr/sudScrollIndicators"
        tools:ignore="UnusedAttribute">
    <!--header和content是垂直布局-->
        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="vertical">
            <include layout="@layout/sud_glif_header" />
            <ViewStub
                android:id="@+id/sud_layout_illustration_progress_stub"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:inflatedId="@+id/sud_layout_progress_illustration"
                android:layout="@layout/sud_progress_illustration_layout" />
            <FrameLayout
                android:id="@+id/sud_layout_content"
                android:layout_width="match_parent"
                android:layout_height="0dp"
                android:layout_weight="1" />
        </LinearLayout>
    </com.google.android.setupdesign.view.BottomScrollView>
    <ViewStub
        android:id="@+id/suc_layout_footer"
        android:layout_width="match_parent"
        android:layout_height="wrap_content" />
</LinearLayout>

6.3.findContainer

这个容器的作用:把GlifLayout里本来的内容放到这个容器里

   protected ViewGroup findContainer(int containerId) {
     if (containerId == 0) {
       containerId = R.id.sud_layout_content;
     }
     return super.findContainer(containerId);
   }

6.4.updateBackground

用到的当地见6.5

  private void updateBackground() {
  //见6.2.2布局,GlifLayout里替换的根布局便是这个
    final View patternBg = findManagedViewById(R.id.suc_layout_status);
    if (patternBg != null) {
      int backgroundColor = 0;
      if (backgroundBaseColor != null) {
        backgroundColor = backgroundBaseColor.getDefaultColor();
      } else if (primaryColor != null) {
        backgroundColor = primaryColor.getDefaultColor();
      }
      Drawable background =
          backgroundPatterned
              ? new GlifPatternDrawable(backgroundColor)
              : new ColorDrawable(backgroundColor);
      //设置statusbar布景,便是patternBg,详细能够去StatusBarMixin查看
      getMixin(StatusBarMixin.class).setStatusBarBackground(background);
    }
  }

6.5.color设置

  public void setPrimaryColor(@NonNull ColorStateList color) {
    primaryColor = color;
    updateBackground();
    getMixin(ProgressBarMixin.class).setColor(color);
  }
  public void setBackgroundBaseColor(@Nullable ColorStateList color) {
    backgroundBaseColor = color;
    updateBackground();
  }
  /**
   * Sets whether the background should be {@link GlifPatternDrawable}. If {@code false}, the
   * background will be a solid color.
   */
  public void setBackgroundPatterned(boolean patterned) {
    backgroundPatterned = patterned;
    updateBackground();
  }

7.PartnerCustomizationLayout

external/setupcompat/main/java/com/google/android/setupcompat/PartnerCustomizationLayout.java

public class PartnerCustomizationLayout extends TemplateLayout {

7.1.init

结构方法里会调用

  private void init(AttributeSet attrs, int defStyleAttr) {
    if (isInEditMode()) {
      return;
    }
    TypedArray a =
        getContext()
            .obtainStyledAttributes(
                attrs, R.styleable.SucPartnerCustomizationLayout, defStyleAttr, 0);
    boolean layoutFullscreen =
        a.getBoolean(R.styleable.SucPartnerCustomizationLayout_sucLayoutFullscreen, true);
    a.recycle();
    if (VERSION.SDK_INT >= VERSION_CODES.LOLLIPOP && layoutFullscreen) {
      setSystemUiVisibility(View.SYSTEM_UI_FLAG_LAYOUT_FULLSCREEN);
    }
    //这儿注册了3个目标
    registerMixin(
        StatusBarMixin.class, new StatusBarMixin(this, activity.getWindow(), attrs, defStyleAttr));
    registerMixin(SystemNavBarMixin.class, new SystemNavBarMixin(this, activity.getWindow()));
    registerMixin(FooterBarMixin.class, new FooterBarMixin(this, attrs, defStyleAttr));
    getMixin(SystemNavBarMixin.class).applyPartnerCustomizations(attrs, defStyleAttr);
    if (Build.VERSION.SDK_INT >= VERSION_CODES.LOLLIPOP) {
      activity.getWindow().addFlags(WindowManager.LayoutParams.FLAG_DRAWS_SYSTEM_BAR_BACKGROUNDS);
      activity.getWindow().clearFlags(WindowManager.LayoutParams.FLAG_TRANSLUCENT_STATUS);
      activity.getWindow().clearFlags(WindowManager.LayoutParams.FLAG_TRANSLUCENT_NAVIGATION);
    }
  }

7.2.shouldApplyPartnerResource

是否运用合作者的资源装备

  /** Returns if the current layout/activity applies partner customized configurations or not. */
  public boolean shouldApplyPartnerResource() {
    if (!enablePartnerResourceLoading()) {//默许为true,见弥补1
      return false;
    }
    if (!usePartnerResourceAttr) {//见7.3
      return false;
    }
    if (Build.VERSION.SDK_INT < Build.VERSION_CODES.Q) {
      return false;
    }
    if (!PartnerConfigHelper.get(getContext()).isAvailable()) {
      return false;
    }
    return true;
  }

>1.enablePartnerResourceLoading

  protected boolean enablePartnerResourceLoading() {
    return true;
  }

7.3.onBeforeTemplateInflated

  protected void onBeforeTemplateInflated(AttributeSet attrs, int defStyleAttr) {
    usePartnerResourceAttr = true;
    activity = lookupActivityFromContext(getContext());
    //是否是setup流程
    boolean isSetupFlow = WizardManagerHelper.isAnySetupWizard(activity.getIntent());
    TypedArray a =
        getContext()
            .obtainStyledAttributes(
                attrs, R.styleable.SucPartnerCustomizationLayout, defStyleAttr, 0);
//setup流程中,或者布局装备里sucUsePartnerResource为true
    usePartnerResourceAttr =
        isSetupFlow
            || a.getBoolean(R.styleable.SucPartnerCustomizationLayout_sucUsePartnerResource, true);
    useDynamicColor = a.hasValue(R.styleable.SucPartnerCustomizationLayout_sucFullDynamicColor);
    useFullDynamicColorAttr =
        a.getBoolean(R.styleable.SucPartnerCustomizationLayout_sucFullDynamicColor, false);
    a.recycle();
  }

7.4.PartnerConfigHelper.java

>1.isAvailable

bundle不为空就回来true

  public boolean isAvailable() {
    return resultBundle != null && !resultBundle.isEmpty();
  }

>2.getPartnerConfigBundle

bundle数据来历是谷歌的setupwizard的contentProvider

  private void getPartnerConfigBundle(Context context) {
    if (resultBundle == null || resultBundle.isEmpty()) {
      try {
        resultBundle =
            context
                .getContentResolver()
                .call(
                    getContentUri(),
                    SUW_GET_PARTNER_CONFIG_METHOD,
                    /* arg= */ null,
                    /* extras= */ null);
        partnerResourceCache.clear();
      }
    }
  }
public static final String SUW_GET_PARTNER_CONFIG_METHOD = "getOverlayConfig";
public static final String SUW_AUTHORITY = "com.google.android.setupwizard.partner";
  static Uri getContentUri() {
    return new Uri.Builder()
        .scheme(ContentResolver.SCHEME_CONTENT)
        .authority(SUW_AUTHORITY)
        .build();
  }

8.TemplateLayout

external/setupcompat/main/java/com/google/android/setupcompat/internal/TemplateLayout.java

public class TemplateLayout extends FrameLayout {

8.1.init

结构方法里调用

  private void init(int template, int containerId, AttributeSet attrs, int defStyleAttr) {
    final TypedArray a =
        getContext().obtainStyledAttributes(attrs, R.styleable.SucTemplateLayout, defStyleAttr, 0);
    if (template == 0) {
      template = a.getResourceId(R.styleable.SucTemplateLayout_android_layout, 0);
    }
    if (containerId == 0) {
      containerId = a.getResourceId(R.styleable.SucTemplateLayout_sucContainer, 0);
    }
    onBeforeTemplateInflated(attrs, defStyleAttr);
    inflateTemplate(template, containerId);
    a.recycle();
  }

>1.inflateTemplate

两个参数在子类都覆写了,如果为0,会给与默许值,见末节6.2,6.3

  private void inflateTemplate(int templateResource, int containerId) {
    final LayoutInflater inflater = LayoutInflater.from(getContext());
    final View templateRoot = onInflateTemplate(inflater, templateResource);
    //增加到当前容器里
    addViewInternal(templateRoot);
    //查找容器
    container = findContainer(containerId);
    if (container == null) {
      throw new IllegalArgumentException("Container cannot be null in TemplateLayout");
    }
    onTemplateInflated();
  }

依据template加载对应的布局view,子类重写了,给与默许的template,以及theme,见6.2

  protected View onInflateTemplate(LayoutInflater inflater, @LayoutRes int template) {
    return inflateTemplate(inflater, 0, template);
  }
  protected final View inflateTemplate(
      LayoutInflater inflater, @StyleRes int fallbackTheme, @LayoutRes int template) {
    if (template == 0) {
      throw new IllegalArgumentException("android:layout not specified for TemplateLayout");
    }
    if (fallbackTheme != 0) {
      inflater =
          LayoutInflater.from(new FallbackThemeWrapper(inflater.getContext(), fallbackTheme));
    }
    return inflater.inflate(template, this, false);
  }

8.2.addView

init方法里会获取container,能够看到终究的child实际加到这个容器里了,这儿完成了替换,

  public void addView(View child, int index, ViewGroup.LayoutParams params) {
    container.addView(child, index, params);
  }

8.3.mixins

  private final Map<Class<? extends Mixin>, Mixin> mixins = new HashMap<>();

>1.registerMixin

数据注册见子类末节7.1

  protected <M extends Mixin> void registerMixin(Class<M> cls, M mixin) {
    mixins.put(cls, mixin);
  }

2.getMixin

  public <M extends Mixin> M getMixin(Class<M> cls) {
    return (M) mixins.get(cls);
  }

8.4.总结

  • 末节6到8都是GlifLayout布局相关,首要学习下它是怎么替换内部child的
  • 首要便是内部自己加载了一套布局作为container,完事add到GlifLayout里,之后把FlifLayout里本来的child放到container里

9.FooterBarMixin

9.1.setPrimaryButton

  public void setPrimaryButton(FooterButton footerButton) {
    ensureOnMainThread("setPrimaryButton");
    ensureFooterInflated();
    // Setup button partner config
    FooterButtonPartnerConfig footerButtonPartnerConfig =
        new FooterButtonPartnerConfig.Builder(footerButton)
            .setPartnerTheme(
                getPartnerTheme(
                    footerButton,
                    /* defaultPartnerTheme= */ R.style.SucPartnerCustomizationButton_Primary,
                    /* buttonBackgroundColorConfig= */ PartnerConfig
                        .CONFIG_FOOTER_PRIMARY_BUTTON_BG_COLOR))
            .setButtonBackgroundConfig(PartnerConfig.CONFIG_FOOTER_PRIMARY_BUTTON_BG_COLOR)
            .setButtonDisableAlphaConfig(PartnerConfig.CONFIG_FOOTER_BUTTON_DISABLED_ALPHA)
            .setButtonDisableBackgroundConfig(PartnerConfig.CONFIG_FOOTER_BUTTON_DISABLED_BG_COLOR)
            .setButtonDisableTextColorConfig(
                PartnerConfig.CONFIG_FOOTER_PRIMARY_BUTTON_DISABLED_TEXT_COLOR)
            .setButtonIconConfig(getDrawablePartnerConfig(footerButton.getButtonType()))
            .setButtonRadiusConfig(PartnerConfig.CONFIG_FOOTER_BUTTON_RADIUS)
            .setButtonRippleColorAlphaConfig(PartnerConfig.CONFIG_FOOTER_BUTTON_RIPPLE_COLOR_ALPHA)
            .setTextColorConfig(PartnerConfig.CONFIG_FOOTER_PRIMARY_BUTTON_TEXT_COLOR)
            .setMarginStartConfig(PartnerConfig.CONFIG_FOOTER_PRIMARY_BUTTON_MARGIN_START)
            .setTextSizeConfig(PartnerConfig.CONFIG_FOOTER_BUTTON_TEXT_SIZE)
            .setButtonMinHeight(PartnerConfig.CONFIG_FOOTER_BUTTON_MIN_HEIGHT)
            .setTextTypeFaceConfig(PartnerConfig.CONFIG_FOOTER_BUTTON_FONT_FAMILY)
            .setTextStyleConfig(PartnerConfig.CONFIG_FOOTER_BUTTON_TEXT_STYLE)
            .build();
    FooterActionButton button = inflateButton(footerButton, footerButtonPartnerConfig);
    // update information for primary button. Need to update as long as the button inflated.
    primaryButtonId = button.getId();
    button.setPrimaryButtonStyle(/* isPrimaryButtonStyle= */ true);
    primaryButton = footerButton;
    primaryButtonPartnerConfigForTesting = footerButtonPartnerConfig;
    onFooterButtonInflated(button, footerBarPrimaryBackgroundColor);
    onFooterButtonApplyPartnerResource(button, footerButtonPartnerConfig);
    // Make sure the position of buttons are correctly and prevent primary button create twice or
    // more.
    repopulateButtons();
  }

9.2.inflateButton

依据footerButton的装备,生成一个FooterActionButton

  private FooterActionButton inflateButton(
      FooterButton footerButton, FooterButtonPartnerConfig footerButtonPartnerConfig) {
    FooterActionButton button =
        createThemedButton(context, footerButtonPartnerConfig.getPartnerTheme());
    if (Build.VERSION.SDK_INT >= VERSION_CODES.JELLY_BEAN_MR1) {
      button.setId(View.generateViewId());
    } else {
      button.setId(generateViewId());
    }
    // apply initial configuration into button view.
    button.setText(footerButton.getText());
    button.setOnClickListener(footerButton);
    button.setVisibility(footerButton.getVisibility());
    button.setEnabled(footerButton.isEnabled());
    button.setFooterButton(footerButton);
    footerButton.setOnButtonEventListener(createButtonEventListener(button.getId()));
    return button;
  }

9.3.onFooterButtonInflated

把按钮增加到容器里

  protected void onFooterButtonInflated(Button button, @ColorInt int defaultButtonBackgroundColor) {
    if (defaultButtonBackgroundColor != 0) {
      FooterButtonStyleUtils.updateButtonBackground(button, defaultButtonBackgroundColor);
    }
    //见弥补,看下容器哪里来的
    buttonContainer.addView(button);
    autoSetButtonBarVisibility();
  }

9.4.ensureFooterInflated

  private LinearLayout ensureFooterInflated() {
    if (buttonContainer == null) {
      if (footerStub == null) {
        throw new IllegalStateException("Footer stub is not found in this template");
      }
      //见弥补2
      buttonContainer = (LinearLayout) inflateFooter(R.layout.suc_footer_button_bar);
      onFooterBarInflated(buttonContainer);
      onFooterBarApplyPartnerResource(buttonContainer);
    }
    return buttonContainer;
  }

>1.footerStub

  public FooterBarMixin(
      TemplateLayout layout, @Nullable AttributeSet attrs, @AttrRes int defStyleAttr) {
    context = layout.getContext();
    //见6.2.3的布局结尾
    footerStub = layout.findManagedViewById(R.id.suc_layout_footer);

>2.inflateFooter

  protected View inflateFooter(@LayoutRes int footer) {
    if (Build.VERSION.SDK_INT >= VERSION_CODES.JELLY_BEAN) {
      LayoutInflater inflater =
          LayoutInflater.from(
              new ContextThemeWrapper(context, R.style.SucPartnerCustomizationButtonBar_Stackable));
      footerStub.setLayoutInflater(inflater);
    }
    footerStub.setLayoutResource(footer);
    return footerStub.inflate();
  }

9.5.autoSetButtonBarVisibility

按钮的可见性处理

  private void autoSetButtonBarVisibility() {
    Button primaryButton = getPrimaryButtonView();
    Button secondaryButton = getSecondaryButtonView();
    boolean primaryVisible = primaryButton != null && primaryButton.getVisibility() == View.VISIBLE;
    boolean secondaryVisible =
        secondaryButton != null && secondaryButton.getVisibility() == View.VISIBLE;
    if (buttonContainer != null) {
      buttonContainer.setVisibility(
          primaryVisible || secondaryVisible
              ? View.VISIBLE
              : removeFooterBarWhenEmpty ? View.GONE : View.INVISIBLE);
    }
  }
